2. Remove the rain collector cone.
3. Using a Phillips-head screwdriver, remove the three screws connecting the rain
collector base to the threaded spacers.
4. While removing the screws, support the radiation shield from the bottom. When
the screws are removed, the two bottom plates may drop.
5. Take note of the cable placement and routing so you can replace it correctly.

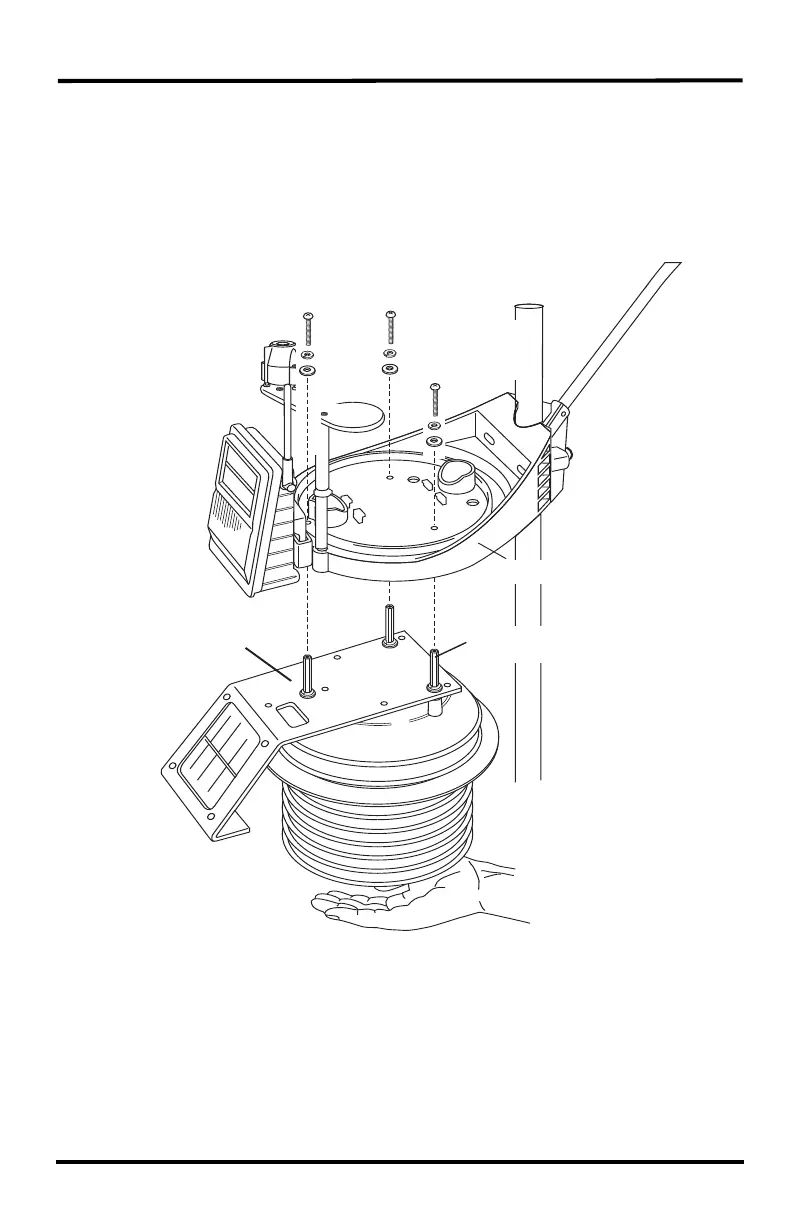

Rain Collector Base
Threaded
Spacer
Bracket
Flat Washer
1-1/4" Screw
Lock Washer
