35

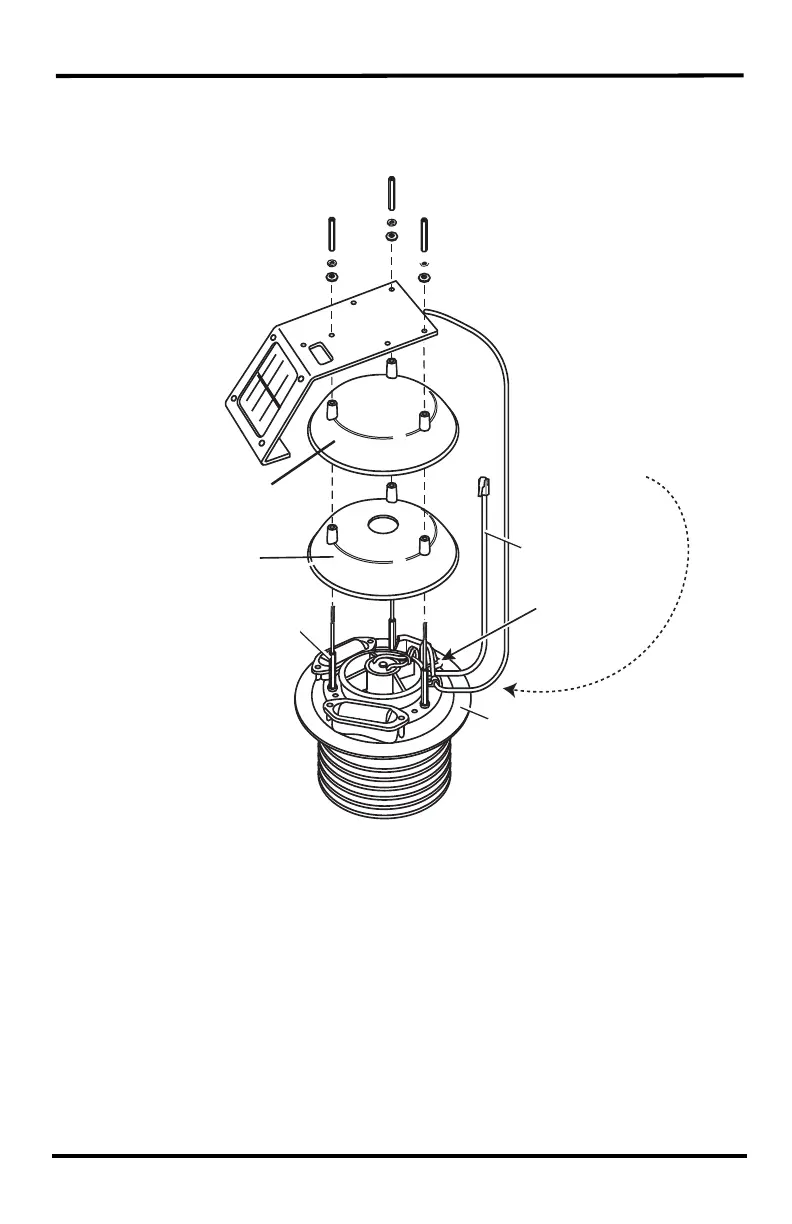

6. Unscrew the three threaded spacers holding the solar bracket and radiation
shield together and lift off the solar bracket.
7. Remove the two cap plates.
Plates
Threaded
Spacer
Lock Washer
Flat Washer
Stand-offs
Fan Plate
Temp/Humidity
Cable
Solar Panel
Cable
(Plugged into
Junction Board)
Closed Cap Plate
Open Cap Plate
(hole in center)
Solar Panel
Bracket
Junction Board
