8. Remove the white junction board cover and unplug the fan power cable from
the junction board.
9. Lift out the fan and fan and the fan deflector.

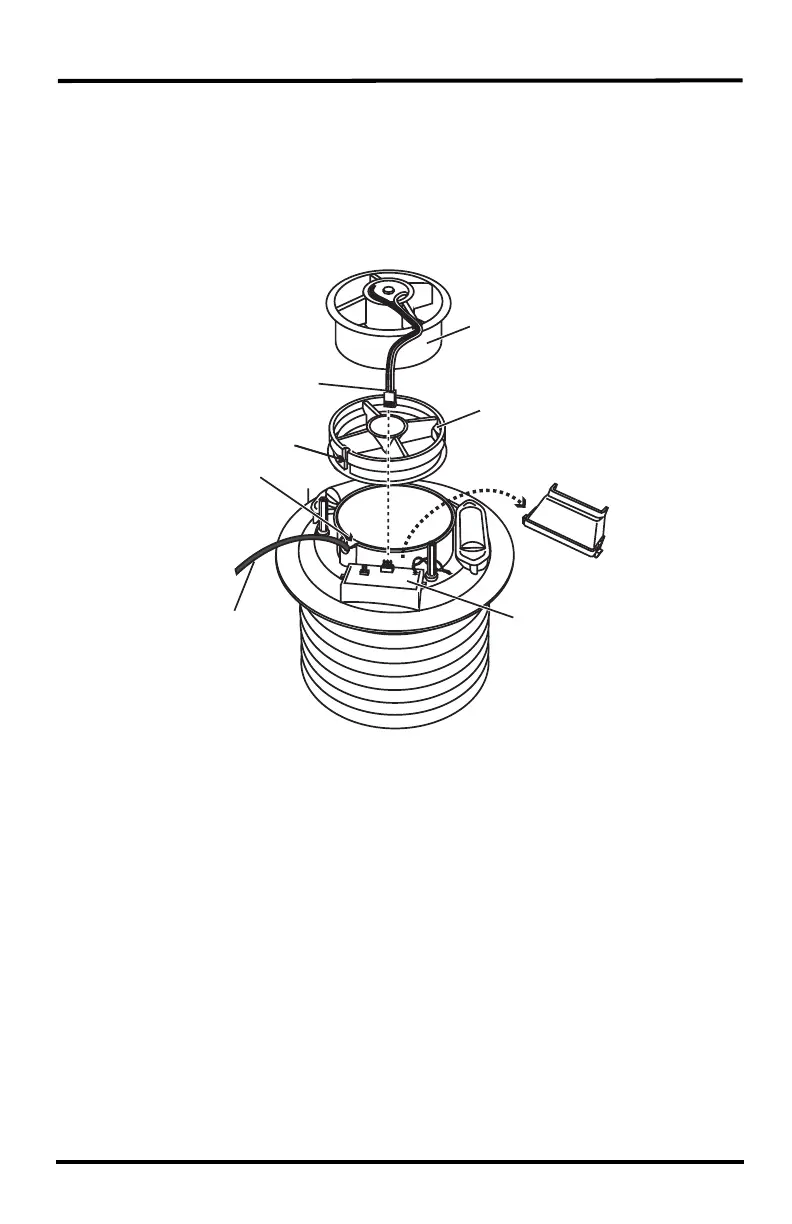

Fan Unit
Fan Deflector
Temp/Hum
Sensor Cable
Channel
Temp/Hum
Sensor Cable
Fan Unit
Fan Power
Cable
Junction Board
Cover (removed)
Junction Board
