15. Replace the two cap plates. (Note that the closed plate goes on top.) Replace the
solar bracket and the threaded spacers, with lock washers and flat washers.
16. Align the threaded spacers with the screws in the rain collector base. Note that
cables should exit from the radiation shield toward the mounting pole or post.
Screw the screws into the threaded spacers.
17. Route the temperature/humidity cable over the solar bracket and back into the
transmitter shelter. Plug it back in, then replace the foam insert snugly. Check
other sensor cables to make sure they are plugged in tightly. If you disconnected
the door’s solar panel cable, plug it back in.
18. Replace the door.

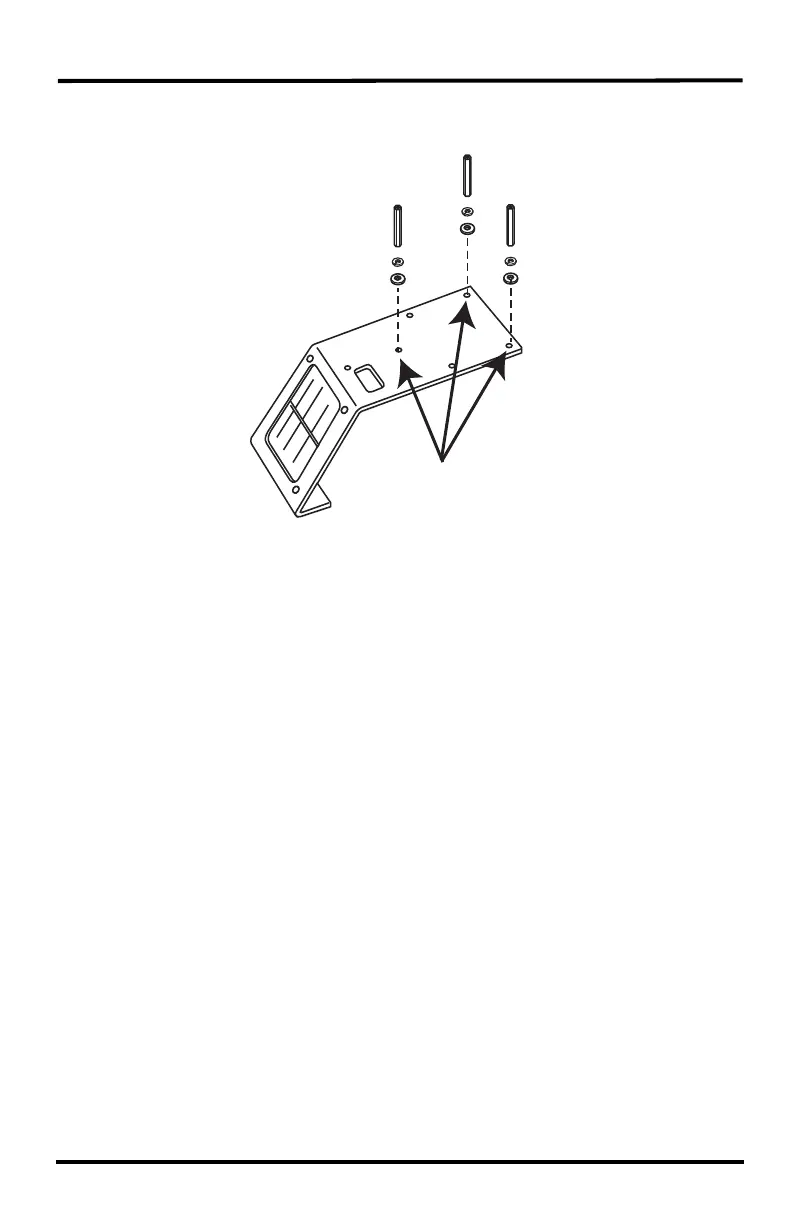

USE THESE HOLES
Threaded
Spacer
Lock Washer
Flat Washer
