DAVIS CT Series - HEI 4 PIN MODULE (DISCRETE)

30
CT Series Traction Control
www.moretraction.com

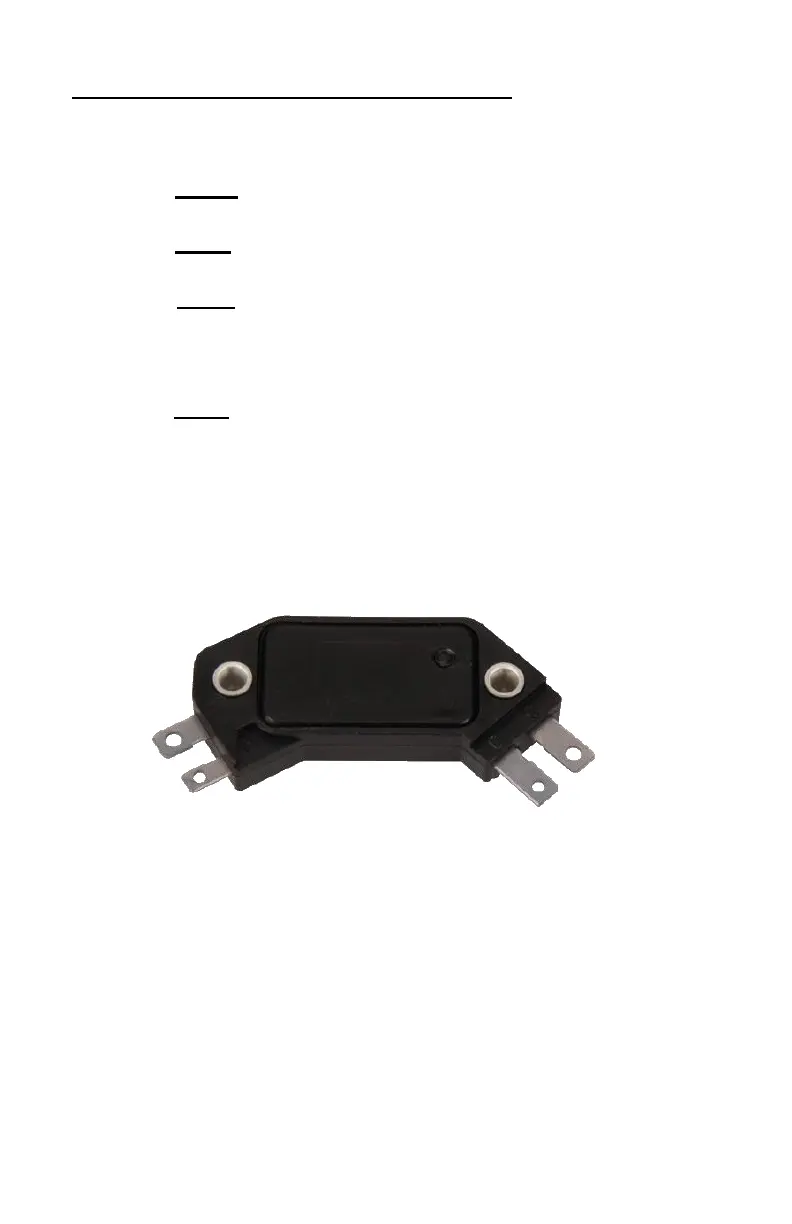

HEI 4 Pin Module (discrete)
(Set Point Output to “None”)
Connect pin 1 to 6-20v+ (Battery Positive).
Connect pin 4 to 6-20v- (Battery Ground) .
Connect pin 6 to negative pickup wire. This should
be the green wire connected to the HEI module under
the cap.
Connect pin 7 to positive pickup wire. This should be
the white wire connected to the HEI module under the
cap.
A toggle switch may be used, if desired to turn the
unit on/off.
NOTE: Contact Davis Technologies for optional
connection methods.
