CT Series Traction Control
www.moretraction.com
Appendix c
Molex® Nano-Fit® Connector
The harness is populated with the wires for the most
common installation. All other wires are included
and can be installed by the user, along with spare
pins.

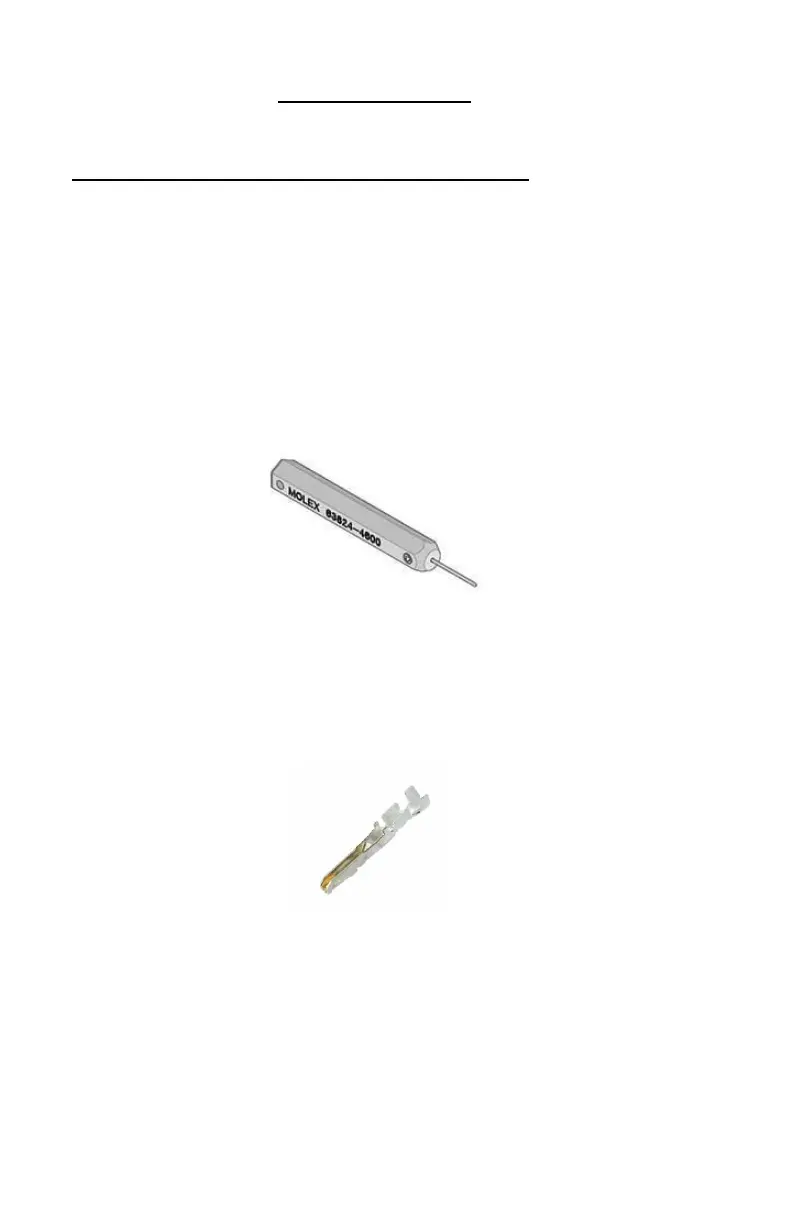

A special tool is recommended for pin removal
(Molex #63824-4600 CT15), however a .025” round
pin may work.
If pins are removed, the lock tab will need to be bent
back into place if reinstalled in the connector.
Connector is a Molex Nano-Fit , using pin number
#1053002200
Extraction Tool and replacement pins can be
obtained from Digi-Key.
Extraction Tool- WM11927-ND
Pins- WM14957CT-ND
