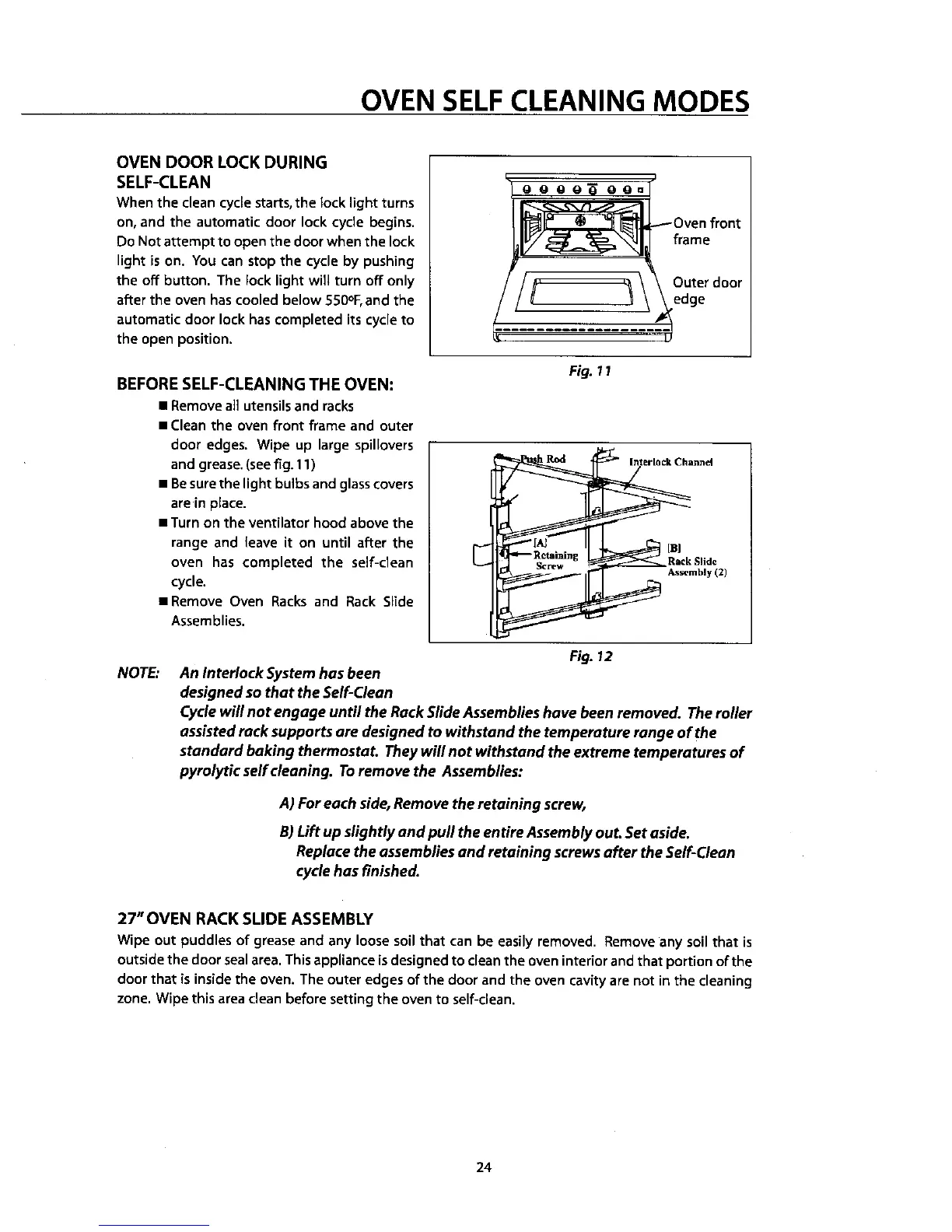

OVEN SELF CLEANING MODES
OVEN DOOR LOCK DURING
SELF-CLEAN
When the clean cycle starts,the lock light turns
on, and the automatic door lock cycle begins.
Do Not attempt to open the door when the lock
light is on. You can stop the cycle by pushing
the off button. The lock light will turn off only
after the oven has cooled below 550o1=,and the
automatic door lock has completed its cycle to
the open position.
BEFORE SELF-CLEANING THE OVEN:
• Remove all utensils and racks
• Clean the oven front frame and outer
door edges. Wipe up large spillovers
and grease. (see fig. 11)
• Besure the light bulbs and glasscovers
are in place.
• Turn on the ventilator hood above the
range and leave it on until after the
oven has completed the self-dean
cycle.
• Remove Oven Racks and Rack Slide
Assemblies.
oo0o
frame
Outerdoor
edge
Fig. 11
Interlock Channel
[e]
RackSlide
Asscmbly (2)
NOTE:
Fig. 12
An Interlock Systemhas been
designed sothat the Self-Clean
Cyclewill not engage until the RackSlideAssemblieshove been removed. The roller
assistedrack supports are designed to withstand the temperature range of the
standard baking thermostat. Theywill not withstand the extreme temperatures of
pyrolytic self cleaning. Toremove the Assemblies:
A) Foreach side, Remove the retaining screw,
B)Lift up slightly and pull the entire Assembly out. Set aside.
Replace the assembliesand retaining screwsafter the Self-Clean
cyclehas finished.
27" OVEN RACK SLIDE ASSEMBLY
Wipe out puddles of grease and any loose soil that can be easily removed. Remove any soil that is
outside the door seal area. This appliance is designed to clean the oven interior and that portion of the
door that is inside the oven. The outer edges of the door and the oven cavity are not in the cleaning
zone. Wipe this area clean before setting the oven to self-clean.
24
