9
INSTALLATION
ANTITIP INSTALLATION INSTRUCTIONS
A free standing refrigerated drawer must have an anti-tip device installed as per these instructions. If the drawer is removed
from its location for any reason, make sure that the device is properly engaged when you push the drawer back into the
original location. If device is not properly engaged, there is a risk of the drawer tipping over, causing property or personal
injury if you or a child stand, sit, or lean on an open drawer.

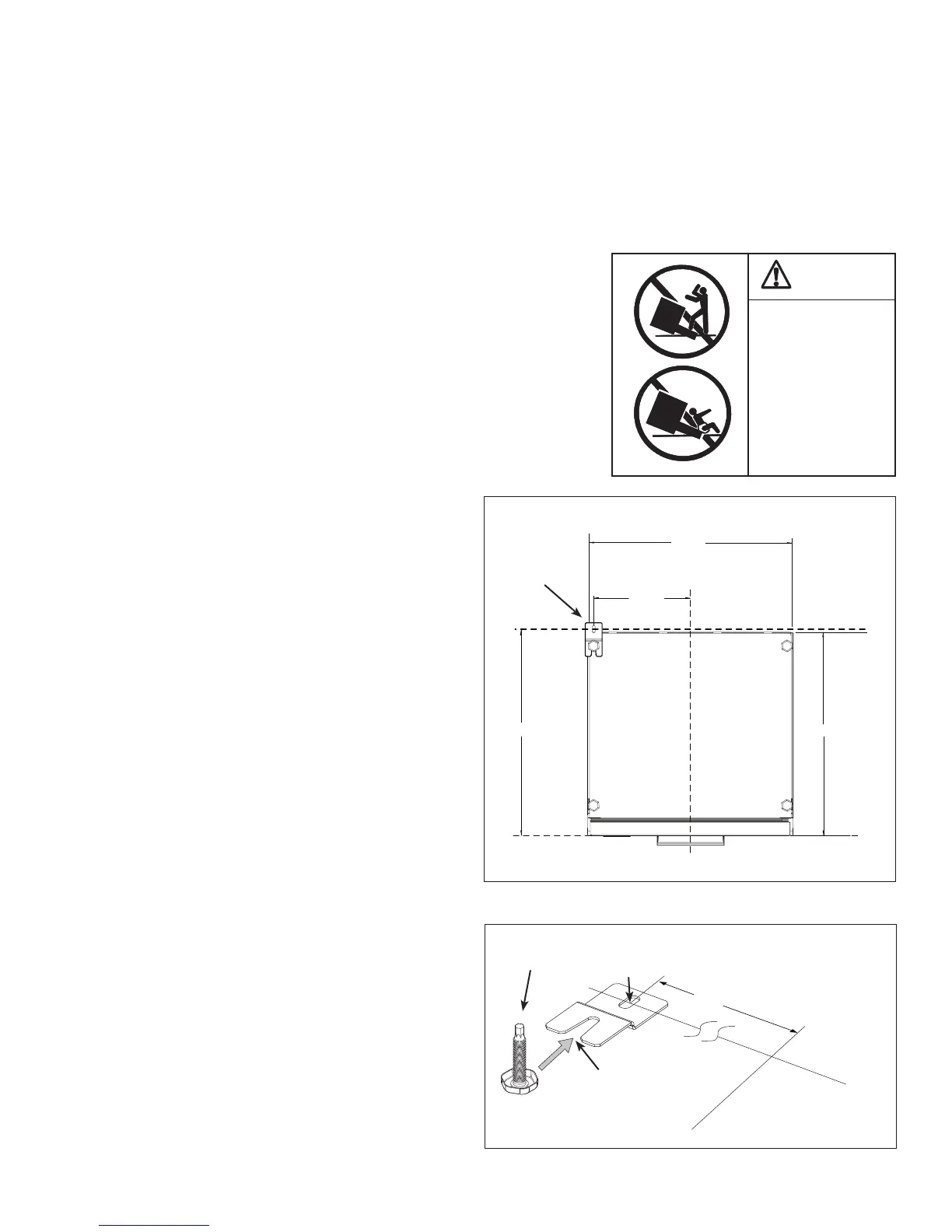

2.13 FLOOR MOUNT INSTALLATION:
The anti-tip bracket can be located on the floor in the left or right rear corner
of the refrigerated drawer.
Step by step instructions for locating the position of the bracket:
1. Decide where you want to place the Drawer. Make a temporary line on
the floor in line with the drawer face, “A” as shown in Figure 06.
2. At the center point where the drawer will be, draw a center line “B”
(Fig. 2.7) perpendicular to line “A” to the rear of the unit. Make a mark
on line “B “ 24-1/2 inches from line “A”.
3. Then make another perpendicular line “C”at this mark.
Make a mark on line “C” 11-1/2 inches from line “B”
either right or left.
4. At this mark, drill 1/8” diameter pilot hole in the floor.
5. Fasten the bracket to the floor thru the slotted hole (see
Fig. 2.8) using the appropriate fasteners for the type of
floor.
6. Position the unit so that the leveling leg engages into the
anti-tip bracket (Fig. 2.8).
7. Check for proper installation of the drawer and anti-tip
device by grasping the back of the unit and carefully
attempting to tilt the drawer forward.
WARNING
• ALL DRAWERS CAN TIP
• INJURY COULD RESULT
• INSTALL ANTI-TIP
BRACKET PACKED
WITH UNIT
• SEE INSTRUCTIONS
11-1/2”
24-1/2”
23-7/8”
Center line
24”
11-1/2”
C
E
NT
ER
L
IN
E
PE
R
P
E
ND
I
C
ULA
R L
I
NE
BOTTOM VIEW OF DRAWER
Front
Refrigerated
Drawer
Anti-tip
Bracket
A
B
B
C
Leveling Leg
Slotted hole
for floor
installation
Open slot
Figure 2.7
Figure 2.8
