7.5 HEATER STRIP
The refrigerated drawers ship from the factory with the heater strip unplugged. If the drawers develop condensation on the
divider, the heater option can be turned on to stop this from happening.
Turning on the Heater Strip:
Remove the front grill.1.
Connect the red and orange wire connectors (in the lower right hand side) together.2.
Reinstall the front grill.3.
Turning o the Heater Strip:
Reverse the turn on procedure above to turn o the heater strip.
7.6 CIRCULATION FAN ASSEMBLY
The circulation fan moves air within the entire cabinet across the evaporator to maintain the proper set temperature zones. The
fan is located behind the evaporator plate on the back wall.
To remove the circulation fan, remove both drawers. Remove the screws holding the evaporator and gently rotate out of the way
to gain access to the fan assembly. The fan is secured to the back wall with double sided tape.
INTERIOR COMPONENTS

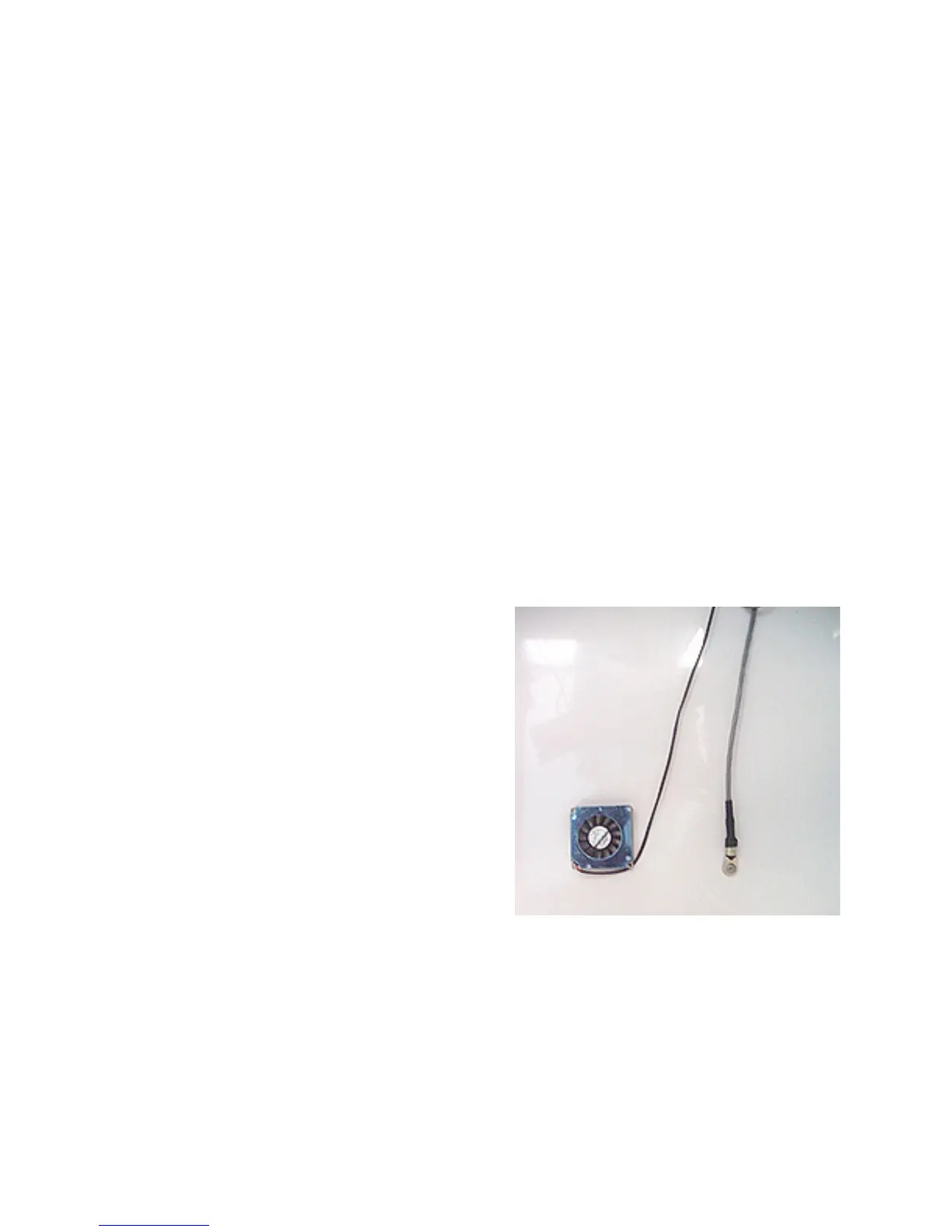

Figure 7.1
