INSTALLATION
HOW TO INSTALL YOUR OUTDOOR REFRIGERATED DRAWER
2.6 ELECTRICAL CONNECTION
Check serial plate for correct power supply. Use only electrical power supply as specified on your appliance serial
nameplate. Do not use an extension cord!
WARNING!
Do not splash or spray water from a hose onto the refrigerated drawer!
Doing so may cause an electrical shock, which may result in severe injury or death.
2.7 GROUNDING METHOD
This product is factory equipped with a power supply cord that has a three-pronged grounded plug. It must be plugged
into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and
ordinances. If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer
to exchange the existing receptacle in accordance with the National Electrical Code and applicable local codes and
ordinances. The third ground prong should not, under any circumstances, be cut or removed. All UL listed refrigerated
products are equipped with this type of plug.
A ground fault circuit interrupter (GFI) electrical receptacle is to be used to supply electrical power to the refrigerated drawer
for outdoor applications. Contact an electrician if you need to install one to supply electrical power to your outdoor refriger-
ated drawer.
2.8 POWER REQUIREMENTS
24” Outdoor Refrigerated Drawer
120V 60Hz •
1800 watt •
3 wire outlet •
15 amp circuit •
AC Interface
Grounding Type
Wall Receptacle
Power Supply Cord
with 3-Prong
Grounding
Plug
NOTE: the plug show is for 120V units

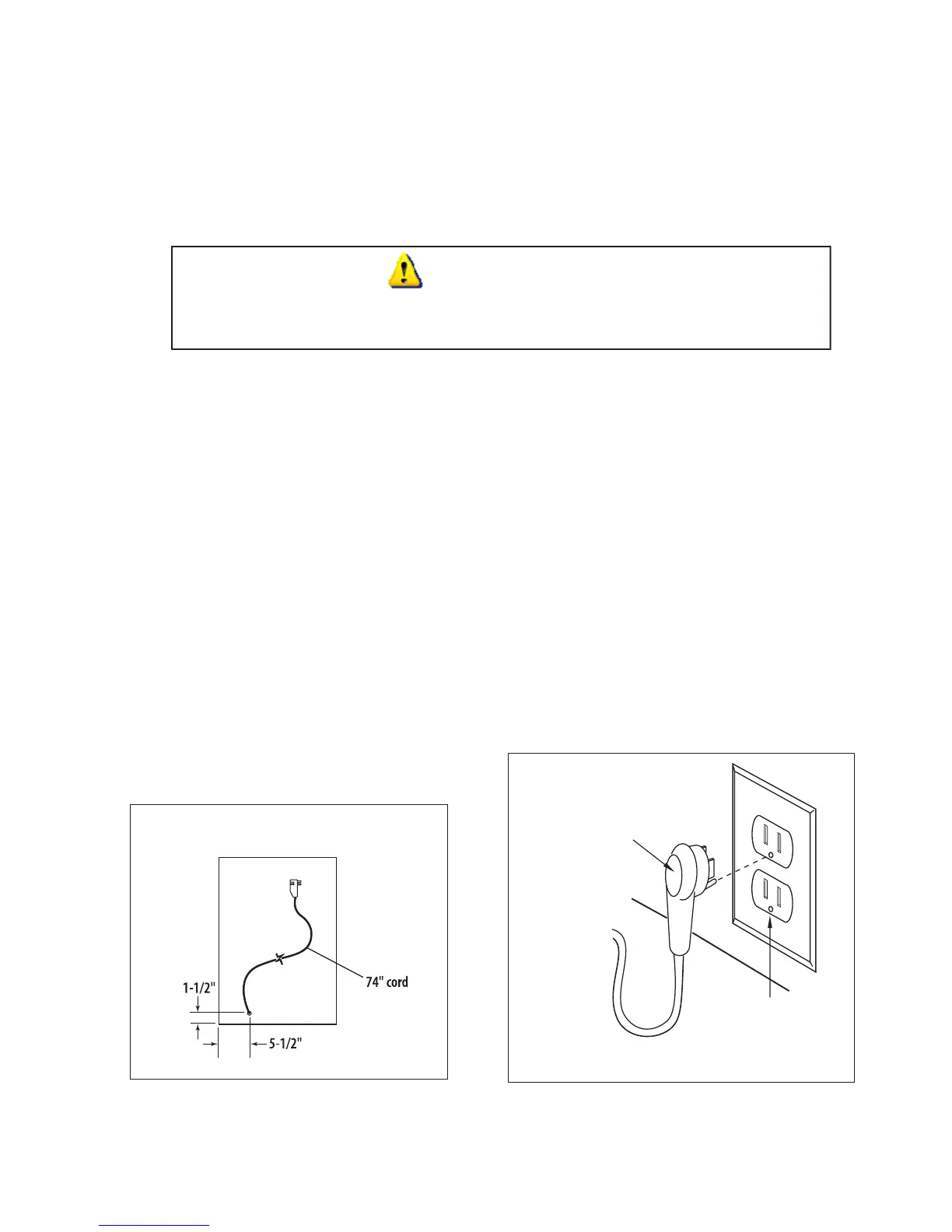

Figure 2.2 Figure 2.3
To Next Page
