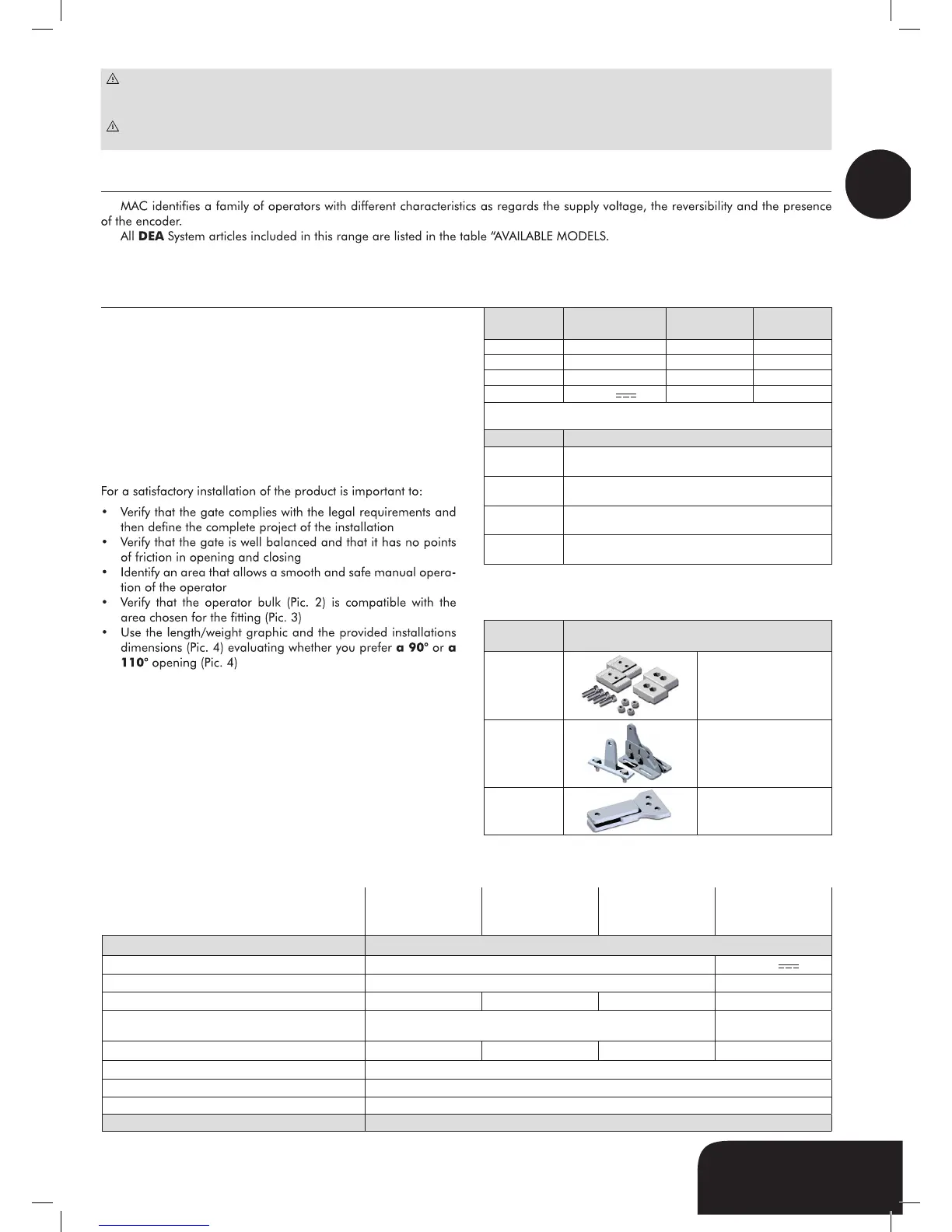

M A C
EN
7
WARNING Incorrect assessment of the impact forces can cause serious damage to people, animals or things. DEA System re-
minds the installer must verify that the impact forces, measured as indicated by the standard EN 12445, are actually below the limits
set by the standard EN12453.
WARNING Any external security devices used for compliance with the limits of impact forces must be conform to standard
EN12978.
3 MODELS AND CONTENTS OF THE PACKAGE
MAC identifies a family of operators with different characteristics as regards the supply voltage, the reversibility and the presence
of the encoder.
All DEA System articles included in this range are listed in the table “AVAILABLE MODELS.
Inspect the “Contents of the package” (Pic. 1) comparing it with your product, for useful reference during assembly.
4 OPERATING INSTRUCTIONS
4.1 Technical data
See “TECHNICAL DATA ” table
4.2 Transport
MAC is always delivered packed in boxes that provide ade-
quate protection to the product, however, pay attention to all in-
formation that may be provided on the same box for storage and
handling.
4.3 Installation and assembly
For a satisfactory installation of the product is important to:
•Verify that the gate complies with the legal requirements and
then define the complete project of the installation;
•Verify that the gate is well balanced and that it has no points
of friction in opening and closing;
•Identify an area that allows a smooth and safe manual opera-
tion of the operator;
•Verify that the operator bulk (Pic. 2) is compatible with the
area chosen for the fitting (Pic. 3);
•Use the length/weight graphic and the provided installations
dimensions (Pic. 4) evaluating whether you prefer a 90° or a
110° opening (Pic. 4).
“TECHNICAL DATA” Table MAC MAC/R MAC/EN MAC/24
Single-phase power supply voltage (V) 230 V ~ ±10% (50/60 Hz)
Motor power supply voltage (V)
230 V ~
24 V
Absorbtion (W) 300 60
Built-in capacitor (µF) 8 10 8 -
Work cycle
16s-1s-16s x 6 TIMES
30min PAUSE
3,5 min TIMES
7min PAUSE
Thrust force (N)
1650
1200
1650 1000
Max. stroke (mm) 334
Weight of product with packaging (kg) 8,8
Operating temperature range (°C)
-20 ÷ 40
Degree of protection
IP 24
“PRODUCT ACCESSORIES” Table
Article
Code
Description
MAC/FM
Mechanical stops
for MAC
MAC/SFR
Adjustable rear
fastening support for
MAC
MAC-MAC/P
Extension for MAC
and MAC rams
“AVAILABLE MODELS” Table
Article
Motor power
supply
Reversible Encoder
MAC 230 V ~ NO NO
MAC/EN 230 V ~ NO YES
MAC/R * 230 V ~ YES NO
MAC/24
24 V
NO NO
* Models for which it is necessary to use the apposite electrical lock to stop
the gate in its closing position.
Article
Description
KIT MAC
-N°2 MAC operators
-Preset accessories
KIT MAC/EN
-N°2 MAC/EN operators
-Preset accessories
KIT MAC/R
-N°2 MAC/R operators
-Preset accessories
KIT MAC/24
-N°2 MAC/24 operators
-Preset accessories
