Dea NET230N User Manual

40

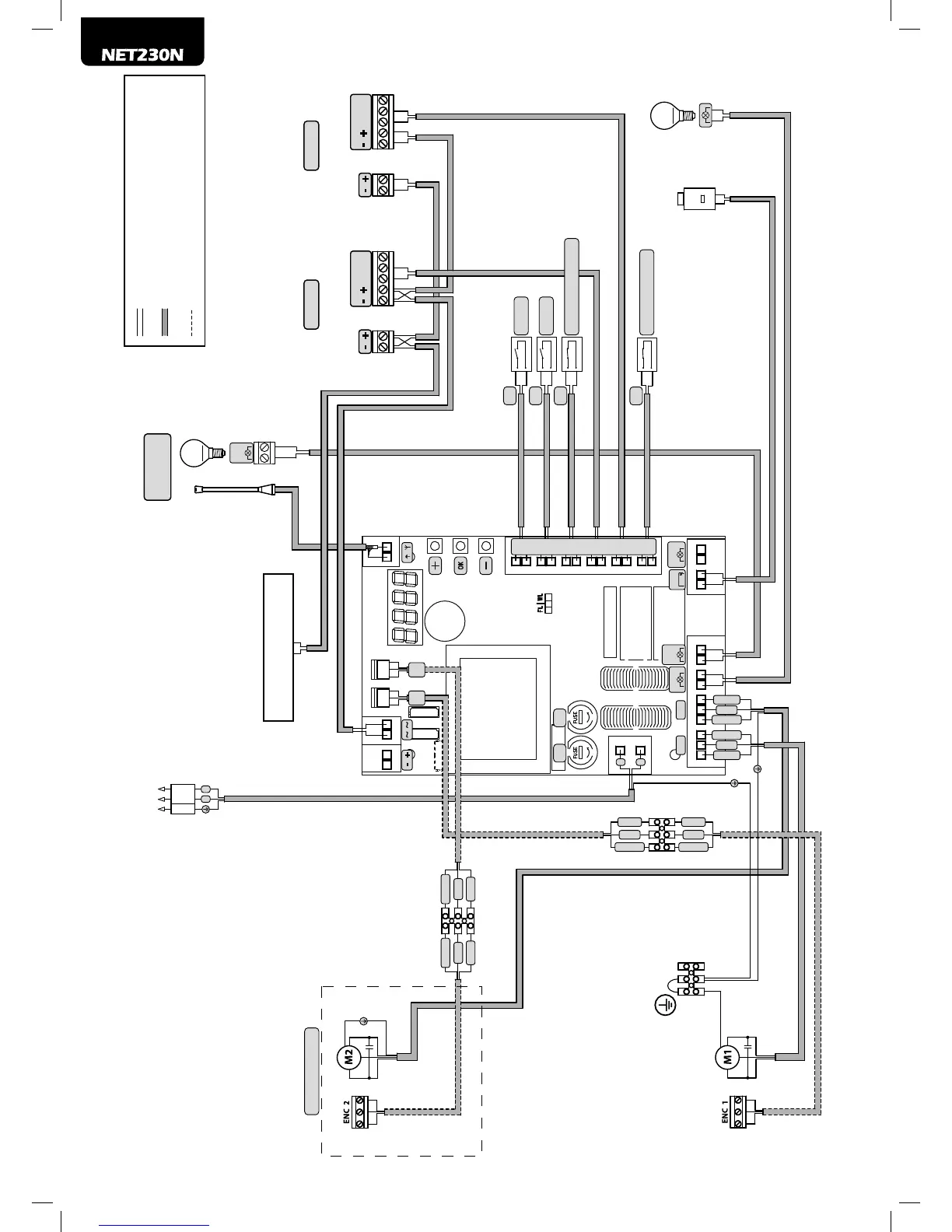

Wiring diagram for TYPE 01 (swing gate)
2 1
9 10 11 12
13 14
15 16
17 18 19 20 21 22 23 24 25 26 27 28
30 2932 31
3 4 5 6 7 8
WARNING
LOCK
F2F1
FLASH
230V
MOT 1 MOT 2
34 33
WL/FL24V
2 x 0,5 mm
2
To terminal 31/32 for normal connection
To terminal 33/34 for controlled safety devices
N.O. N.O.
RG58
ENC
M2
ENC
M1
N.C.
START
PED
TX RX
COM
N.C.
N.O.
TX RX
PHOTO 2PHOTO 1
2 x 1 mm
2
2 x 1 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
4 x 1,5 mm
2
4 x 1,5 mm
2
3 x 0,22 mm
2
N.C.
2 x 0,5 mm
2
F
N
F
N
3 x 1,5 mm
2
3 x 0,22 mm
2
LED230AI
max 40W
FLASH
230V
COM
N.C.
N.O.
2 x 0,5 mm
2
ENCODER WIRING ONLY IF PRESENT INTERNAL WIRING SET BY THE FACTORY EXTERNAL WIRING SET BY THE INSTALLER
SAFETY (Only if needed)
Mot 2 (Only if present)
OPEN GATE WARNING LIGHT
230V max 150W
ELECTRIC-LOCK
art.110
STOP (Only if needed)
BROWN
WHITE
GREEN
BROWN
BLACK
GRAY
BROWN
BLACK
GRAY
OMNIPOLAR CIRCUIT BRAKER
POWER SUPPLY
230V~ 50Hz ±10%
BROWN
WHITE
GREEN
BROWN
WHITE
GREEN
BROWN
WHITE
GREEN
COM
IN_1
COM
IN_2
COM
IN_3
COM
IN_4
COM
IN_5
COM
IN_6
