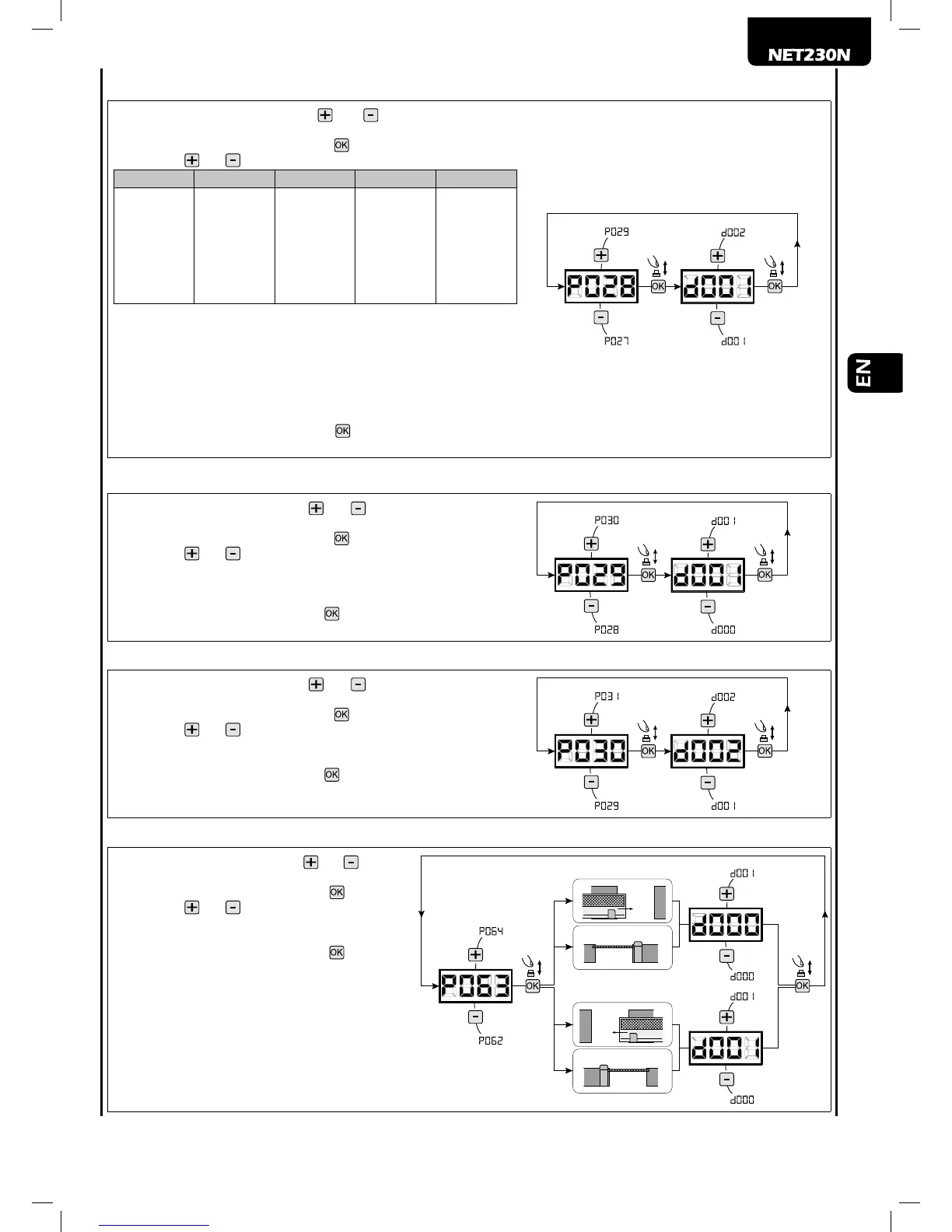

Dea NET230N - Selection Type of Operators; Selection Operating With or Without Encoder; Selection 1 or 2 Operators Functioning; Selection of Direction of Motion

45
3 Selection type of operators ! IMPORTANT !
1. Scroll down the parameters with and keys until you visualise
P028;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
Type 00 Type 01 Type 02 Type 03 Type 04
• 005 6NET
• 006 9NET
• 007 Gulliver
- Rev
• 001 Look - Mac
- Sting
• 002 Ghost
• 003 Livi 500
- 500MT - 502 -
502EN - 550PL
• 004 Livi 500P -
500MT/RF - 502R
- 502R/EN - 502L
• 005 Oli
• 003 Livi 902EN
• 004 Livi 902R -
902R/EN/F
• 003 Pass
• 004 Stop
• 000 Lato
Warning: Selecting the OLI operators, all indicated values related to the
operator force (P037 - P038 - P039 - P040), are automatically set to 100%
without any possibility of change. For this type of operator, the obstacle de-
tection is not active and the adjustment of the thrust force can be executed
acting on the operator valves only.
Warning: If you are using non DEA System operators, set the parameter on
the closer value for family type and performances (refer to table on page 35).
4. Conrm your choice by pressing the
key (display returns again to
P028).
4 Selection operating with or without encoder ! IMPORTANT !
1. Scroll down the parameters with and keys until you visualise
P029;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
- d000=for operators with encoder;
- d001=for operators without encoder (Slow down is activated);
- d002=for operators without encoder (Slow down not activated);
4. Conrm your choice by pressing the key (display returns again to
P029).
5 Selection 1 or 2 operators functioning
1. Scroll down the parameters with and keys until you visualise
P030;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
- d001=for a single motor operating;
- d002=for 2 motors operating;
4. Conrm your choice by pressing the key (display returns again to
P030).
6 Selection of direction of motion (only Type 00 and Type 03)
1. Scroll down the parameters with and keys until
you visualise P063;
2. Access the parameter by pressing the key;
3. Acting on and keys, set:
- d000=motor in standard position;
- d001=motor in inverted position;
4. Conrm your choice by pressing the key (display
returns again to P063).
Warning: The parameter automatically reverses the
motors output open/close.
Warning: Changing this parameter you need to change
the parameters for the opening and closing limit switches.
