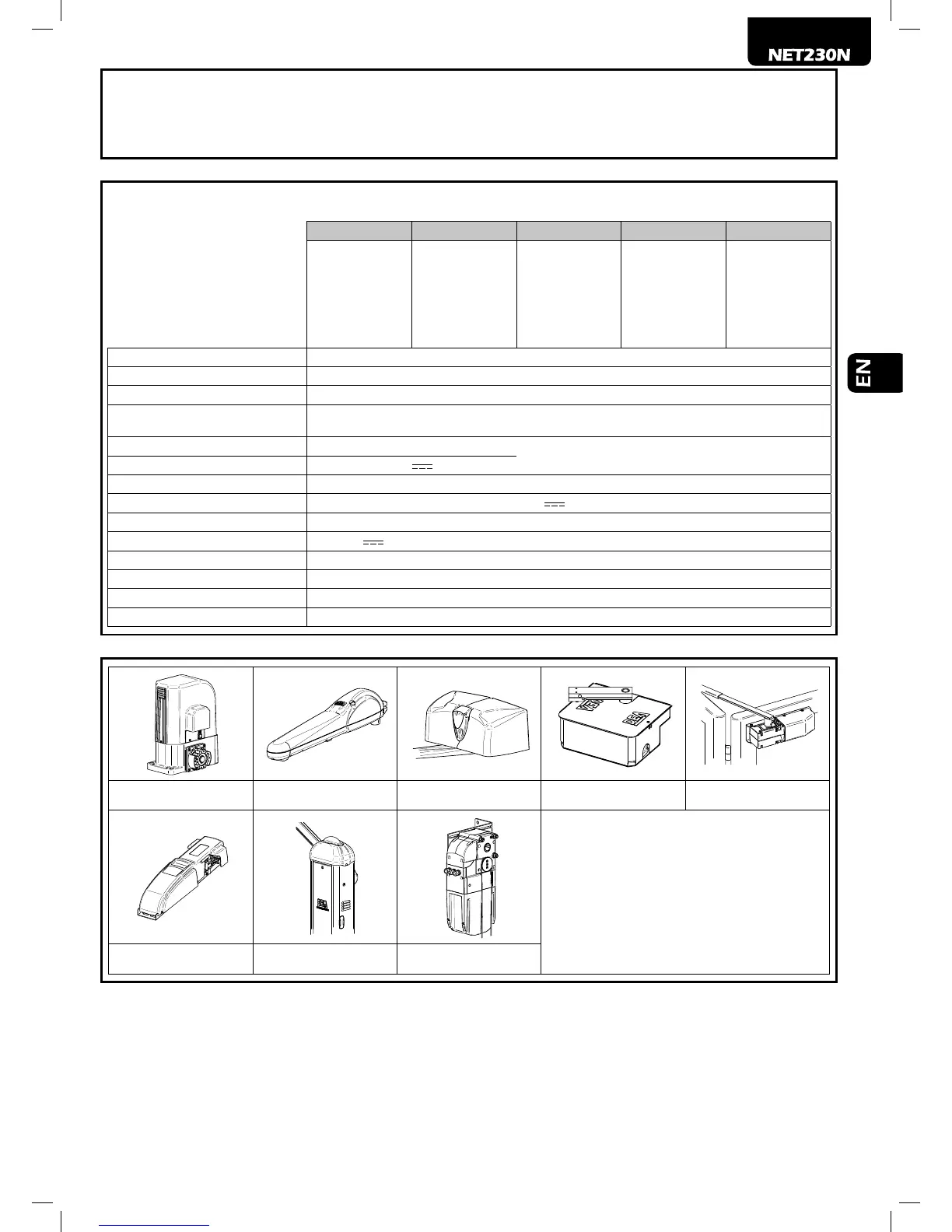

2 PRODUCT DESCRIPTION
NET230N is a universal control panel for DEA System 1 or 2 230V operators automations with or without encoder.
The main feature of this control board is its ease of conguration of inputs and outputs according to any needs thus ensuring adapta-
bility to any type of automation. It is therefore easy to set up and exclude all unnecessary functions.
3 TECHNICAL DATA
TYPE 00 TYPE 01 TYPE 02 TYPE 03 TYPE 04
LIVI 6NET
LIVI 9NET
GULLIVER
REV
GHOST 100 / 200
LOOK - MAC
OLI
LIVI 500P
LIVI 502 (R/EN)
550PL
LIVI 902
(R/EN/F)
PASS
STOP
LATO 220
Power supply (V) 230 V ~ ±10% (50/60 Hz)
Fuse F2 (A) 5A
Fuse F1 (A) 160mA
Outputs 230V motors
(maximum output current) (W)
2 x 500W (or 1 x 600W)
Auxiliaries power supply output 24 V ~
(24V_AUX + 24V_ST = max 200mA)
Safety devices power supply output 24V
“Warning” output 230 V ~ max 150W
Electric lock output max 1 art. 110 or 24V
output max 5W congurable
230V Flashing light output 230 V ~ max 40W
24V Flashing light output 24 V
max 100mA (for led ashing light) art. LED24AI or open gate warning light/courtesy light
Operating temperature range (°C) -20÷50 °C
Receiver frequency 433,92 MHz
Transmitters type of coding HCS x-code - HCS rolling code - Dip-switch
Max remote controllers managed 100
Livi 6NET - Livi 9NET
REV - Gulliver
Look - Mac - Sting - Oli
Livi 500 (R/EN)
Livi 502 (R/EN)
Ghost 100 - Ghost 200 Livi 550PL
* If you are not using DEA operators, set the parame-
ter “Selection type of operator” to the closer value as
family type and performances
Livi 902 (R/EN/F) Pass - Stop LATO 220

Dea NET230N Specifications

General

Brand	Dea
Model	NET230N
Category	Controller
Language	English
