Dectron DS Series Installation Manual

G – Piping Connection
April, 2018 G-4 INM.XX.X.00

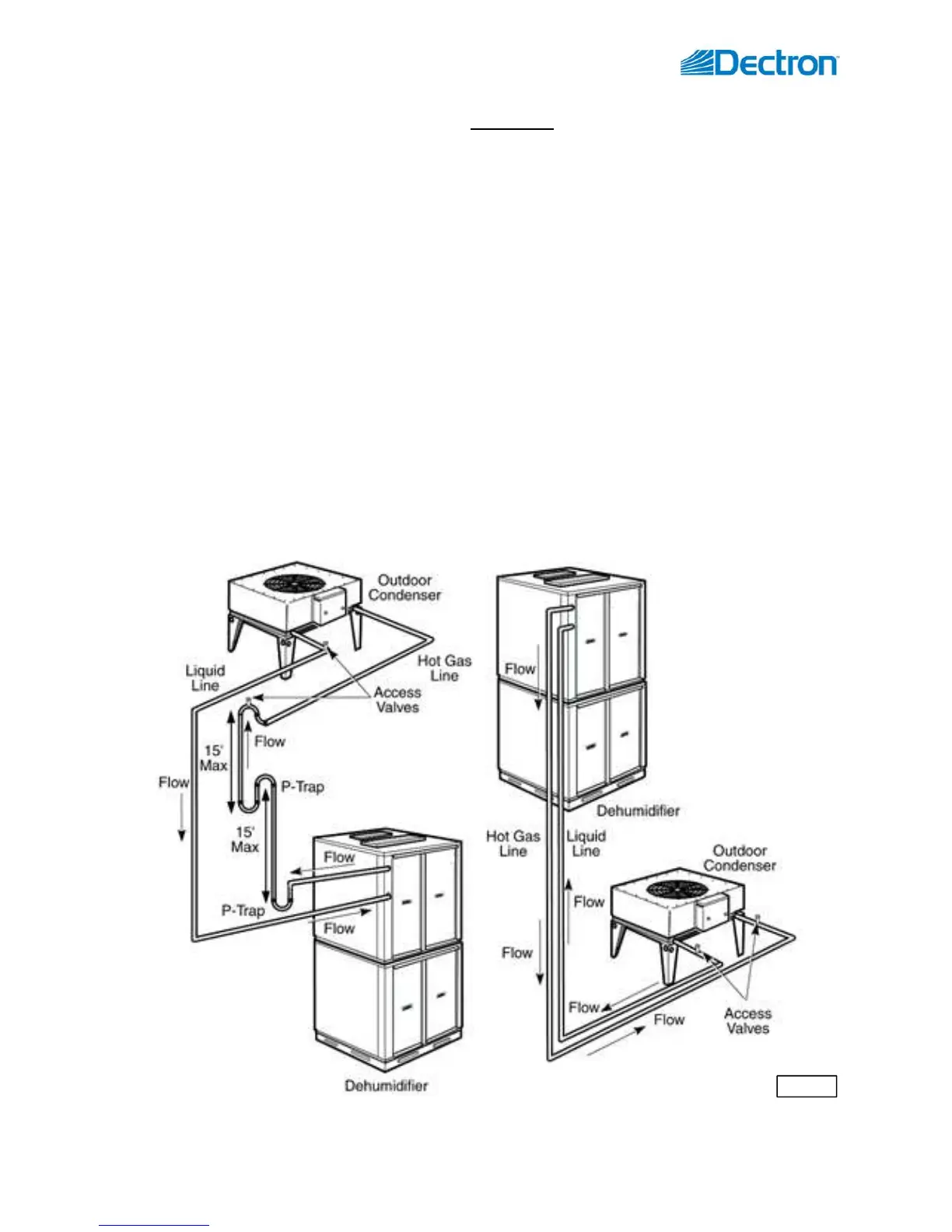

NOTE: The piping schematics shown on Pic. G.4, are example only - the design, provision, and installation of
actual condenser line set is not Dectron’s responsibility and is to be done by a third party.
Pressure Testing, Evacuating and Charging
 Use proper field practices when pressure testing, evacuating, and charging the system.
 Pressure-test line set and condenser – refer to the dehumidifier main label for operating pressure level.
o Use only dry nitrogen for pressure testing!
o Condenser is typically shipped with some nitrogen holding charge (approx. 5-15 psi). Absence of
holding charge does not necessarily indicate a leak/shipping damage, however it’s recommended to
leak test condenser prior/separately.
o Ensure that dehumidifier isolating ball valves stay close during pressure test and evacuation.
 Evacuate line set and condenser – ensure that vacuum of 250 microns (min) is achieved and held for 30 min.
 Charge the condenser and line set with proper amount of proper refrigerant.
o Refer to dehumidifier main label for refrigerant type and field charge. Ensure proper amount is added.
o Use ball valve access port(s) or additionally installed access port(s) on the line set for charging.
o Charge with liquid refrigerant ONLY! Once proper refrigerant amount (“field charge”) is added to the
line set and condenser – open dehumidifier isolating ball valves to allow for refrigerant flow.
Pic.G.4
