Definox DCX3 User Manual

MAINTENANCE NOTICE
NM-230 index 18 Page 13/55 September 2020
4.7 SETTING THE VALVE REGULATOR OPERATION
• Press once on the button on the right of the box’s display to put it in auto mode (the yellow
light flashes).
• Hold down the button on the right of the display for five seconds to access the main menu.
• Select the ACTFUNC function using the arrows, confirm with the button on the right and select
the FUNCSNGL function. Then confirm.
• Select INPUT and confirm. Then choose 4’20A and confirm.
• Select X.TUNE and hold down the button on the right for five seconds.
• X.TUNE X then searches for and adjusts its position. The yellow light flashes rapidly.
• When TUNE END appears, confirm. Select END (KXX.) and then confirm.

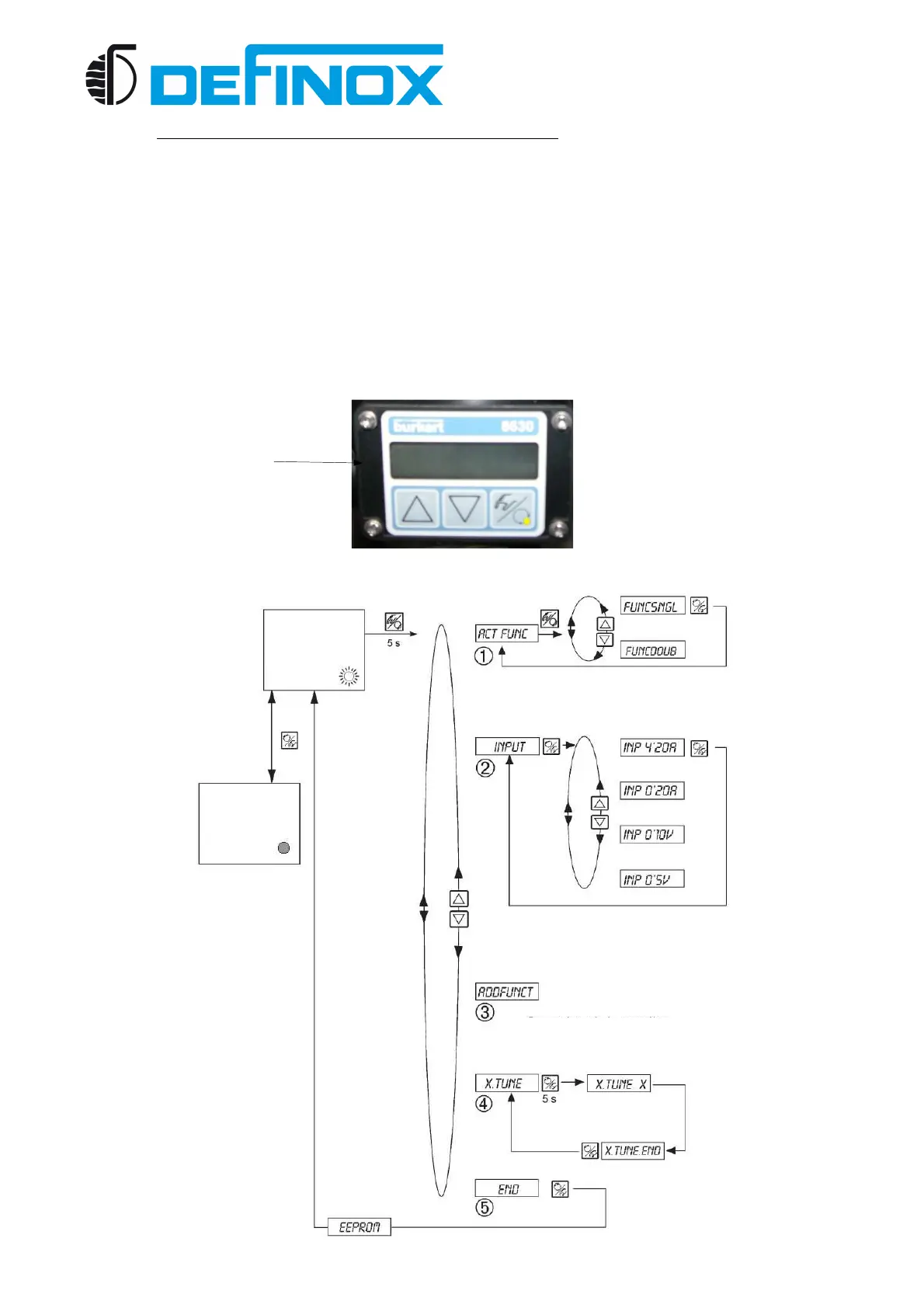

AUTOMATIC
service mode
MANUAL
service mode
skip for the first
commissioning
8630 positioner
display
