Definox DCX3 User Manual

MAINTENANCE NOTICE
NM-230 index 18 Page 18/55 September 2020
5.2 REASSEMBLING THE 8693 UNIT
• Screw the linking rod by putting a drop of LOCTITE 222 threadlocker on the thread.
• Refit the base using the 2 screws H (ref: 7006729).
• Attach the control pin on the linking rod.
• Lock the housing on the base by using the locking screws taking care not to damage the seals
of the base and the control pin.
• Fit the connector depending on whether the actuator is NC or NO onto the base.

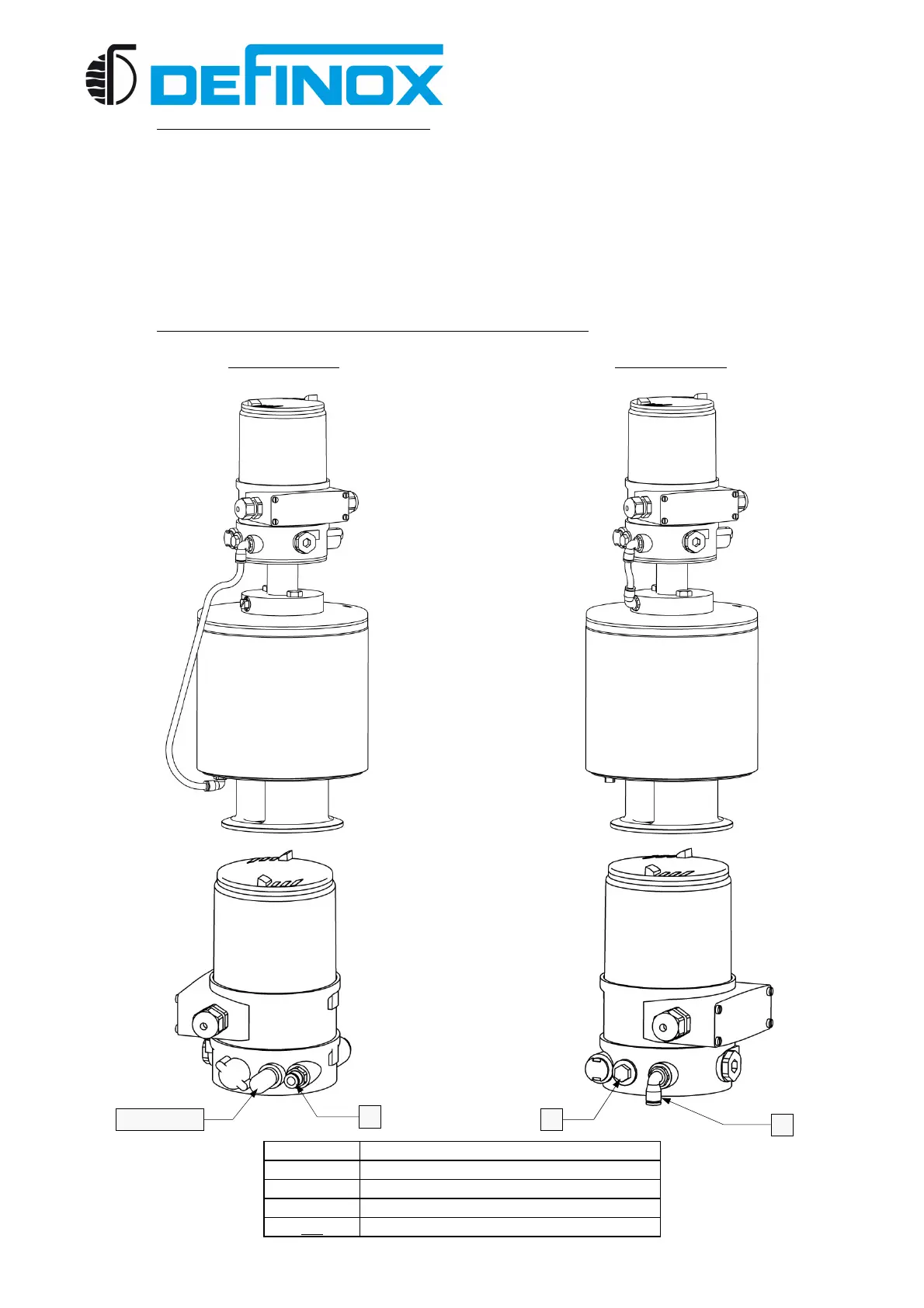

5.3 CONNECTING THE AIR SUPPLY TO THE 8693 UNIT
NC assembly
NO
assembly
C
onnector
Designation
1 Supply air
3 Escapement with silencer
2.1 Air outlet to the control valve
2.2 Stopper
28
59
56
Silencer
2.1
2.2
3
1
