MAINTENANCE NOT
ICE
NM-230
index 18
Page 14/55
September 2020
4.8

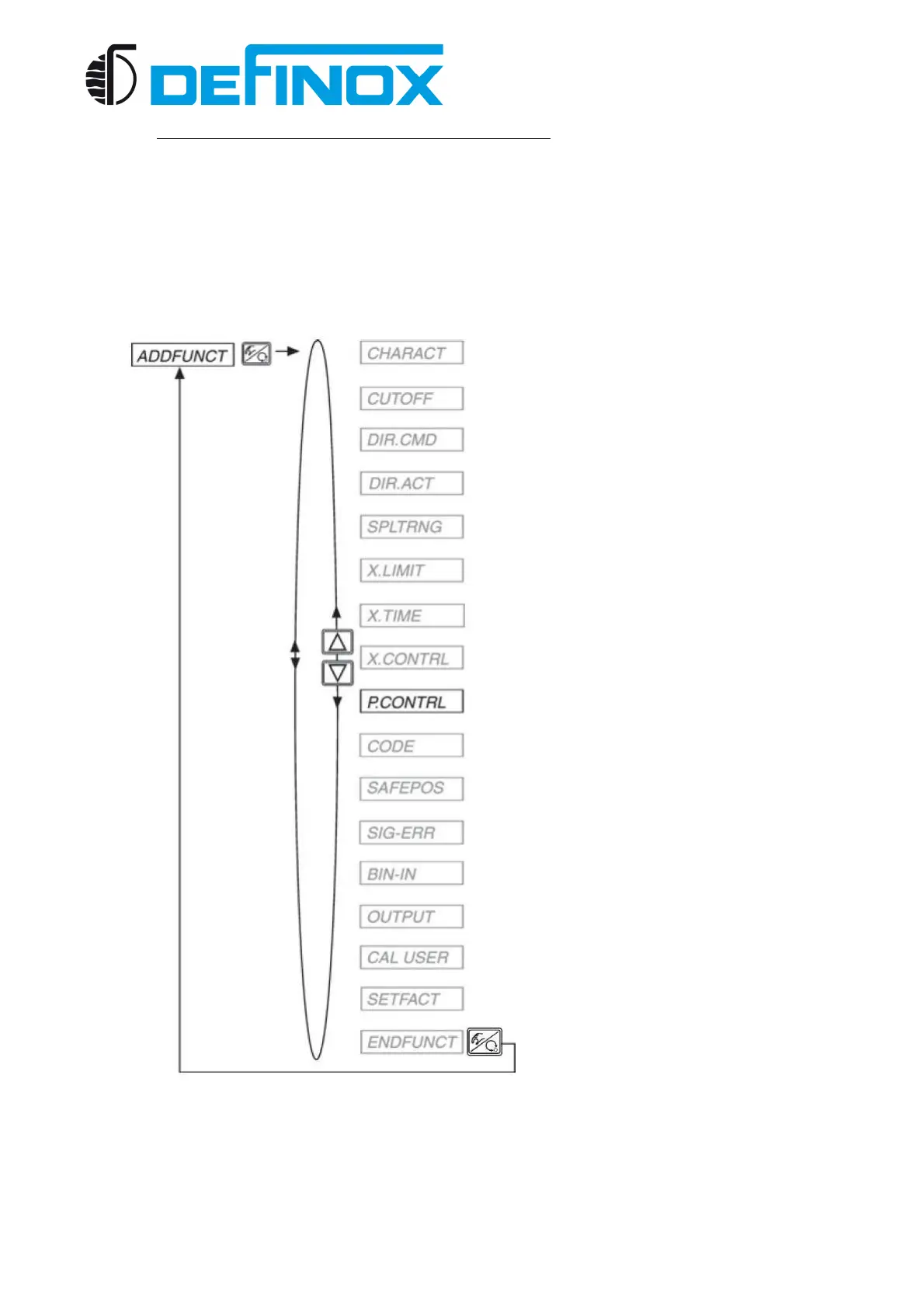

SETTING TH
E VALVE P
OSITIONER OPE
RATOR
•
Same as the valve
régulator positioner for functions ACTFUNC, INPUT, X.TUNE.
•
Then go to ADDFUNCT and
uncheck P.CONTRL then placed before the sta
r disappears.
•
Exit menu with ENDFUNCT.
Parametrizat
ion of the PID co
ntroller
13
15
