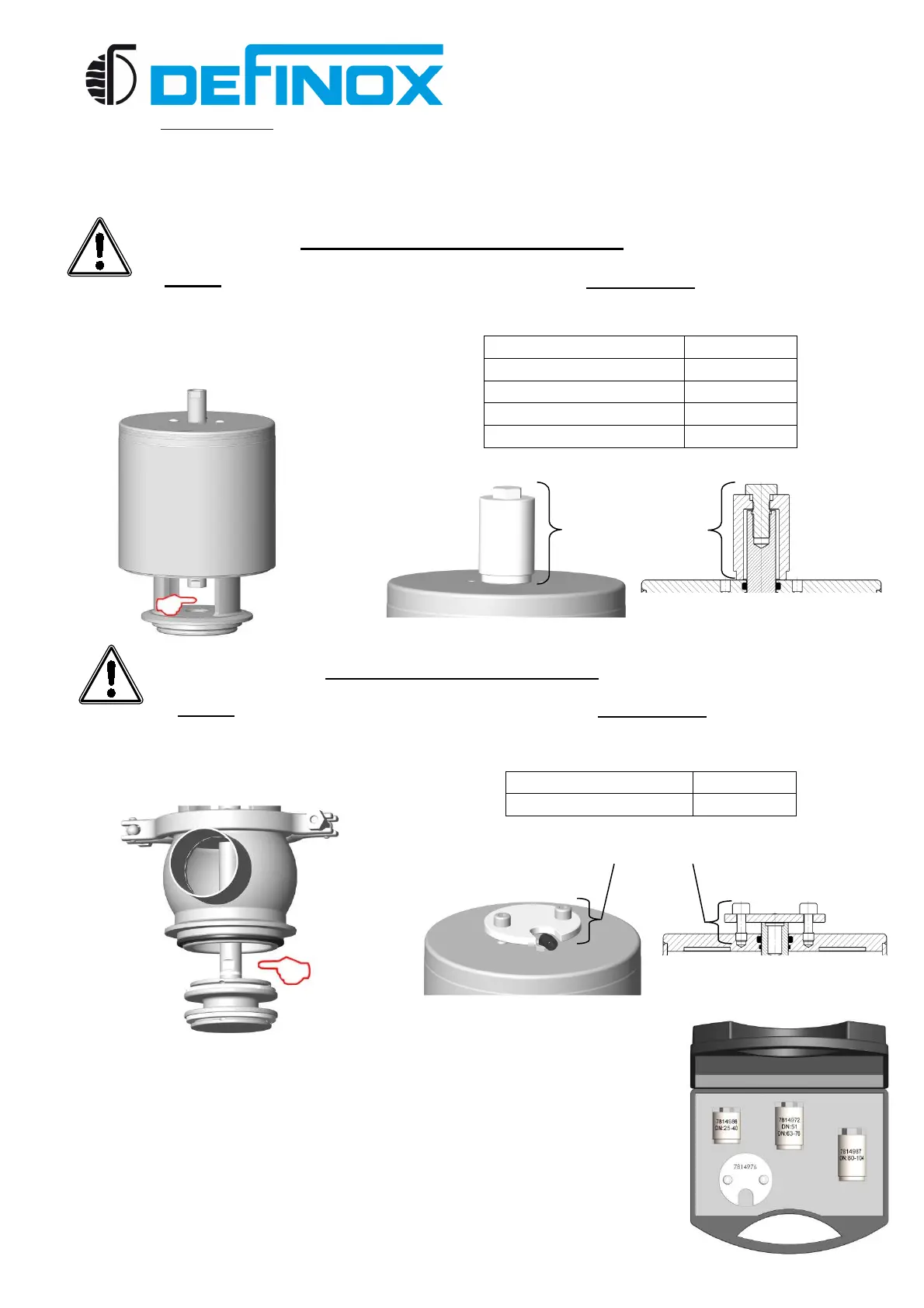

3.2.1 Safety devices
For the maintenance of NC and NO actuators, we offer on request maintenance sets preventing
unintended operation of the plug when the actuator is supplied with air.
DCX3/4 NC (rod out)
DCX4 NO (rod in)
A tool case reference 7082850 is available which includes the following tools:
• 7814986  Maintenance tool for actuator NC DN25-40
• 7814972  Maintenance tool for actuator NC DN51-76
• 7814987
 Maintenance tool for actuator NC DN80-104
• 7814976  Maintenance tool for actuator NO DN25-150
DN
Reference
DN25
-
40
7814986
DN51 and DN63
–
76
7814972
DN80
–
104
7814987
DN125
-
150
7814988
DN
Reference
DN25
–
150
7814976
RISKS
When changing seals: Risk of
trapping fingers between the
actuator axis and the top of the seal
plate
SOLUTIONS
Maintenance tools for the NC actuator
RISKS
When fitting and removing the valve:
Risk of trapping fingers between the
valve and the valve body
SOLUTIONS
Maintenance tool for NO actuator
Safety device
Safety device
DANGER
!
DANGER
!
