Definox DCX3 User Manual

MAINTENANCE NOTICE
NM-230 index 18 Page 32/55 September 2020

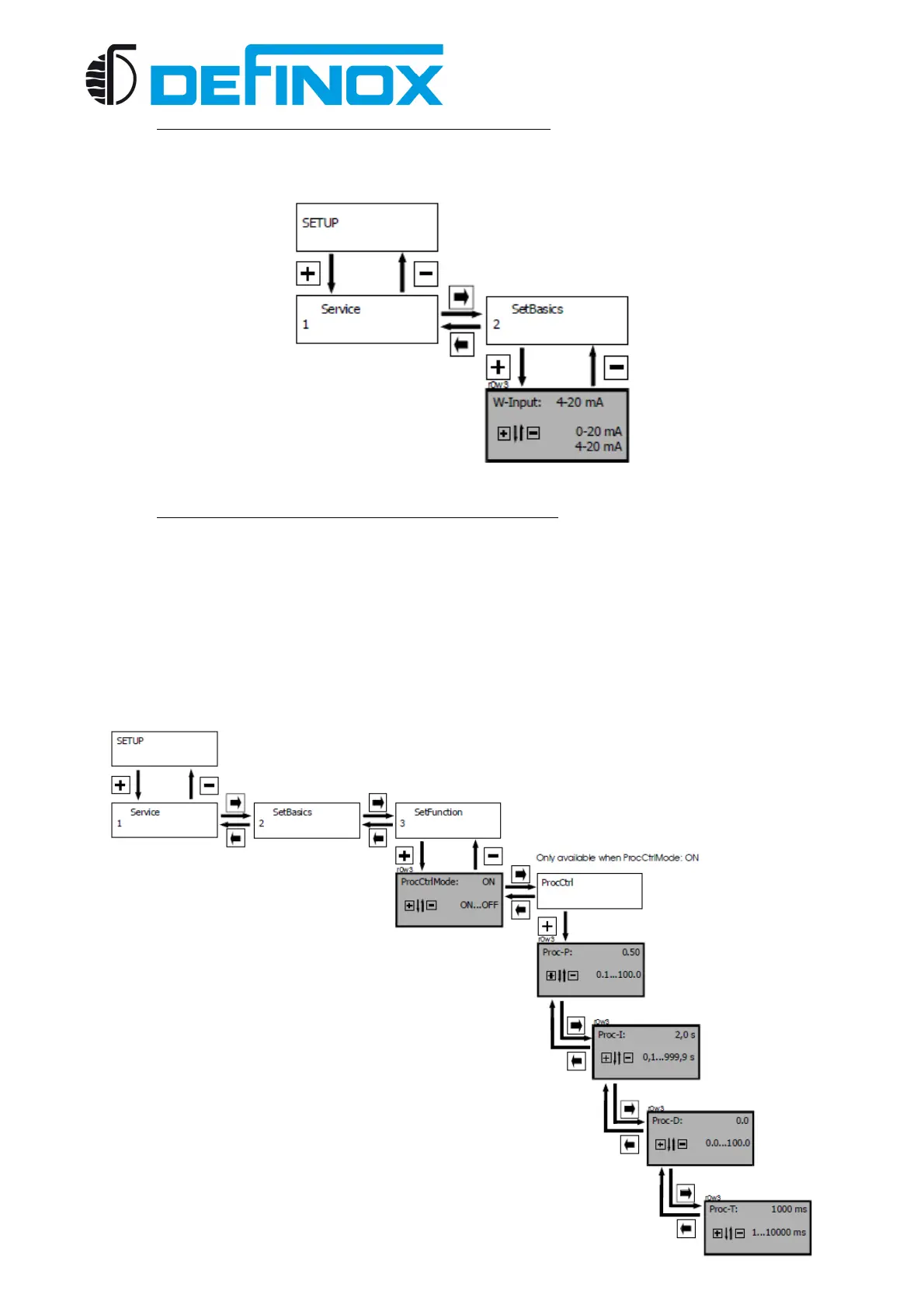

6.6 SETTING THE VALVE POSITIONER OPERATOR
Set the type of external set-point (0 / 4-20mA) W-Input setting.
6.7 SETTING THE VALVE REGULATOR OPERATION
Set the type of external set-point (0 / 4-20mA) to the parameter W-Input.
Set the type of external real value (0 / 4-20mA) to the parameter X-Input.
If it functions as a process controller, set the parameter ProcCtrlMode to On.
Now start to adjust the PID parameters for the control system.
Select the menu ProcCtrl and set the parameters Proc-P, Proc-I, Proc-D and Proc-T according to the
specific system parameters.
