9 Wave guide and cover.
Distributes microwave energy
throughout the oven cavity.
10 Coupler.
Links the turntable motor shaft to the
roller guide and must remain in place
when cooking.
11 Roller guide.
Allows the metal tray to rotate freely
and must remain in place when cook-
ing.
12 Turntable tray.
The tray must remain in place when
cooking.
13 Door viewing screen.
Allows light but not microwave energy
to pass through.
14 Door hooks.
These are part of the door lock safety
system.
15 Wire stand.
Acts as a pot stand for shallow dishes
when grilling.
1 Door seal.
Prevents microwave leakage during
operation.
2 Oven vent.
Allows steam to escape from the oven.
3 Concealed Quartz Grill element.
Used for grilling and browning.
4 Oven cavity.
Features our concave reflex micro-
wave distribution system.
5. Oven light.
The light switches on automatically
whenever the oven is operating and
remains on when the door is open.
6 Door Safety Interlock system:
When the door is opened, the oven
magnetron will automatically shut off
and the oven will not function until the
door is closed again.
7 Electronic display panel:
Displays relevant information.
8 Door Handle
Pulling the handle opens the door and
stops the oven from operating.
12
3
46
5
7
8
9
1011121314
15

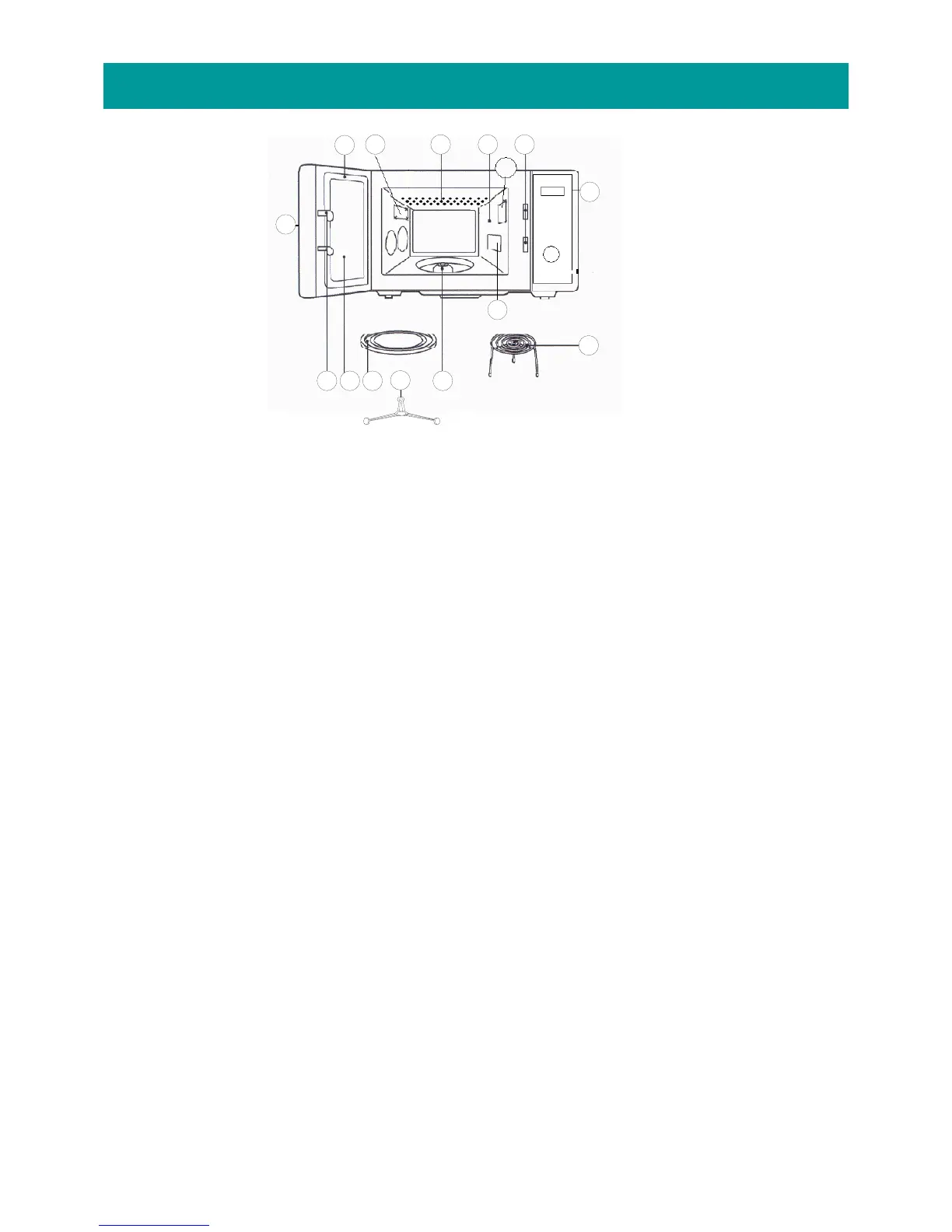

Features.
