3.2 Deck plan
Components
1. below deck Furler
2. Anchor roller
3. escape- hatch
4. Mast trunk
5. Shround chaine plate
6. Genua track
7. Spring cleats
8. Halyard winches
9. Main Sheet winches
10. Main Sheet winches
Geman Main Sheet
11. Steering wheel
12. Gas container
13. Pushpit
14. Pullpit
15. entrance hatch
16. Cockpit locker
(Locker for life raft storage)
17. Traveller
18. engine switch
19. Exhaustion waste water
20. Filler plug diesel
21. Filler plug water

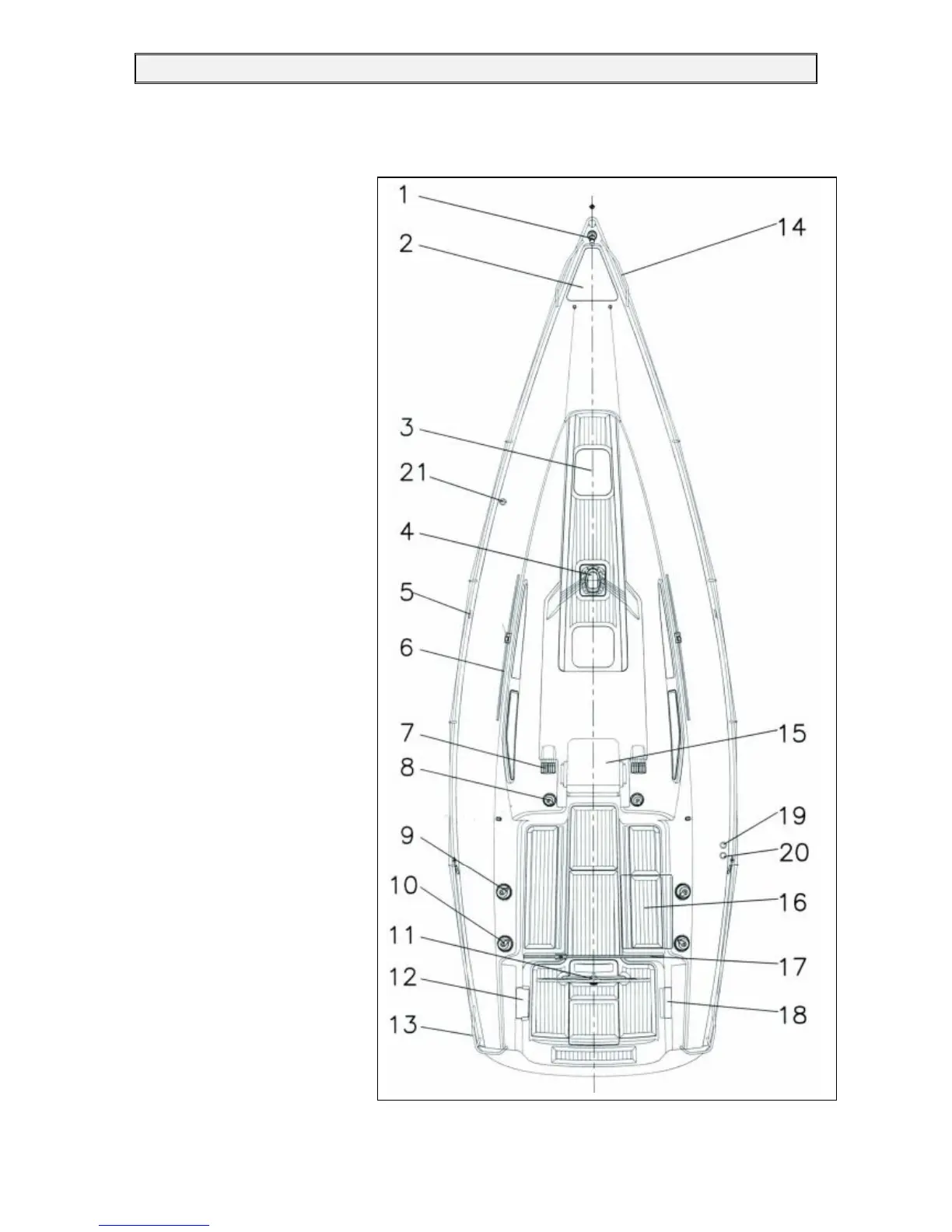

FIGURE 4: DECK PLAN
