Yacht Manual DEHLER 35
31 - 63
4.3 Waste water pump
We have installed a shower water suction pump in the locker space under the hand washbasin.
At 12 l/min. the pump removes more water than can be provided by the water supply. If the
water in the shower tray rises, this means that the filter is clogged and should be cleaned. It
can be easily reached in the locker space under the washbasin. The stopcock can be found at
the side of the washbasin.
If the boat is fitted with a hot water boiler the system is supplied via the shower installation
with a tap in the hand washbasin, from which water can be drawn. A waste water pump and
shower curtain are supplied.
The engine twin-circuit cooling is used amongst other things as heat source. Since it is
anticipated that the engine would be used only in calm weather and for manoeuvring in
harbour, the hot water boiler/heat exchanger is additionally equipped with a 1200 Watt
electric heating cartridge, which in harbours can be used with 230 V alternating current via
the shore connection. You will find the switch in the space under the navigation table.
The cold water goes to the insulated boiler by means of the pressure pump. . The water in the
water boiler is heated by the hot water of the engine. The washbasin, galley and eventually
the cockpit shower are thus supplied. The surge tank in the cold-water circuit responds also to
the withdrawal of hot water.
4.4 Alternating current installation
If the yacht is equipped with a 230 V shore connection unit, when you are mooring in a
harbour, you can feed power into the onboard system with a connection cable. The socket is
to be found at the end of the cockpit. There is a 230 V socket in the shore connection unit in
the space under the navigation table.
4.4.1 Shore connection unit
· Manufacturer Philippi
· On/off switch, battery charger
· FI- protection switch
· System control light
· On/off switch, heat exchanger
· with control light
· 230 V safety socket
Charging of the battery starts once the
shore connection cable is plugged in.
The 230 V socket is likewise ready to
function. It is exclusively for electrical
use. Please think about the power limit
of land sockets. The feed for hot water
heating in the heat exchanger has fixed
cabling, which is separately switched
and protected.

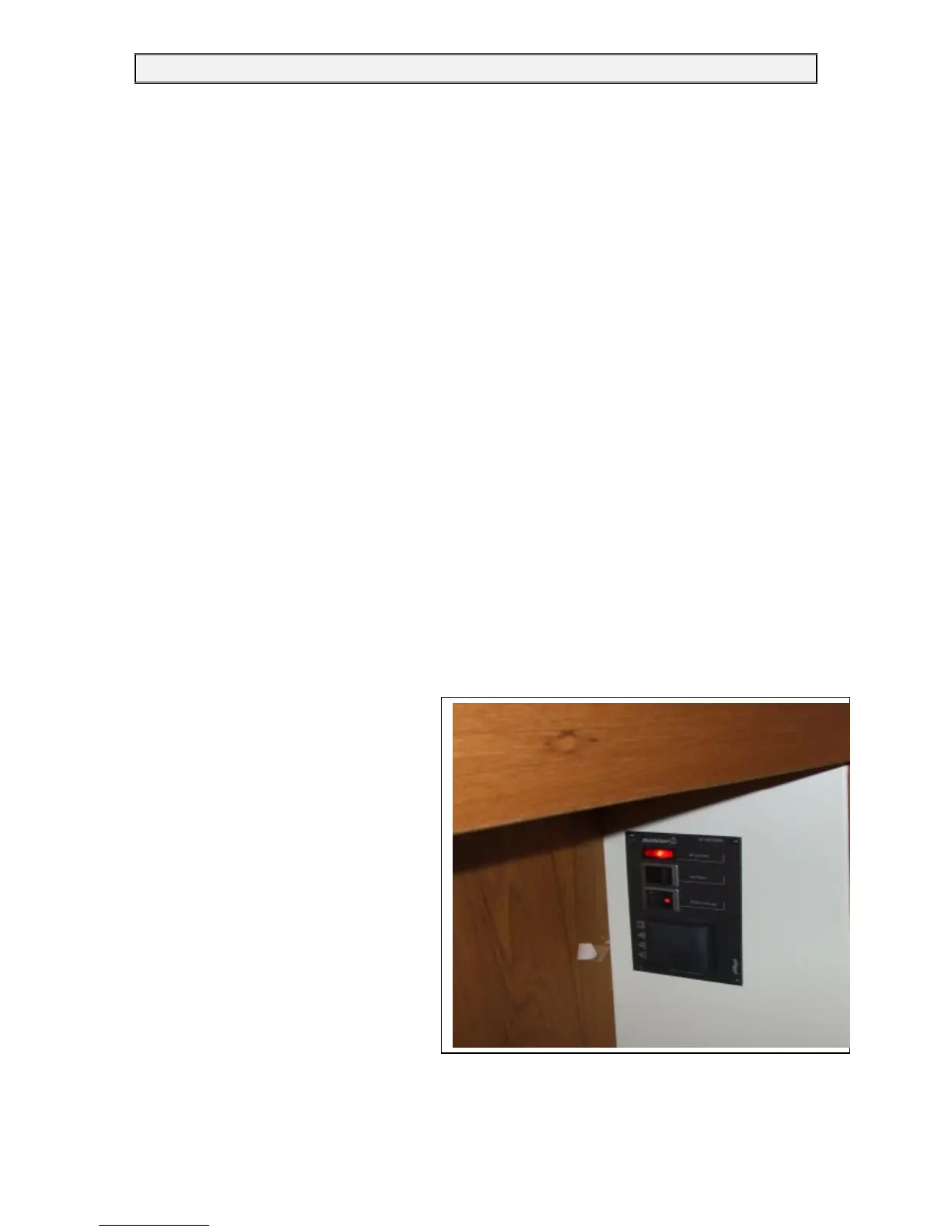

FIGURE 14: SHORE CONNECTION PANEL
