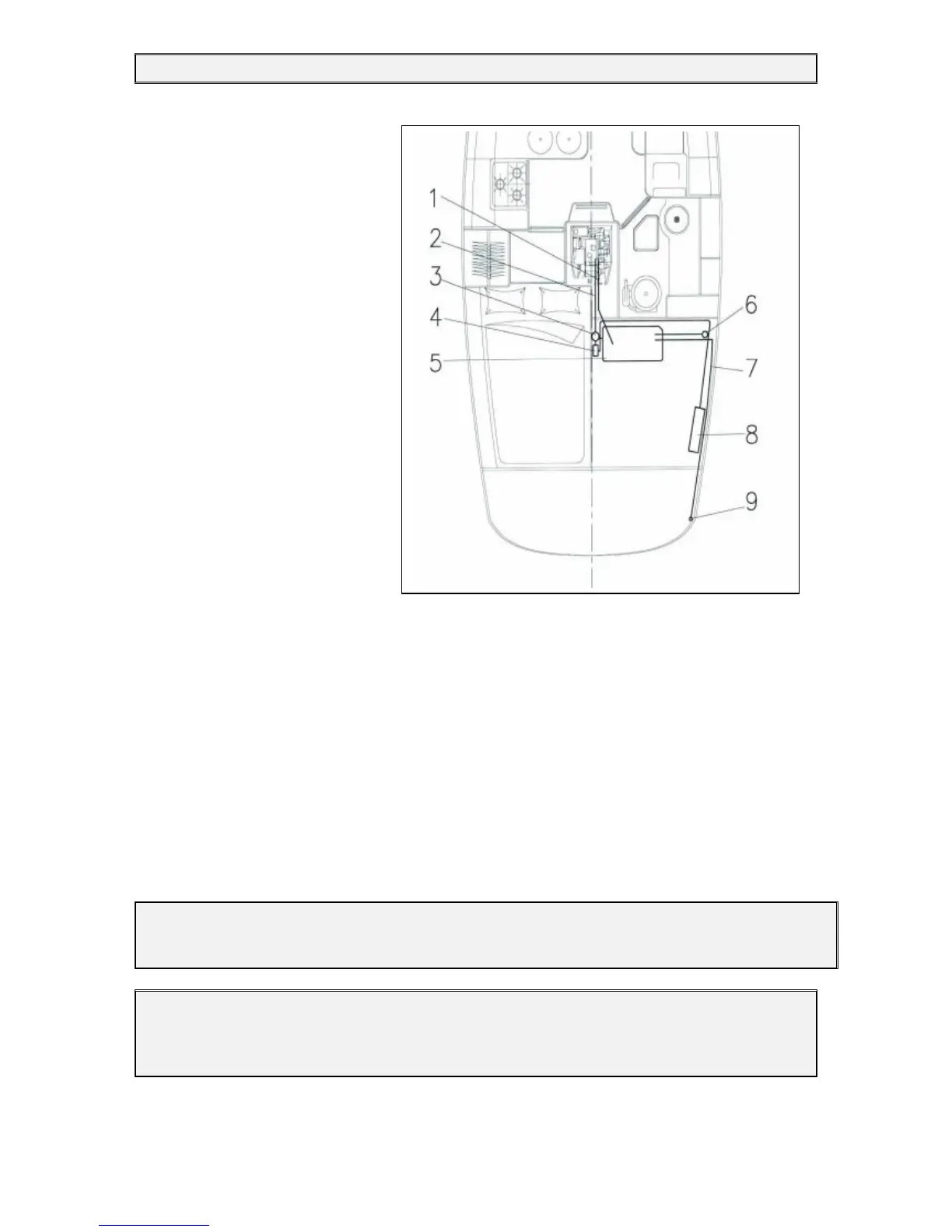

Components
1. Return pipe
2. Feed pipe
3. Filter/Water separator
4. pump
5. Fuel tank
6. Filling cap
7. ventilation tube
8. heater (option)
9.Ventilation
FIGURE 12: FUEL LINES
4.1.5 Engine switch panel
The engine switchboard with a control lever is installed in the cockpit’s coaming starboard.
All other information can be found in the extensive information provided by Volvo.
4.1.6 Engine monitoring
It is especially important to heed the engine temperature light in calm and tidal waters. If the
water supply is disturbed engine over-heating may rapidly occur. As the light does not fall in
the field of view of the skipper an audible warning signal should reliably prevent such a
situation. See also the instructions in the Volvo manual.
NOTE
The single lever circuit is a combination between a circuit and a throttle. Always allow a few
seconds in neutral between gear changes, to take care of the gear.
NOTE
Please avoid contact of flammable material with hot engine parts.
Please prevent damage of to fuel lines.
