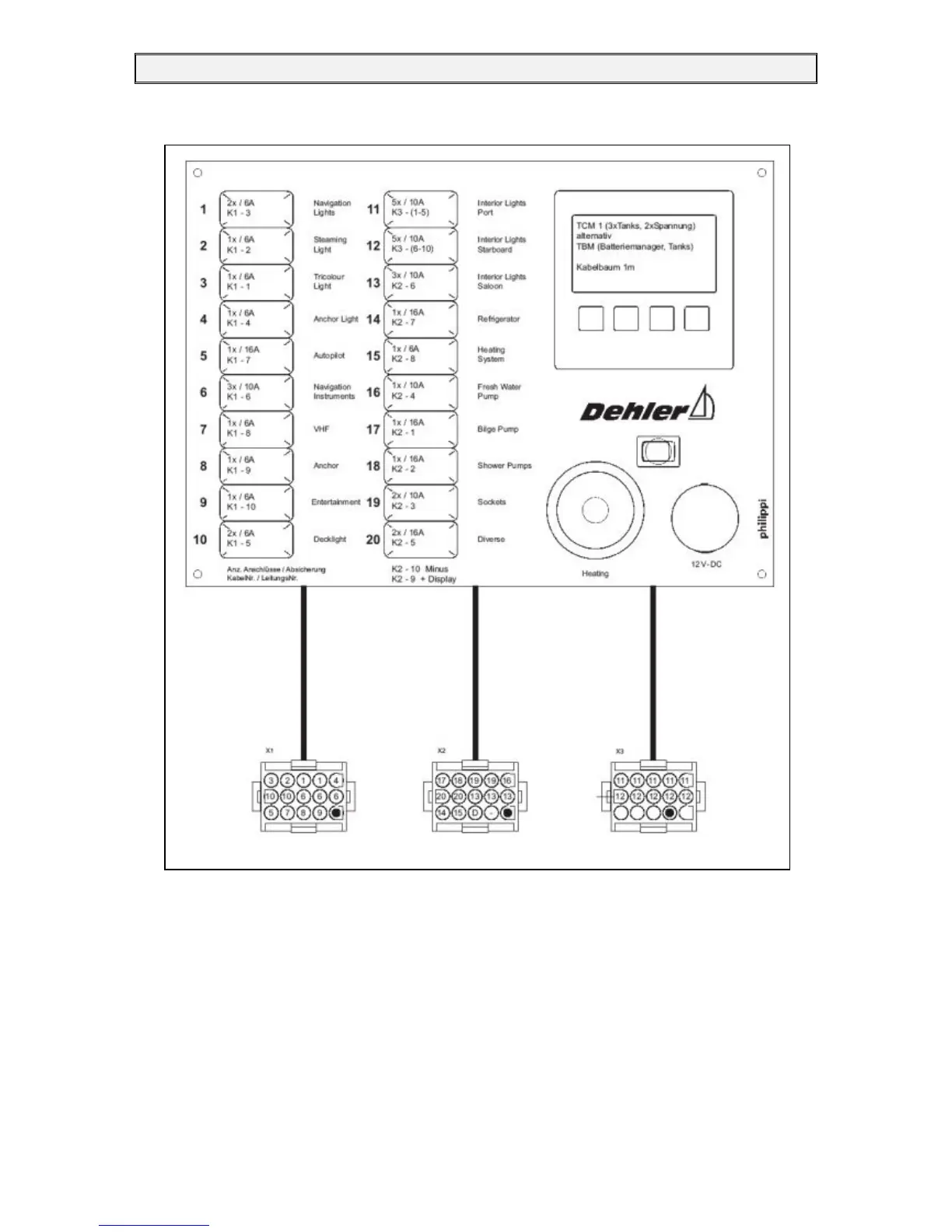

FIGURE 18: CONTROL PANEL WITH CONNECTION NUMBERS
4.5.3 Identifying the cables
The following numbers are to be found on the electric cables. Thus it is possible to check the
clamped connections and leads easily.
1 = Bow/Stern light 2 = Steaming light 3 = Tricolour light
4 = Anchor light 5 = Instrument lighting 6 = Interior lighting port
7 = Interior lighting starboard 8 = VHF radio 9 = Pressure water pump
10 = Self steering gear 11 =Refrigerator 12= Bilge pump
13 = Waste water pump 14 = 12 V socket
