3.2.1 Deck
The deck is a sandwich construction. Balsa wood of different thicknesses is used as
intermediate layer. In areas with a lot of strain reinforcements of aluminium, plywood or solid
wood are used.
Fittings such as genoa slides, halyard pegs, winches, deck hatches or rollers are screwed and
sealed with a flexible silicone rubber substance.
Attention
There must be a 6 person liferaft in the Liferaft storage in the cockpit locker
IMPORTANT
Please keep portlights, windows, washboards, doors hatches or ventilation openings closed
when appropriate, e.g. in rough weather or at planing speeds. If necessary, provide
operating instructions.
3.2.2 Guard rails
The deck is equipped with a pulpit, a pushpit, an integrated safety ladder/swimming ladder
and guard rail supports. The deck guard rail has a continuous height of 610 mm. The eight
railing posts and the bolts for the pulpit and pushpit are screwed on the aluminium deck
reinforcement and glued with epoxy
resin.
3.3 Sail plan
Mainsail 42.5m
2
Jib 107 % 32.9 m
2
Spinnaker approx. 101.3 m²
Gennaker 95.3 m²
The canvas quality is chosen for the
wind strain
corresponding to the sails. The
mainsail can be
reduced by two one-line quick
reefings, by 1.80 m above the main
boom (reefing 1) and by 3.65 m
above the boom (reefing 2).
3.3.1 Sail dimensions
· P = 14.55
· E = 4.70
· I = 15.00
· J = 4.10
With these data any sailmaker can

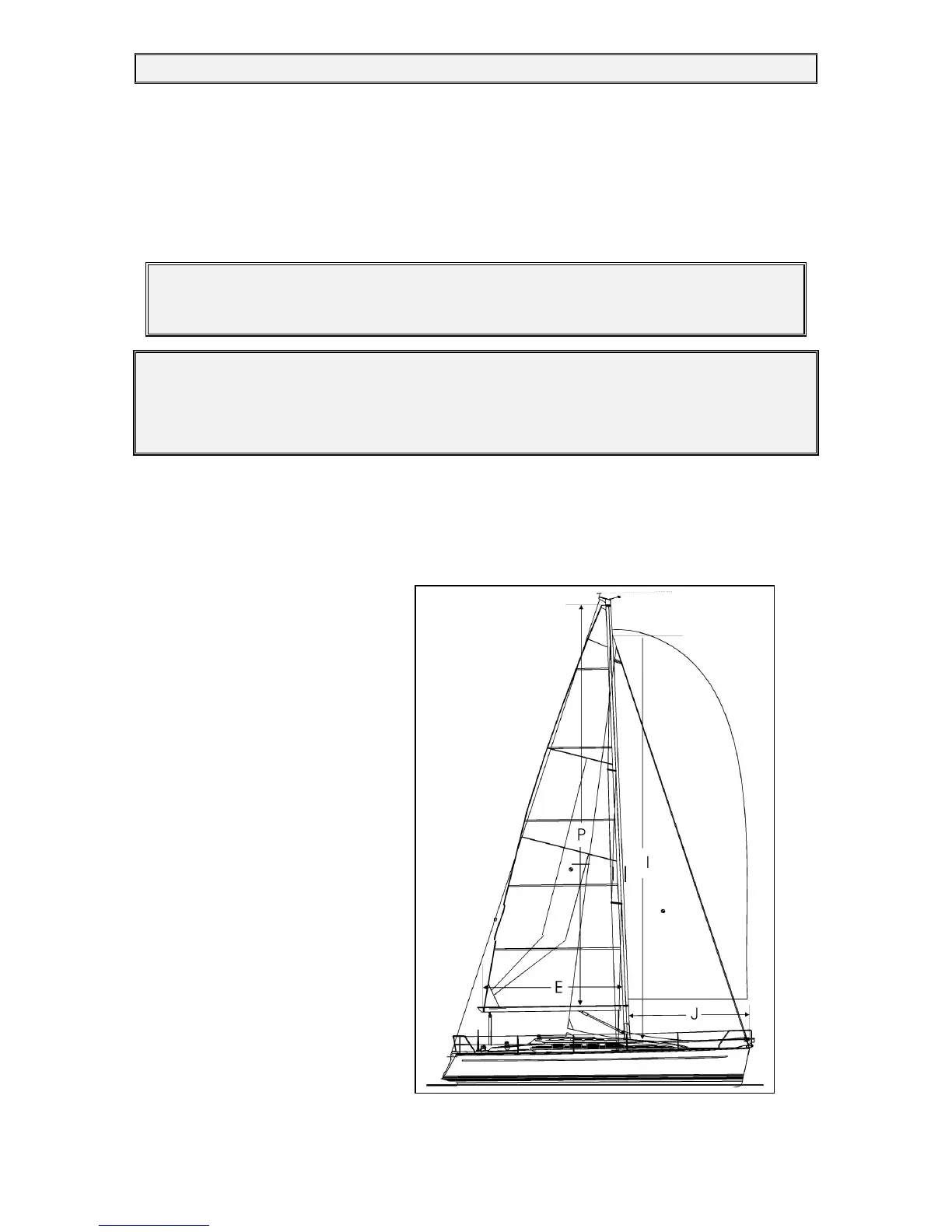

make the sail you require. FIGURE 5: SAIL PLAN
