Deif GPC-3 Quick Start Guide

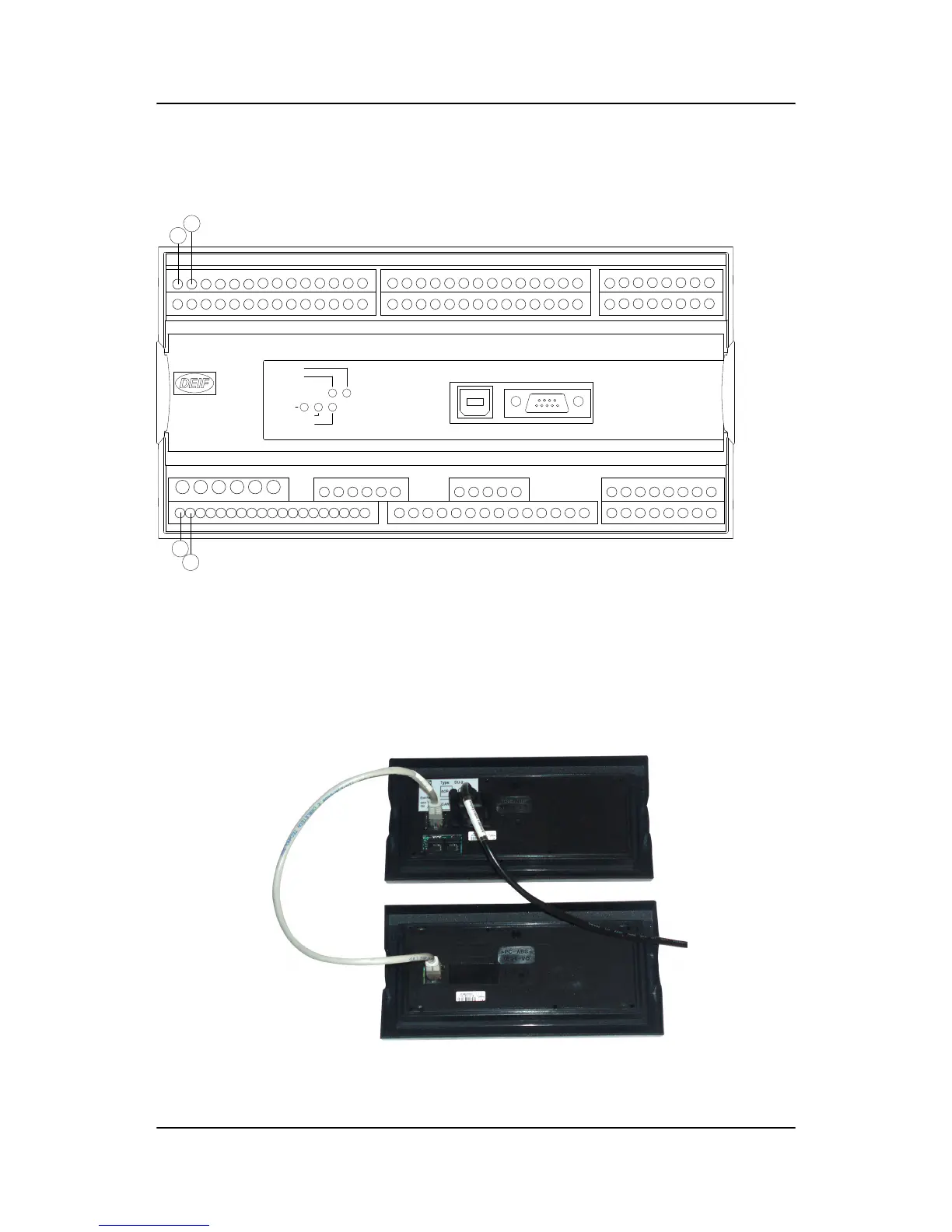

3.1.2 Connecting the power supply to the main unit
3
1
4
2
787776757473
96 979594929190 93
89888785 8683 8482818079
727169 70686765 66
62 6359 60 615856 575553 54 645251504947464443 45 4841403837 39 42
Service port Display
CAN B
CAN A
Power
Self check ok
Alarm inhibit
1. Terminal 1: +24 V
dc
2. Terminal 2: 0 V
dc
3. Option M4 - terminal 98: +24 V
dc
4. Option M4 - terminal 99: 0 V
dc
3.1.3 Connecting the additional operator panel, AOP-1 (optional)
Display unit
DU-2
AOP-1
AOP-1 cable
0.5 m
ML-2 quick start guide 4189340603 UK Getting started
DEIF A/S Page 9 of 23
