Deif GPU-3 Hydro General Guidelines For Commissioning

4.1.5 Synchronisation settings
The ML-2 synchronisation settings are adjusted in the synchronisation part of the control setup menu.
GPU/GPU Hydro: synchronisation requires option G2.
4.1.6 Speed controller settings
The Multi-line 2 speed controller settings are adjusted in the regulation part of the control setup menu.

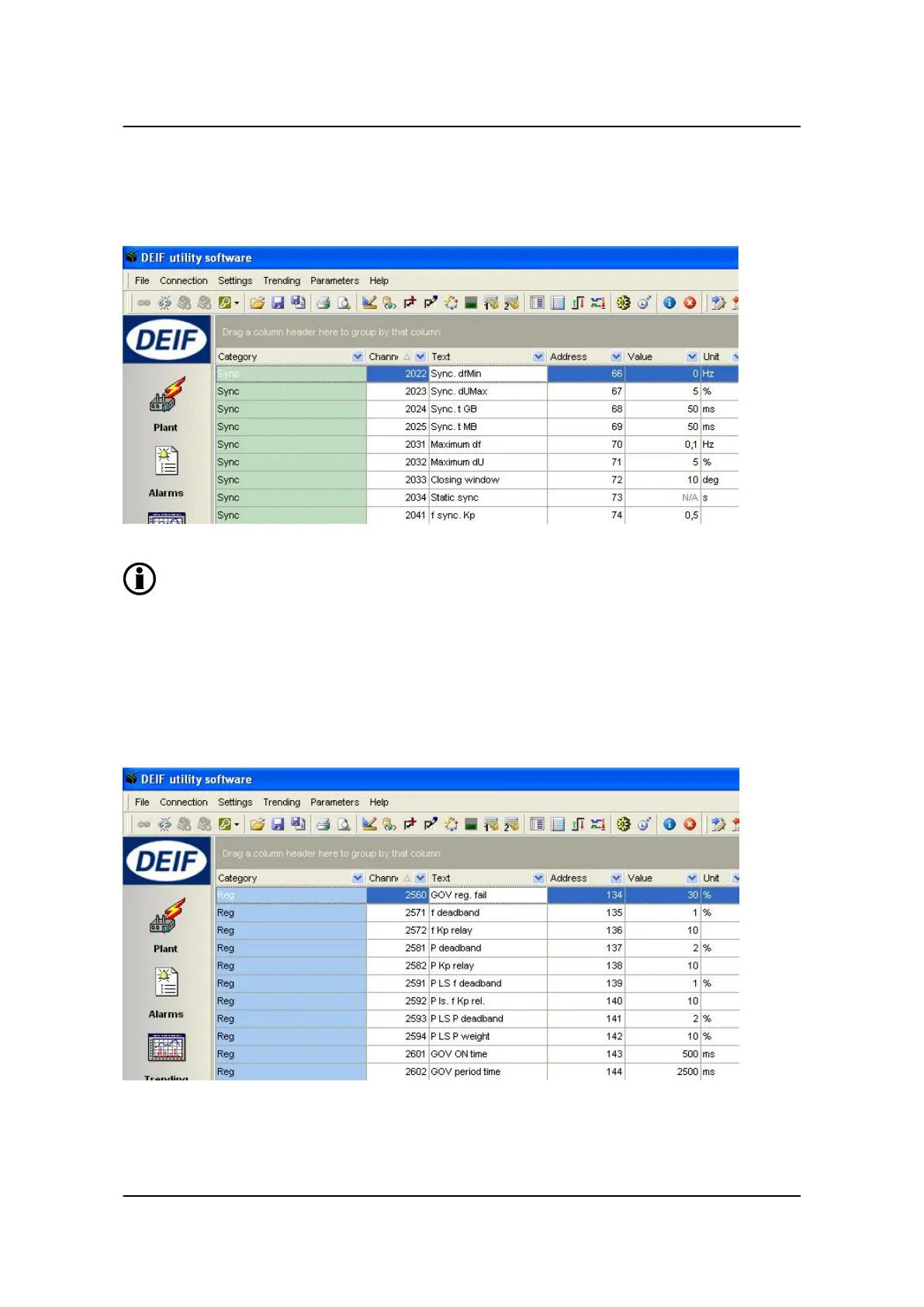

The screendump below illustrates the controller settings related to the speed governor. As an initial setting
before the first start up, the K
p
of the frequency and power controllers are set to a low value giving a slow
regulation.
General guidelines for commissioning
4189340703 UK
Settings
DEIF A/S Page 11 of 25
