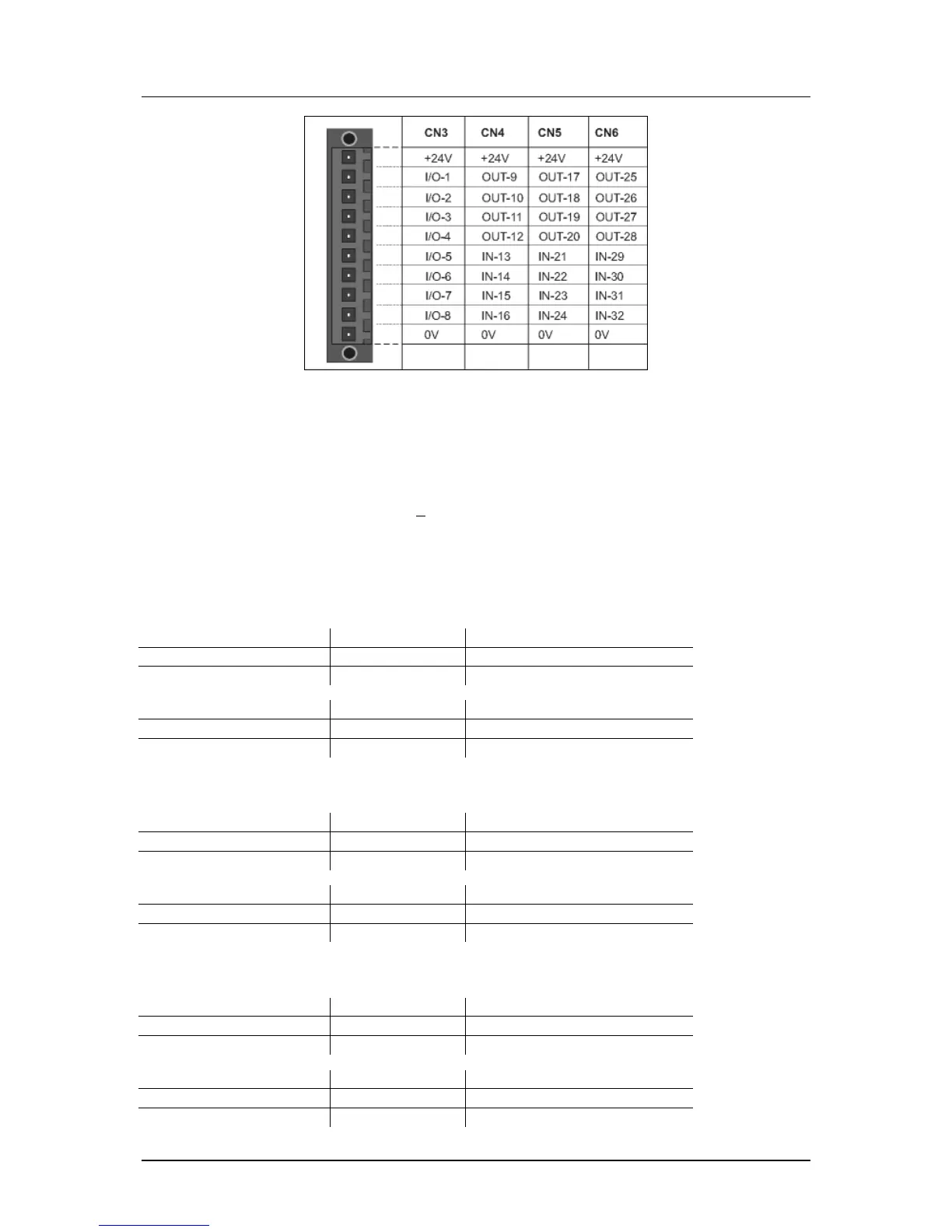

Figure 3.b
See schematic 8061-101 for connection details.
The use of I/O pins depends on the application and machine settings. For the purpose of all
assigned I/O signals we refer to the Delem machine parameter manual.
I/O power supply: 24 V DC + 20%
10A max.
CN3: Pins 1 - 8
Programmable Digital In-/Outputs (8x):
Digital Output
Voltage
Current
ON state
20-28 V DC
0.5 A max.
OFF state
-
0.1 mA max. (leakage current)
Digital Input
Voltage
Current
ON state
9-28 V DC
20mA max.
OFF state
0-4 V DC
1 mA max.
CN4: Pins 9 - 16
Digital Outputs (4x)
Voltage
Current
ON state
20-28 V DC
0.5 A max.
OFF state
-
0.1 mA max. (leakage current)
Digital Inputs (4x)
Voltage
Current
ON state
9-28 V DC
20mA max.
OFF state
0 - 4 V DC
1 mA max.
CN5: Pins 17 - 24
Digital Outputs (4x)
Voltage
Current
ON state
20-28 V DC
0.5 A max.
OFF state
-
0.1 mA max. (leakage current)
Digital Inputs (4x)
Voltage
Current
ON state
9-28 V DC
20mA max.
OFF state
0 - 4 V DC
1 mA max.
