Delem
V1204, 2.6
2. The machine parameters

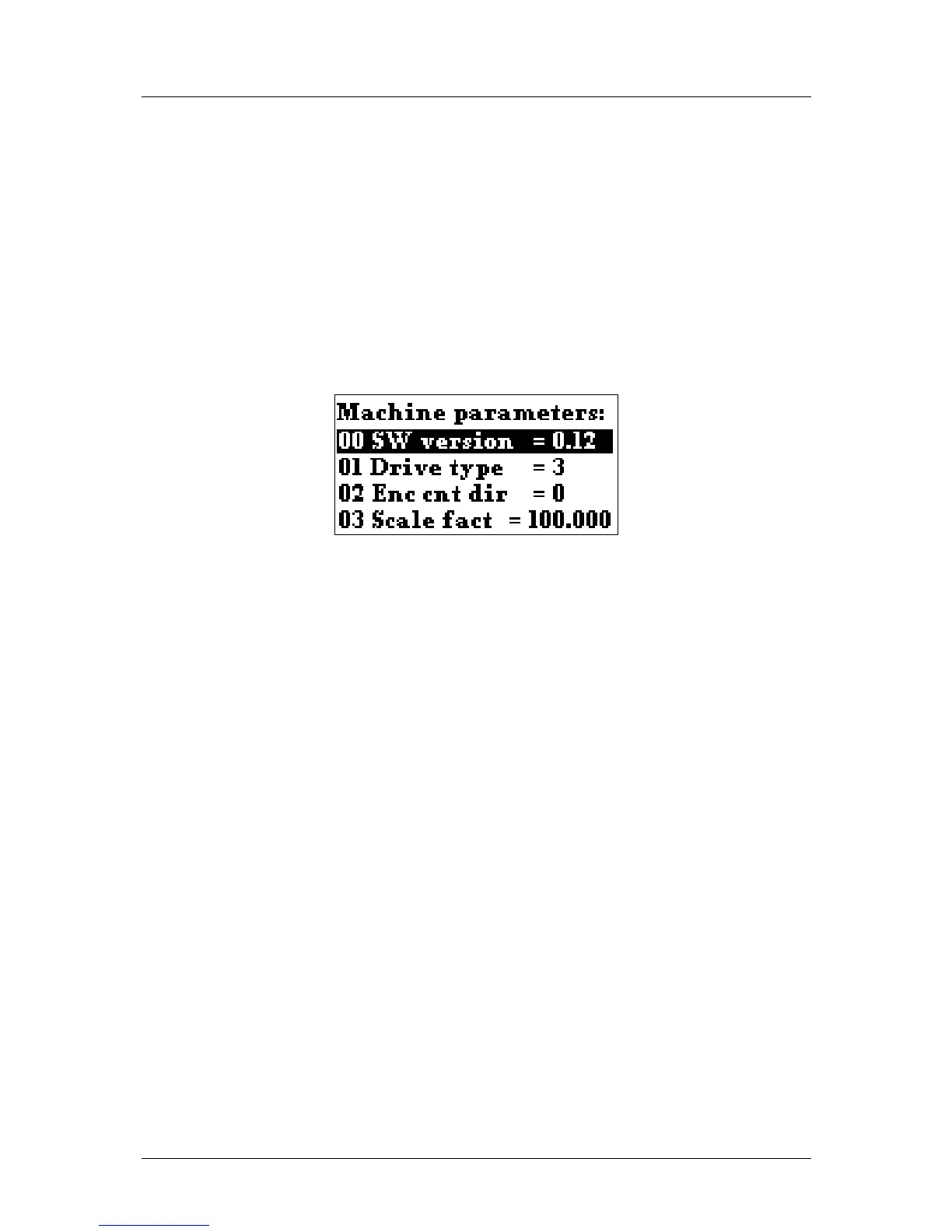

2.1. The menu
The machine parameters are only accessible with a special entry code. Machine parameters
should be adjusted by authorized personnel only. To enter the machine parameters menu:
• scroll to the M field
• enter the code 8520
• press ENTER.
Now you can change the machine parameters of the control.
2.2. Short parameter list
00 Software version
01 Drive type
02 Encoder count direction
03 Scale factor
04 Decimal point position
05 Maximum backgauge position
06 Minimum backgauge position
07 Spindle allowance
08 IP tolerance
09 Display correction enabled
13 Indexing
14 Reference correction input
15 Reference position
16 RSD switch mounted
17 Reference search direction
20 Enable retract
21 Auto retract
22 Minimum retract
25 Positioning tolerance AC
26 AC brake enabled
27 Brake delay
28 Breakpoint Fast Speed (BFS)
29 Breakpoint Slow Speed (BSS)
