Delem
V0804, 3.3
2. Test-menu
2.1. Start
To select the diagnostic program the following steps have to be performed:
- move the cursor to the M field
- enter the access code 741.

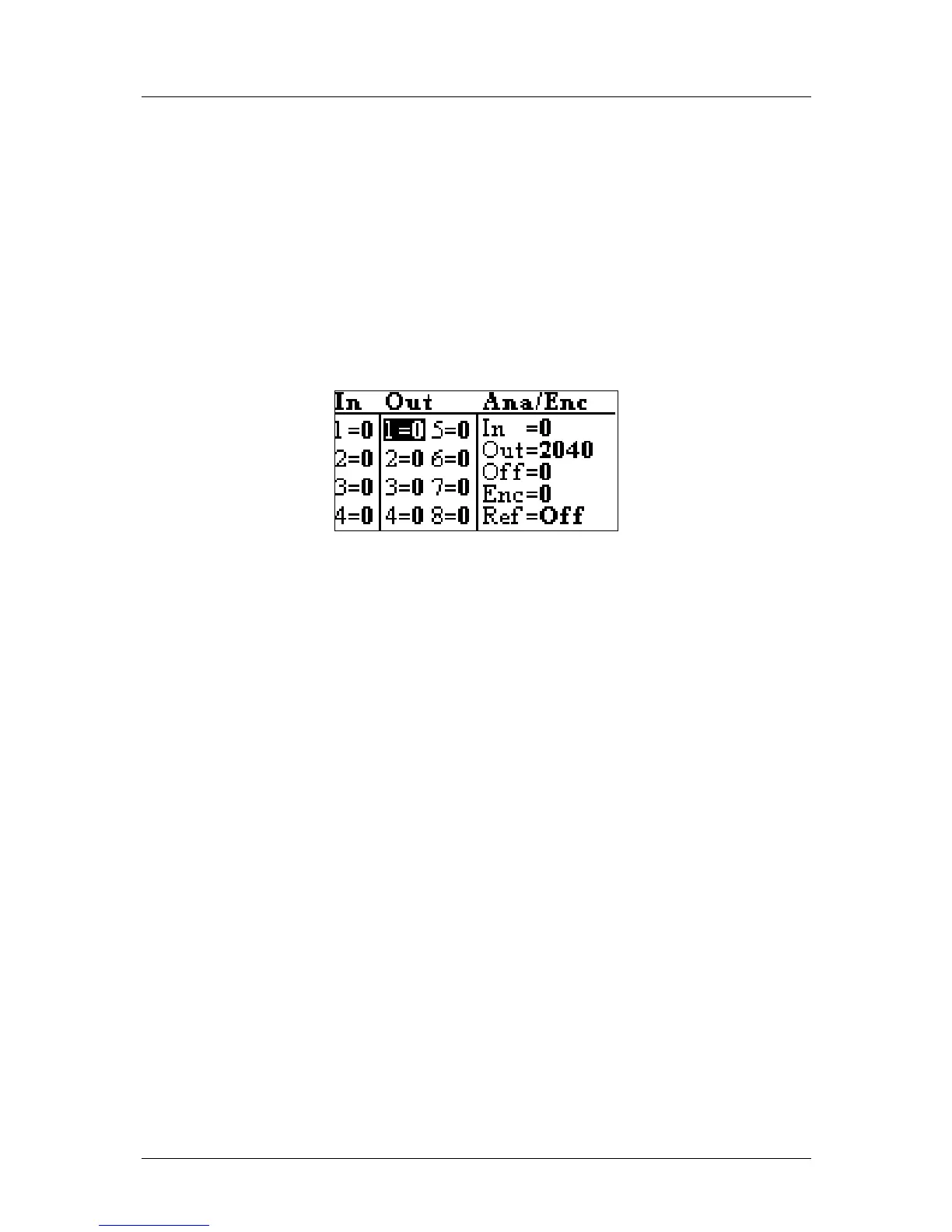

The diagnostic screen of the control looks as follows:
To end the diagnostic program the power supply to the control can be switched off and then
on again to enter the normal operation menu.
It is also possible to leave the diagnostic program with the ‘END’-key. The control application
will restart.
