Dell EMC Data Domain FS15 SSD Shelf User Manual

DD640, DD670, DD860, and DD890 systems
SAS HBA ports
The figure below shows the rear panel of these Data Domain systems with the location
of PCI cards. SAS cards are installed in PCI slots 1, 2, and 3. Each SAS card has four
ports (D, C, B, A). The ports are 1a, 1b, 1c, and 1d; 2a to 2d; and 3a to 3d.
Only the Data Domain DD860 controller with DD Extended Retention software
(formerly called the DD860 Archiver) has three quad-port SAS cards installed. The
other systems have two quad-port SAS cards.

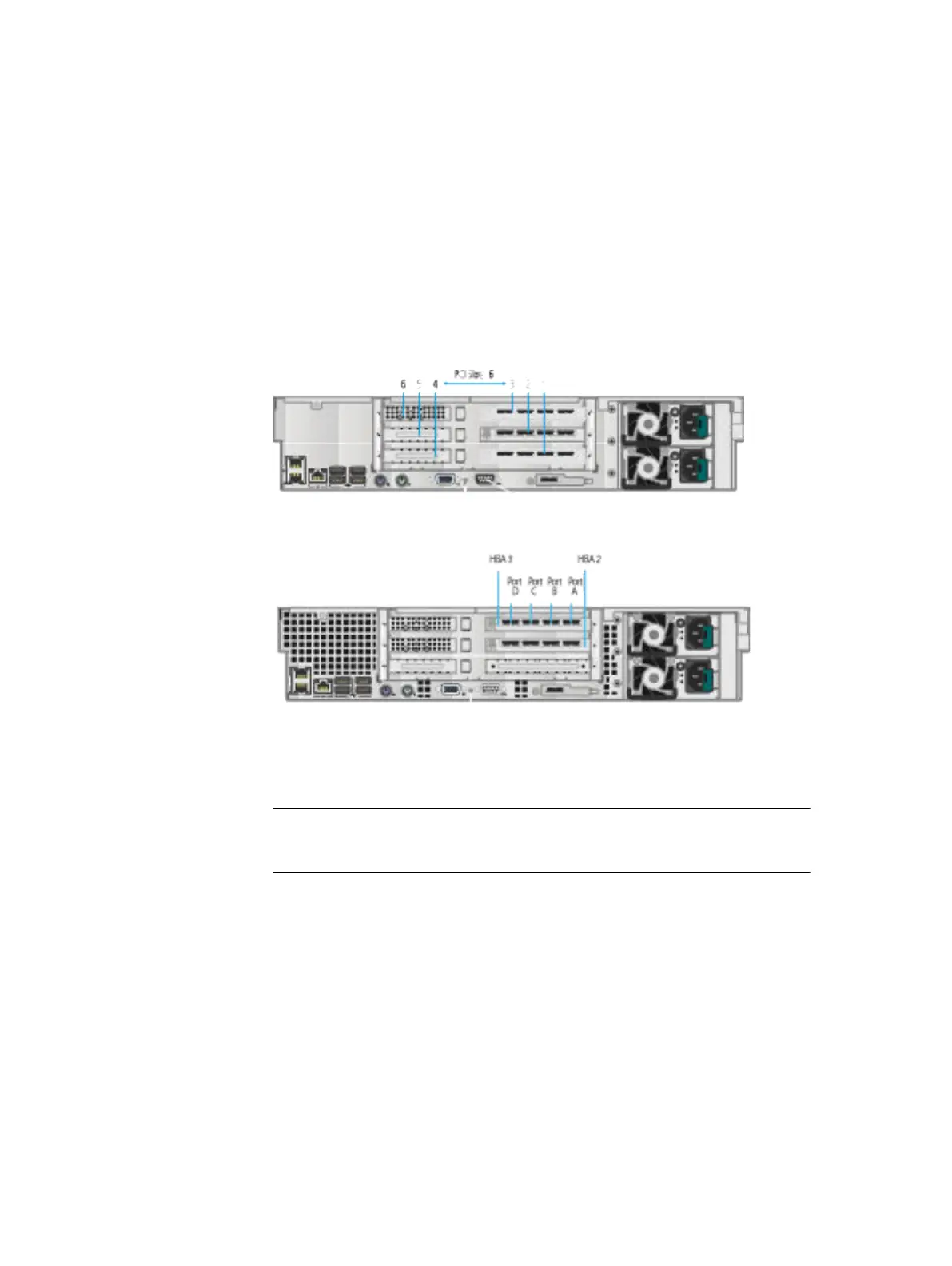

Figure 72 DD640/670/860/890 rear panel
Figure 73 DD640/670/860/890 PCI slot numbering
DD660 and DD690 systems
Note
DD OS 5.7 and later releases do not support the DD660 and DD690 systems.
SAS HBA ports
The SAS cards are located in PCI slot 4 (SAS # 1) and PCI slot 3 (SAS #2). Port A is
located above Port B on each SAS card.
Data Domain-Specific Installation
112 Data Domain ES30 Expansion Shelf and FS15 SSD Shelf Hardware Guide
