Dell EMC ECS U Series - Network Cabling Labels; U- and D-Series 10 GB Public Switch Network Cabling for All Arista Models

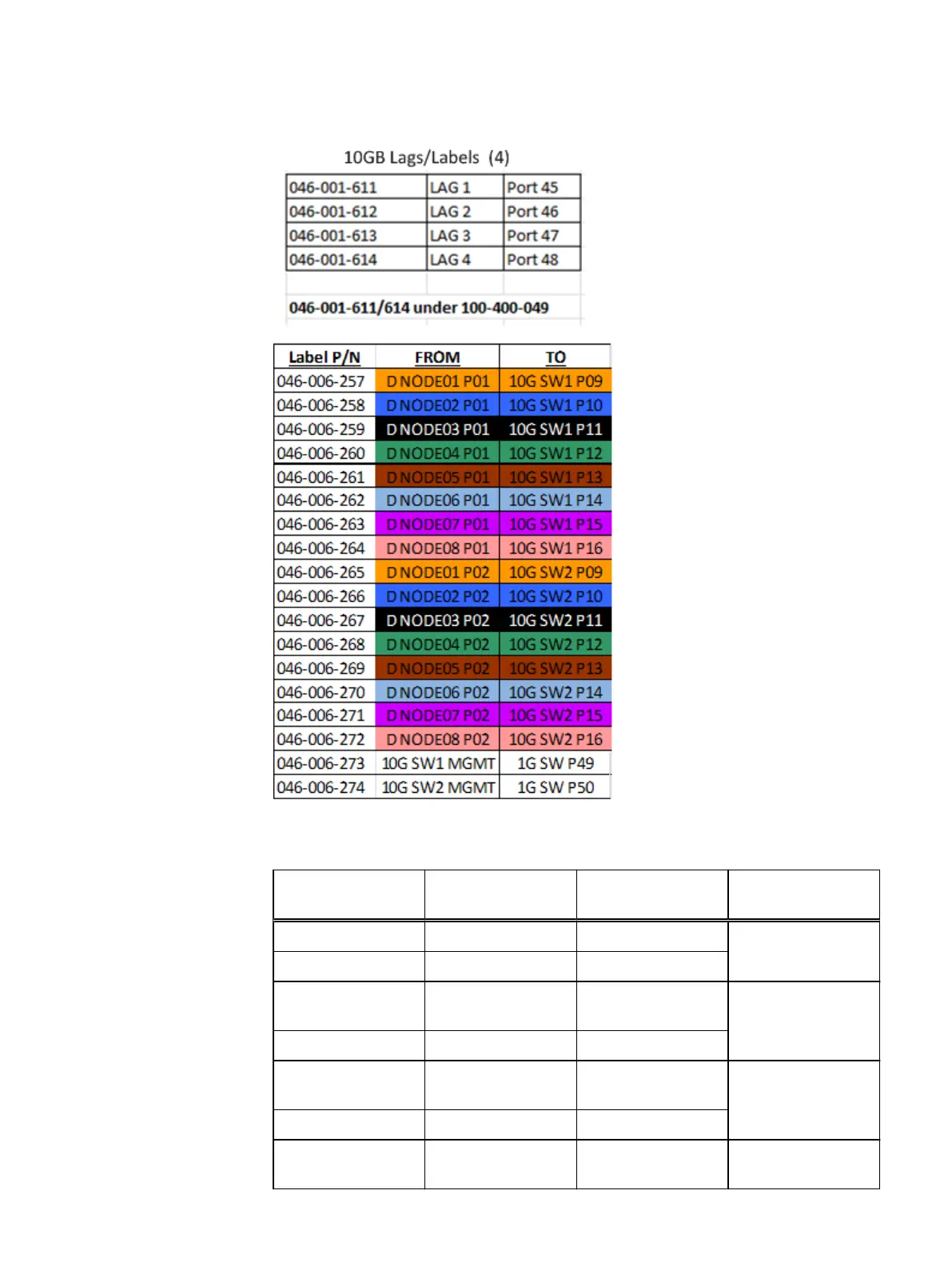

Figure 62 Network cabling labels
Table 42 U- and D-Series 10 GB public switch network cabling for all Arista models
Chassis / node /
10GB adapter port
Switch port / label
(rabbit, SW1)
Switch port / label
(hare, SW2)
Label color
1 / Node 1 P01 (Right) 10G SW1 P09 Orange
1 / Node 1 P02 (Left) 10G SW2 P09
1 / Node 2 P01
(Right)
10G SW1 P10 Blue
1 / Node 2 P02 (Left) 10G SW2 P10
1 / Node 3 P01
(Right)
10G SW1 P11 Black
1 / Node 3 P02 (Left) 10G SW2 P11
1 / Node 4 P01
(Right)
10G SW1 P12 Green
