Table 37 Fan control module fan fault LED
LED Color State Description
Fan fault Amber On Fault detected. One or more
fans faulted.
— Off No fault. Fans operating
normally.

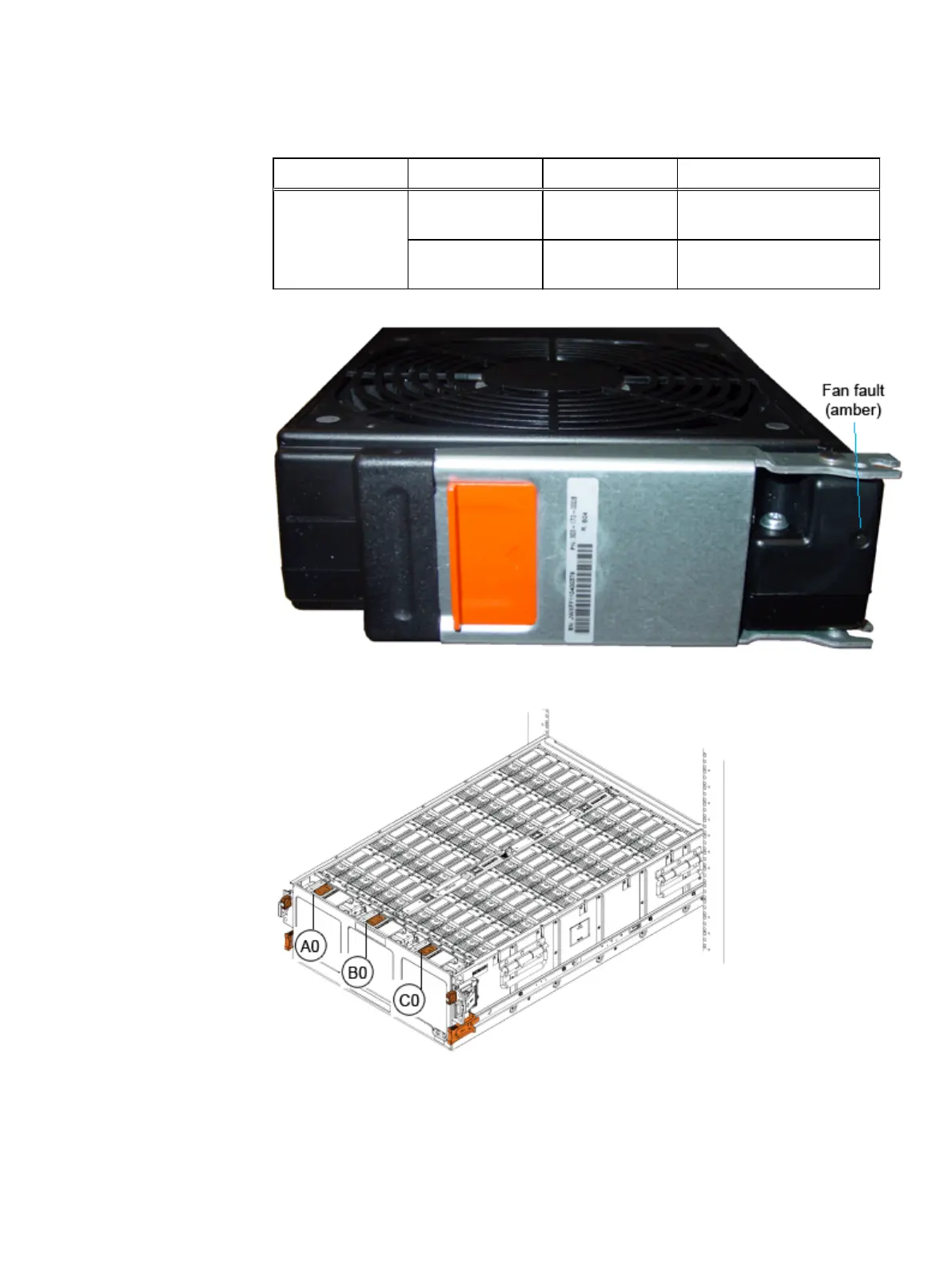

Figure 36 Fan control module with LED
Figure 37 Location of fan modules
Interconnect Module
The Interconnect Module (ICM) is the primary interconnect management element.
It is a plug-in module that includes a USB connector, RJ-12 management adapter, Bus
ID indicator, enclosure ID indicator, two input SAS connectors and two output SAS
Disk Drives
Voyager DAE 63
