Eight 8 GB DDR4 RDIMMs
l
One system disk per node
l
LED indicators for each node
l
Dual hot-swap chassis power supplies
C-Series Gen1 Phoenix-12 nodes have the following standard features:
l
Four-node servers (2U) with two CPUs per node
l
2.4 GHz four-core Ivy Bridge CPUs
l
Four channels of native DDR3 (1333) memory
l
The first disk that is assigned to each node is a 6TB hybrid system/storage disk
l
LED indicators for each node
l
Dual hot-swap chassis power supplies. Supports N + 1 power.
l
12 3.5” hot-swap SATA hard drives per server (three for each node)
Server front views

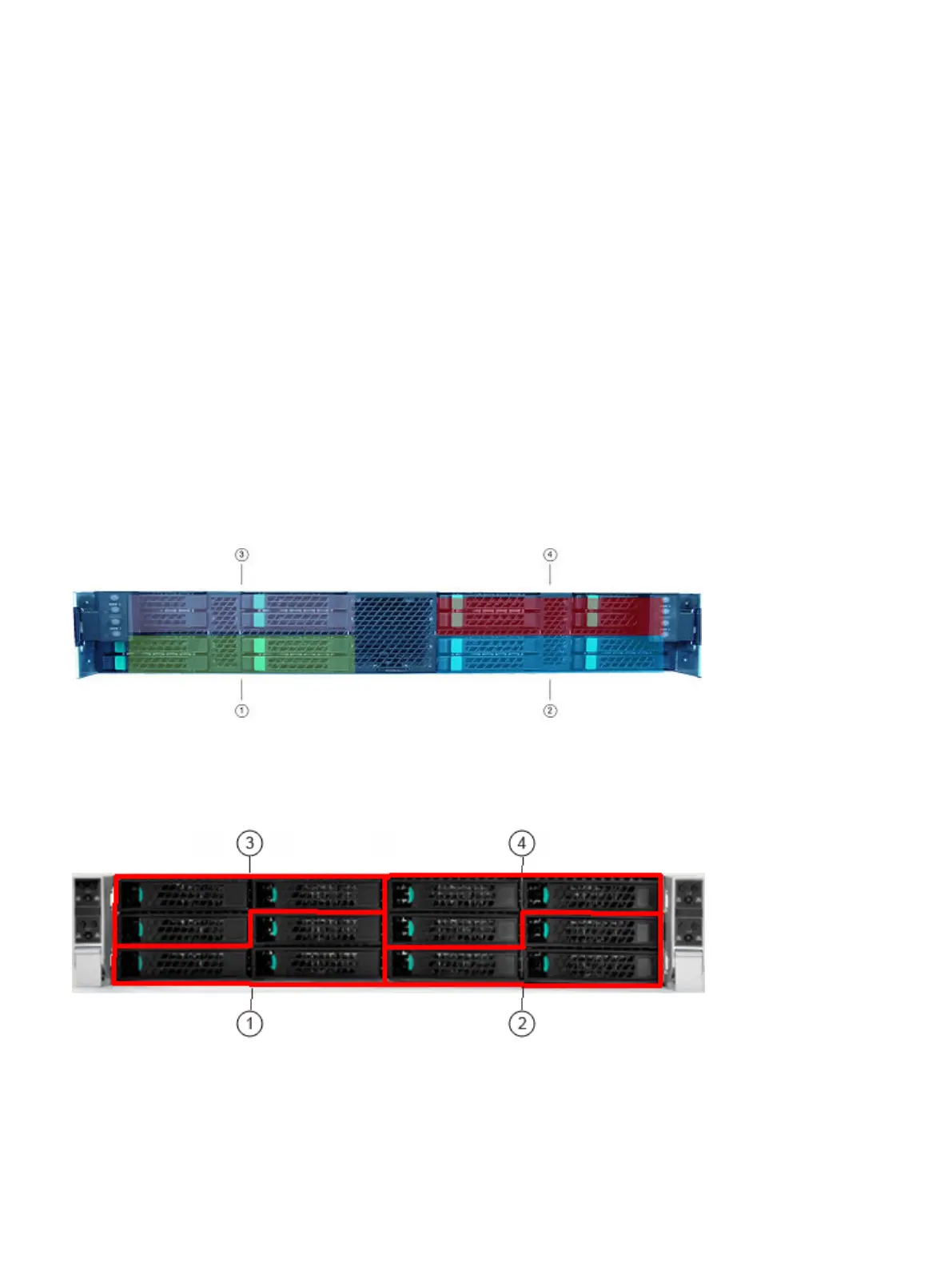

The following figure shows the server chassis front with the four nodes identified.
Figure 4 Phoenix-16 (Gen1) and Rinjin-16 (Gen2) server chassis front view
The following figure shows the server chassis front identifying the integrated disks
assigned to each node.
Figure 5
Phoenix-12 (Gen1) and Rinjin-12 (Gen2) server chassis front view
LED indicators are on the left and right side of the server front panels.
Servers
Server front views 27
