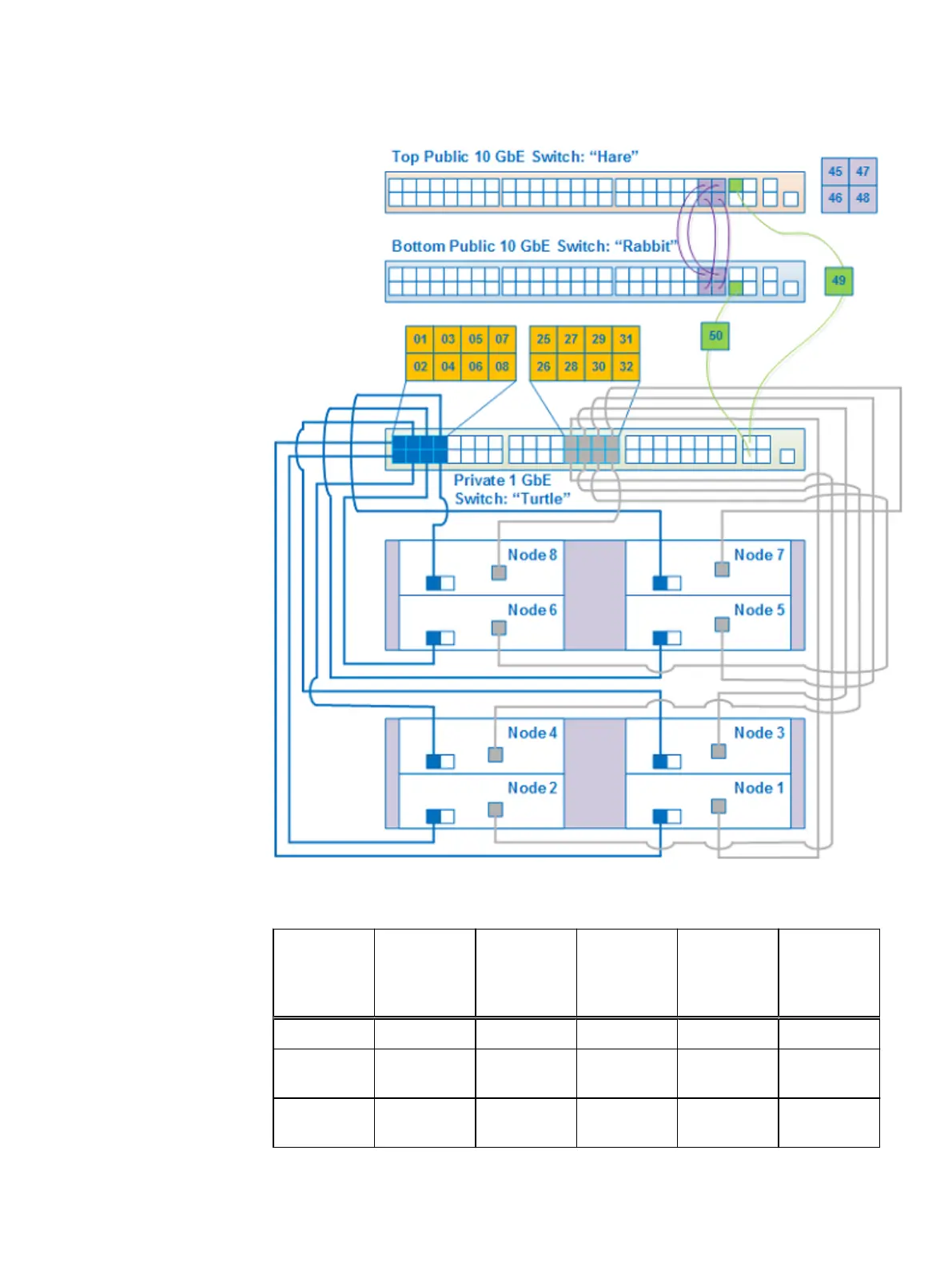

Figure 63 Private switch cabling for U- and D-Series
Table 44 U- and D-Series 1 GB private switch network cabling
Chassis /
Node
RMM Port /
Label (Grey
Cable)
Switch
Port / Label
(Grey
Cable)
eth0 Port /
Label (Blue
Cable)
Switch
Port / Label
(Blue
Cable)
Label Color
1 / Node 1 Node 01 RMM 1GB SW P25 Node01 P01 1GB SW P01 Orange
1 / Node 2 Node 02
RMM
1GB SW P26 Node02 P02 1GB SW P02 Blue
1 / Node 3 Node 03
RMM
1GB SW P27 Node03 P03 1GB SW P03 Black
Network Cabling
102 D- and U-Series Hardware Guide
