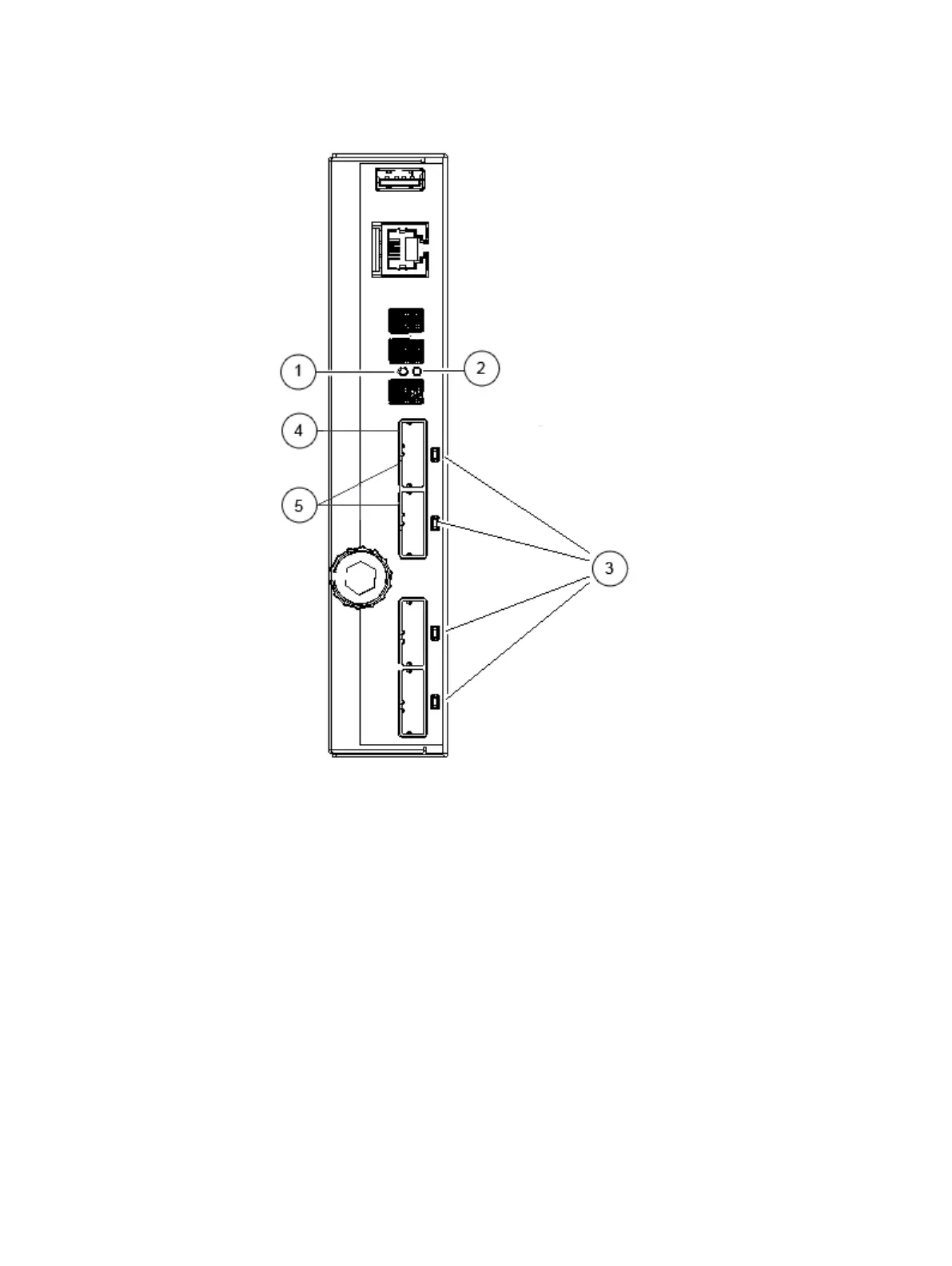

Figure 38 ICM LEDs
1. Power fault LED (amber)
2. Power LED (green)
3. Link activity LEDs (blue/green)
4. Single SAS port that is used for Gen1 hardware.
5. Two SAS ports that are used for Gen2 hardware.
Power supply
The power supply is hot-swappable. It has a built-in thumbscrew for ease of
installation and removal. Each power supply includes a fan to provide cooling to the
power supply. The power supply is an auto-ranging, power-factor-corrected, multi-
output, offline converter with its own line cord. Each supply supports a fully
configured DAE and shares load currents with the other supply. The power supplies
provide four independent power zones. Each of the hot-swappable power supplies can
deliver 1300 W at 12 V in its load-sharing highly available configuration. Control and
status are implemented throughout the I2C interface.
Disk Drives
Voyager DAE 65
