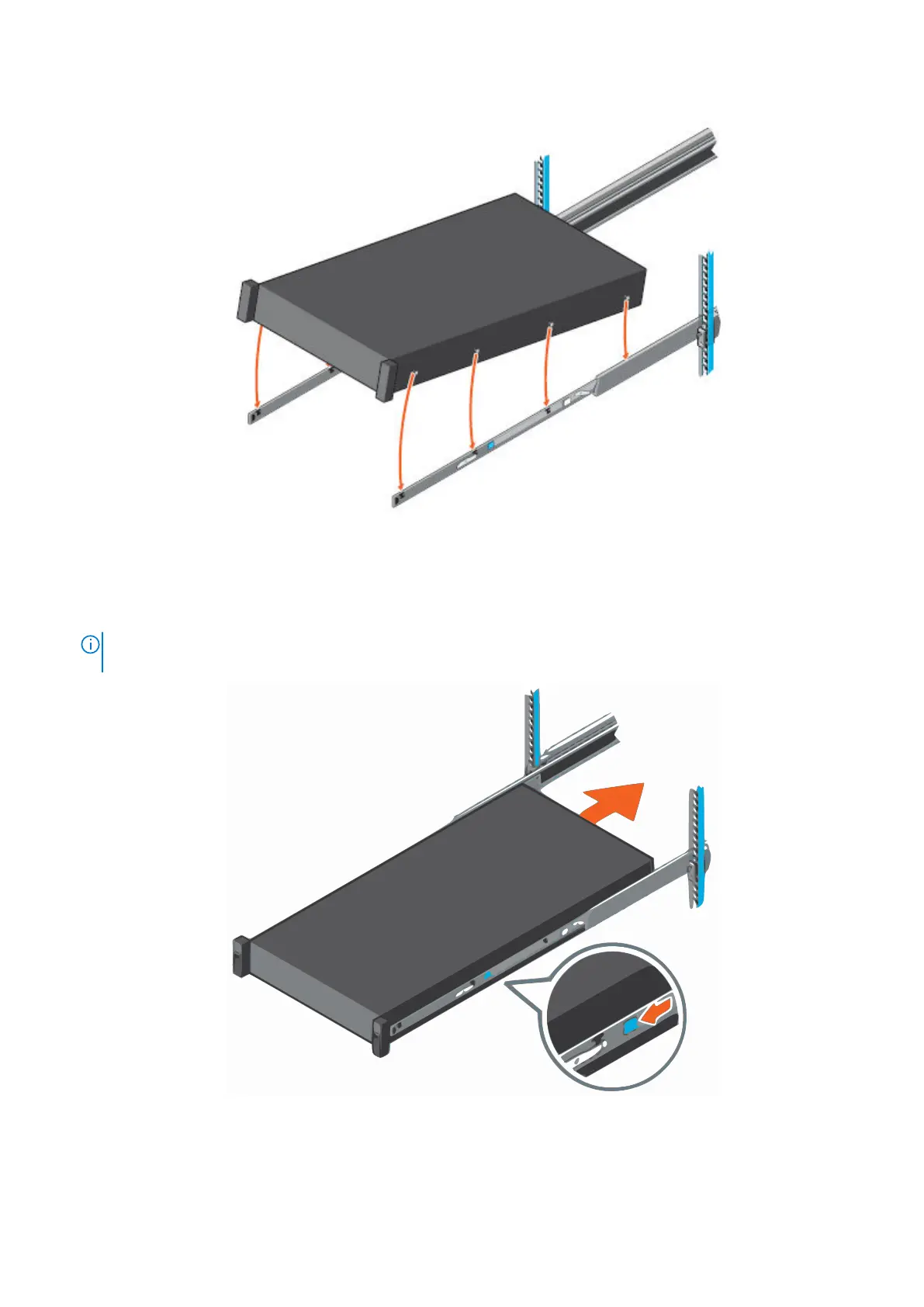

Figure 6. Install the system in the rails
4. Push the system inward until the lock levers click into place.
5. Pull the blue slide release lock tabs forward on both rails and slide the system into the cabinet. The slam latches will engage to secure
the system in the cabinet.
NOTE:
Ensure that the inner rail slides completely into the middle rail. The middle rail locks if the inner rail is not
fully engaged.
Figure 7. Slide the system into the cabinet
10
Node installation
