Install the front bezel
The procedure to install the front bezel with the LCD panel.
1. Align and insert the right end of the bezel onto the system.
2. Press the release button and fit the left end of the bezel onto the system.
3. Lock the bezel by using the key.

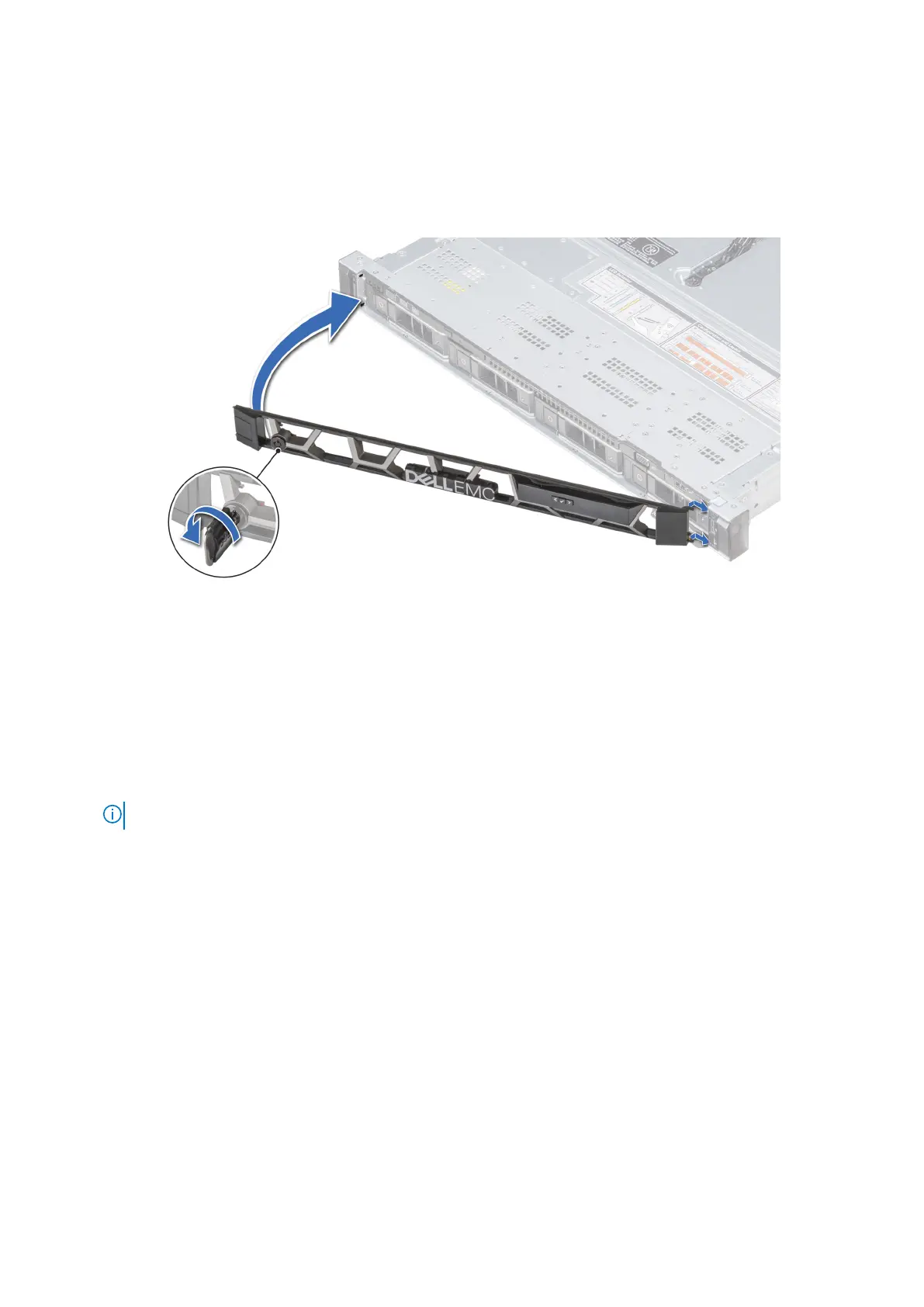

Figure 8. Installing the front bezel on 1U system
Connect and route cords and cables
1. Connect the power cables and I/O cables as described in documentation for your system.
2. If the system uses a cable management arm (CMA), install it as described in the document that is shipped with the CMA.
3. If the system does not use a CMA, use the two velcro straps to route and secure cords and cables at the rear of the system:
a. Locate the CMA bracket slots on the rear end of both the rails.
b. Bundle the cables gently, pulling them clear of the system connectors to the left and right sides.
NOTE: Ensure that there is enough space for the cables to move when you slide the system out of the rack.
c. Thread the straps through the CMA bracket slots on each side of the system to hold the cable bundles.
Node installation
11
