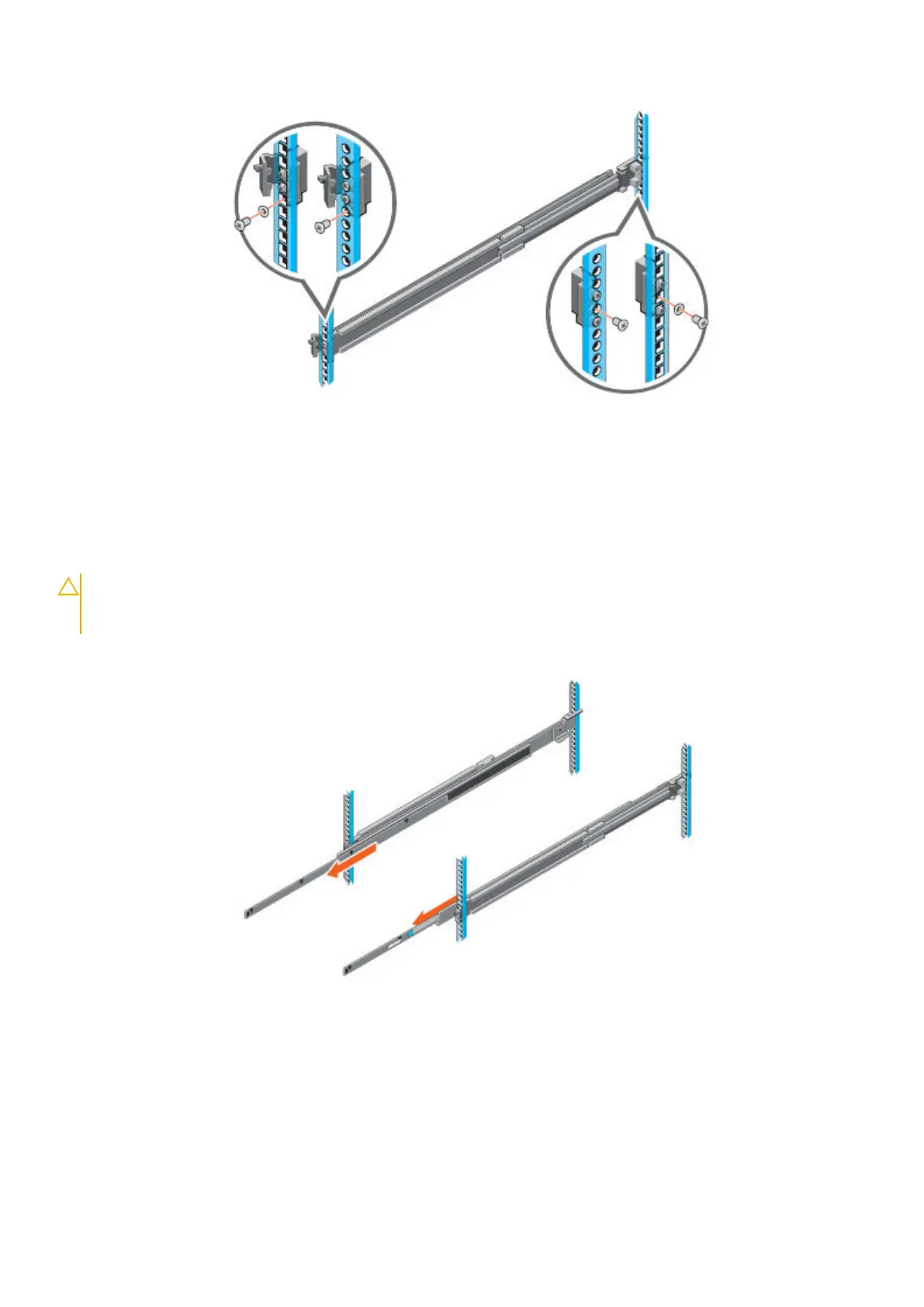

Figure 4. Installing screws
Install the system in the cabinet
This procedure is used to install the system in the cabinet.
Follow all safety guidelines.
CAUTION:
The system is heavy and should be installed in a cabinet by two people. To avoid personal injury and/or
damage to the equipment, do not attempt to install the system in a cabinet without a mechanical lift and/or help from
another person.
1. At front of the cabinet, pull the inner slide rails out of the rack until they lock into place.
Figure 5. Extend rails from the cabinet
2. Locate the rear rail standoff on each side of the system. Position the system above the rails and lower the rear rail standoffs into the
rear J-slots on the slide assemblies.
3. Rotate the system downward until all the rail standoffs are seated in the J-slots.
Node installation
9
