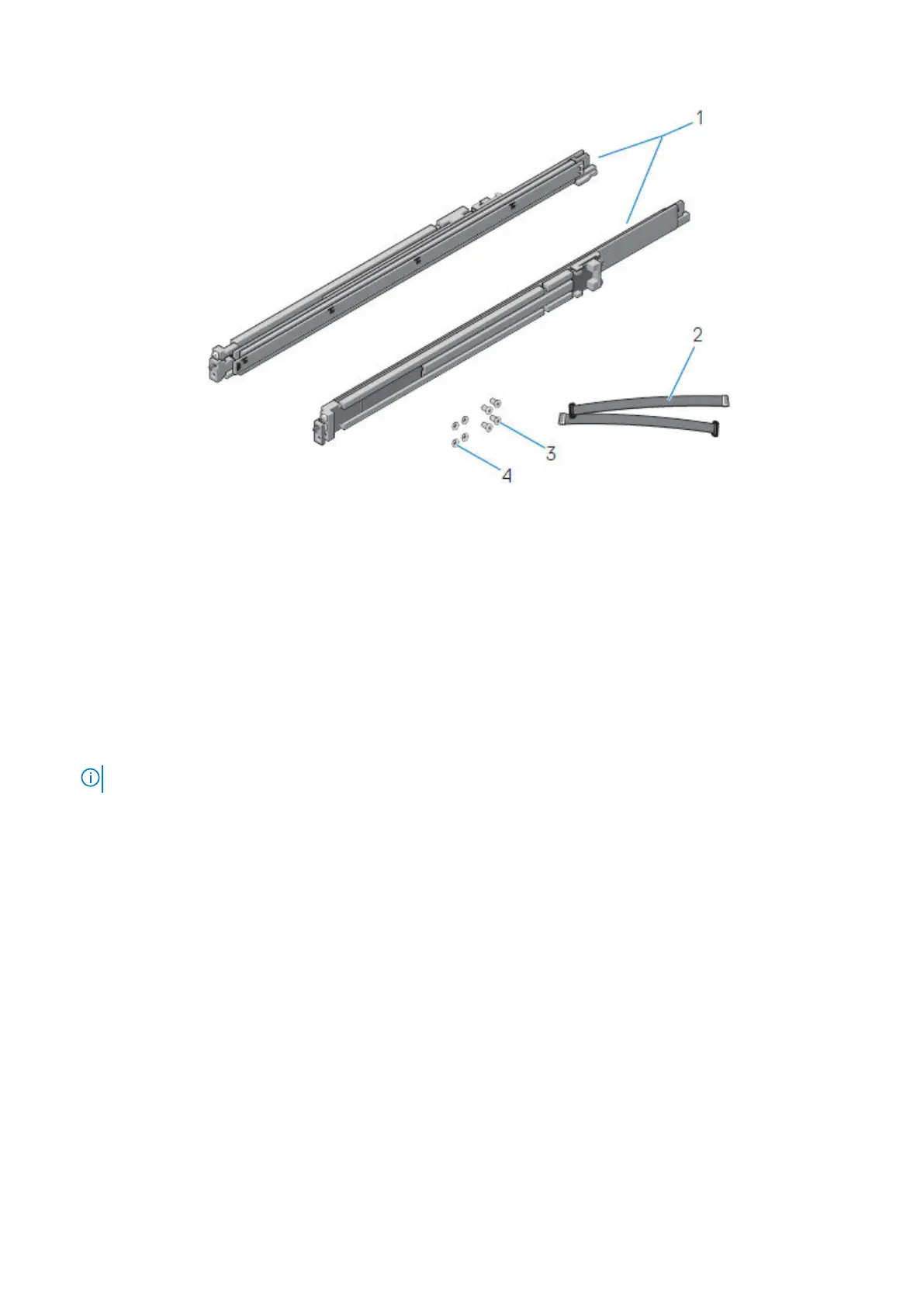

Figure 1. A10 sliding rail assembly - 1U systems
1. A10 sliding rail (2)
2. velcro strap (2)
3. screw (4)
4. washer (4)
Install the rails
The rails are labeled left and right, and cannot be interchanged. The front side of each rail is labeled Left Front or Right Front when
viewed from the cabinet front.
1. Determine where to mount the system, and use masking tape or a felt-tip pen to mark the location at the front and back of the
cabinet.
NOTE: Install the left rail assembly first.
2. Fully extend the rear sliding bracket of the rail.
3. Position the rail end piece labeled Left Front facing inward and orient the rear end piece to align with the holes on the rear cabinet
flanges.
4. Push the rail straight toward the rear of the rack until the latch locks in place.
