4.

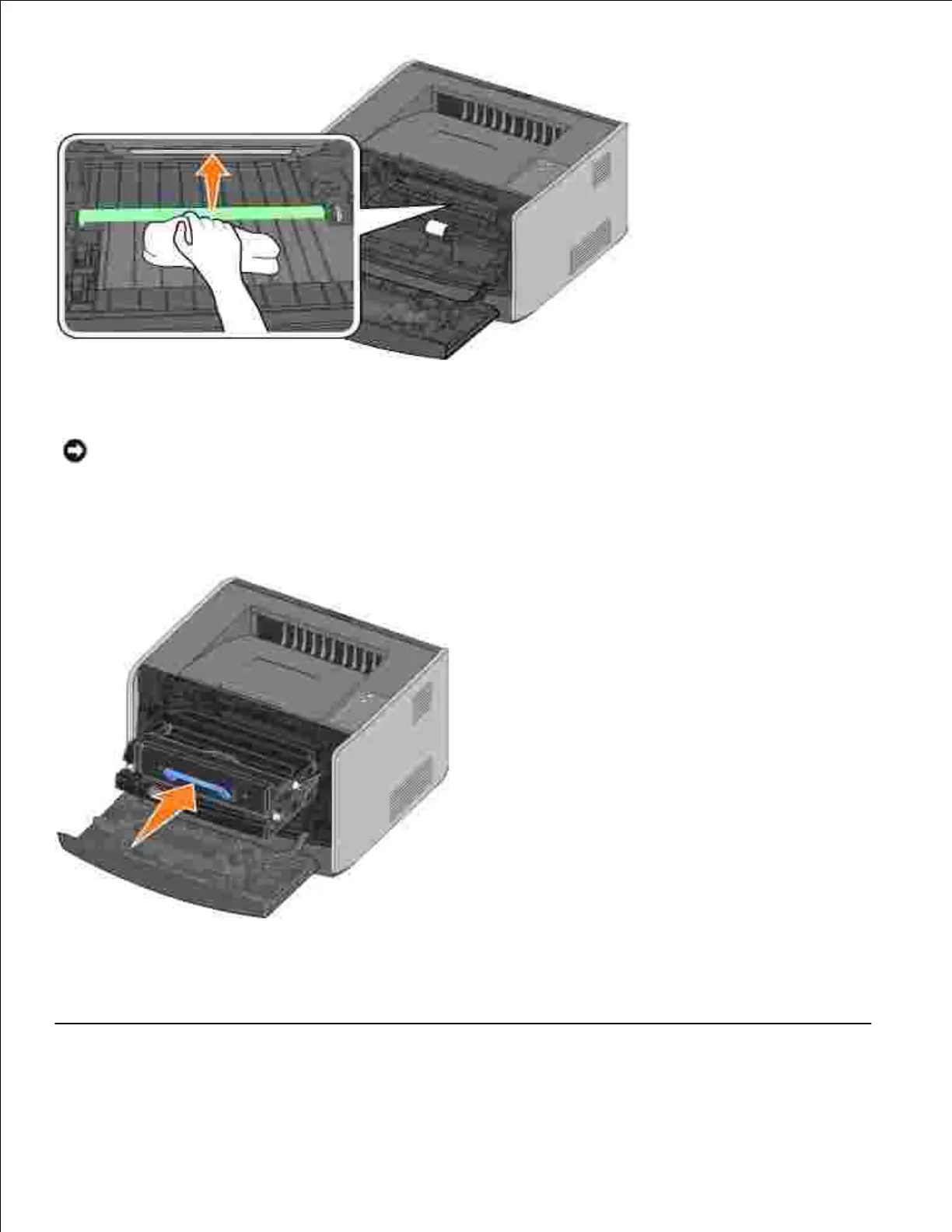

Gently wipe the printhead lens with a clean, dry, lint-free cloth.5.
NOTICE: Not using a clean, dry, lint-free cloth may result in damage to the printhead lens.
Install the toner cartridge assembly into the printer by aligning the blue arrows on the guides of the
toner cartridge assembly with the blue arrows on the tracks in the printer and pushing the toner
cartridge assembly in as far as it will go.
6.
Close the front cover.7.
Turn the printer on.8.
