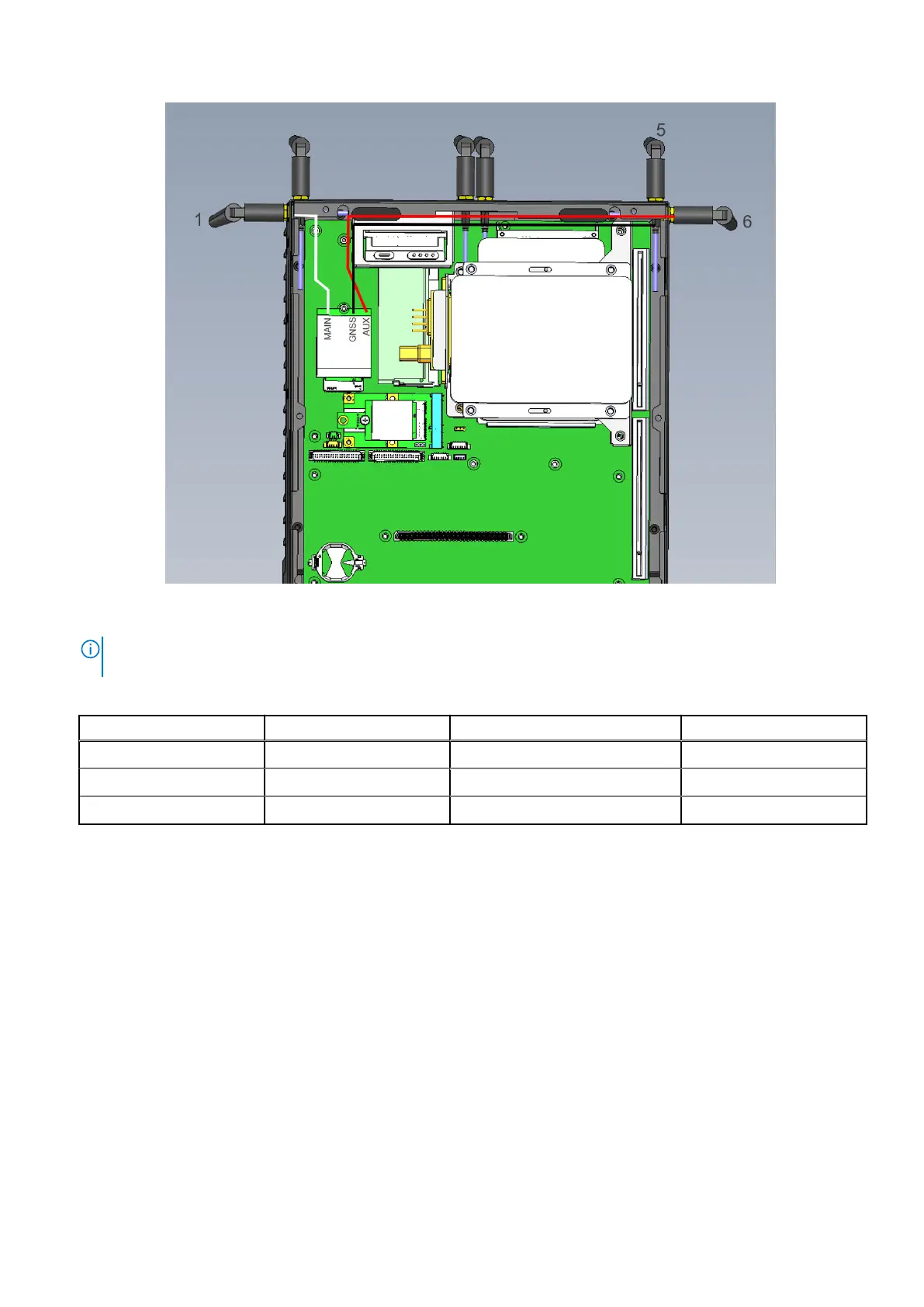

Figure 20. 4G cable routing diagram
NOTE:
The figure shows the M.2 module installed. This is for reference only, as the module will be installed in a later
step.
Table 5. 4G cable routing
Antenna Function Diagram color Cable length (cm)
ANT1 4G Main White 10
ANT5 4G GNSS Black 30
ANT6 4G Auxiliary Red 30
16 Installation procedure for 4G expansion module
