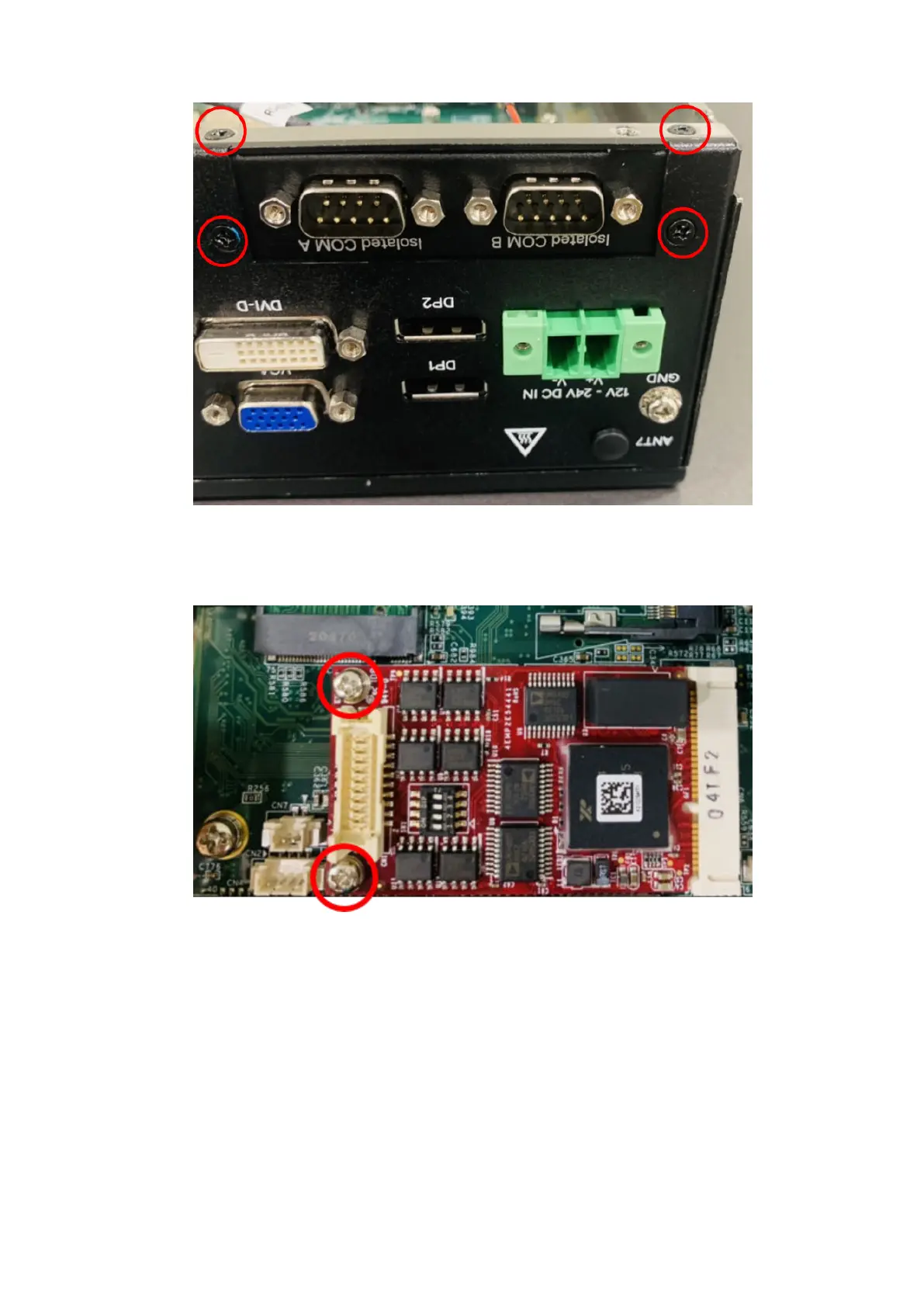

Figure 65. Isolated COM I/O panel installed on front I/O panel
11. Install the Isolated COM mPCIe module on the motherboard. Use the two M2.5 x 6L screws in the corners of the module, as
shown in the following figure.
Figure 66. Isolated COM 422/485 mPCIe installed on motherboard
42
Installation procedure for 2x isolated COM 422/485 or 232 uFM module
