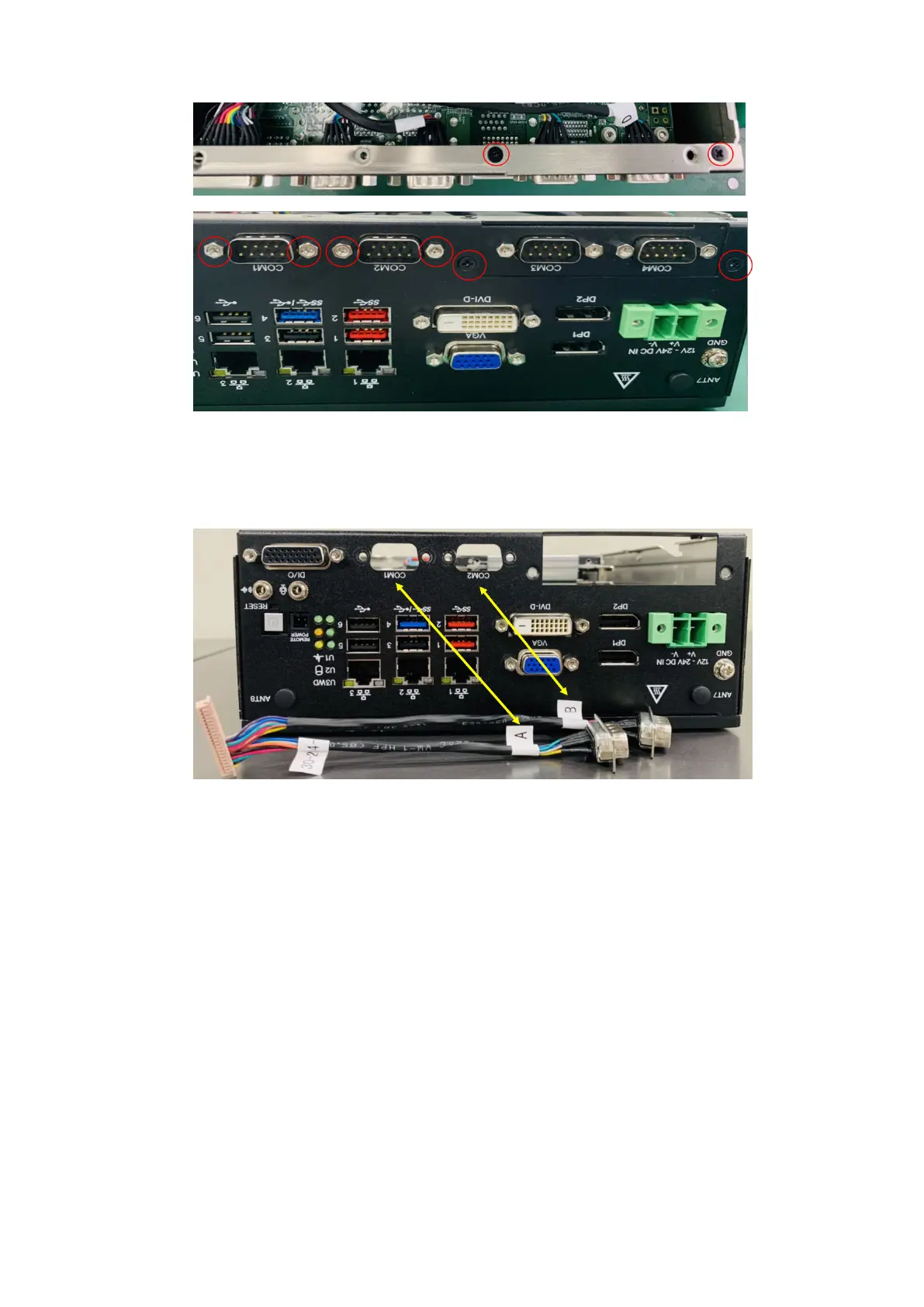

Figure 78. I/O panel screw and standoff locations
8. Install the new dual-port COM cable (included). Connect to the front I/O panel with the port labeled A to COM1 and B
to COM2, secure the ports to the front panel with four H4 standoffs, then connect the other end of the cable to the
motherboard header.
Figure 79. Connect new COM ports to I/O panel
Installation procedure for 2x GbE with PoE uFM module
49
