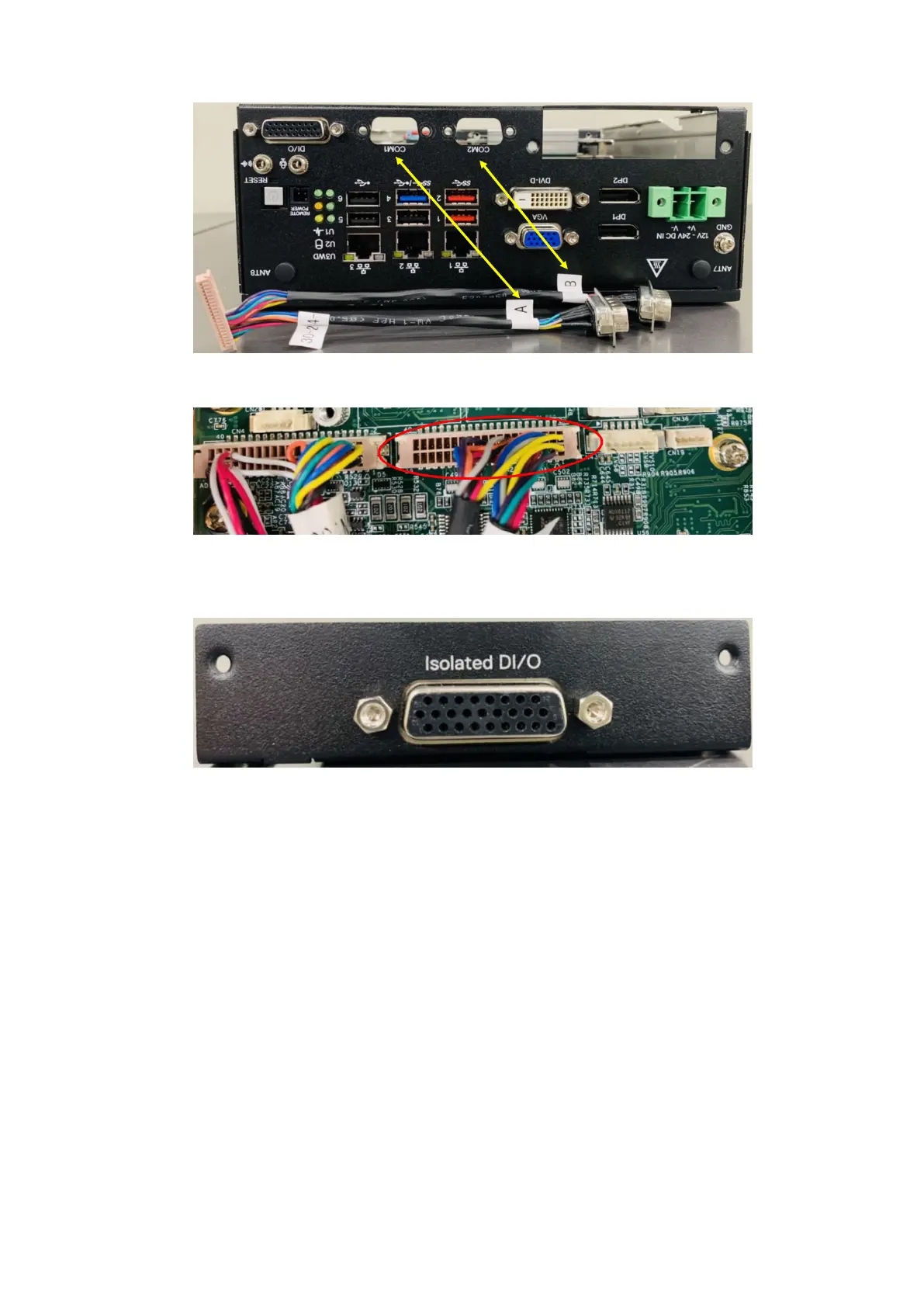

Figure 127. Connect new COM ports to I/O panel
Figure 128. Connect dual-port COM cable to motherboard header
5. Use two H4 standoffs to secure the DI/O uFM module to the DI/O front panel, as shown in the following figure.
Figure 129. DI/O port installed on DI/O front panel
6. Install the bracket on the motherboard, as shown in the following figure.
Installation procedure for 8x DI/O uFM module
