8 Your Dell Projector
About Your Projector
CAUTION: Safety Instructions
1
Do not use the projector near appliances that generate a lot of heat.
2
Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and the projector will automatically shut down.
3
Ensure that the projector is mounted in a well-ventilated area.
4
Do not block the ventilation slots and openings on the projector.
5
Ensure the projector operates between ambient temperatures (5 ºC to 35 ºC).

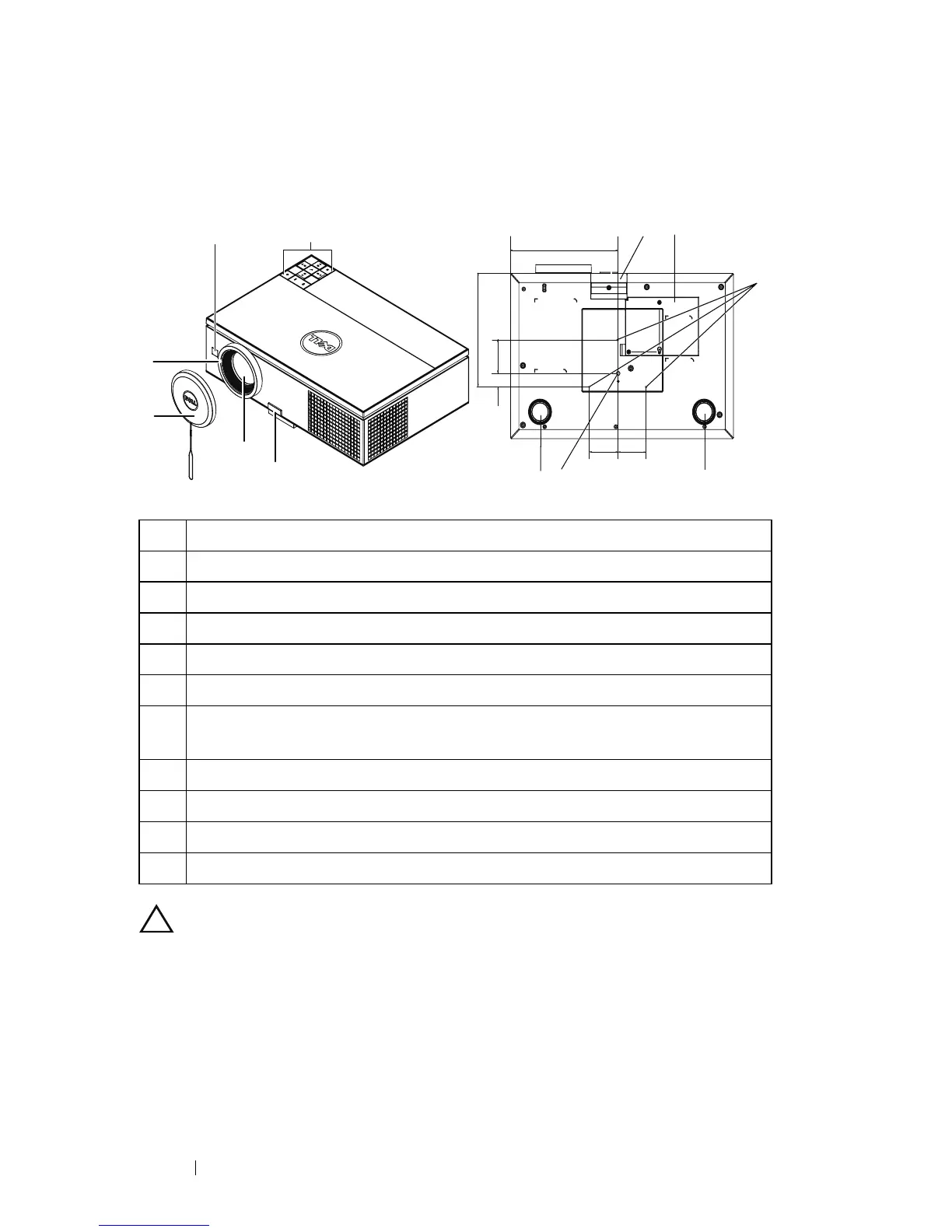

1 Control panel
2 IR receivers
3 Focus ring
4 Lens
5 Elevator button for height adjustments
6 Lens cap
7 Mounting holes for ceiling mount: Screw hole M3 x 6.5 mm depth.
Recommended torque <8 kgf-cm
8 Mounting hole for tripod: Insert nut 1/4"*20 UNC
9 Lamp cover
10 Tilt adjustment wheel
11 Elevator foot
1
5
2
4
3
6
Top View
Bottom View
7
10 10
8
11
9
55.00
55.00
180.50
73.50
8.65
202.50
