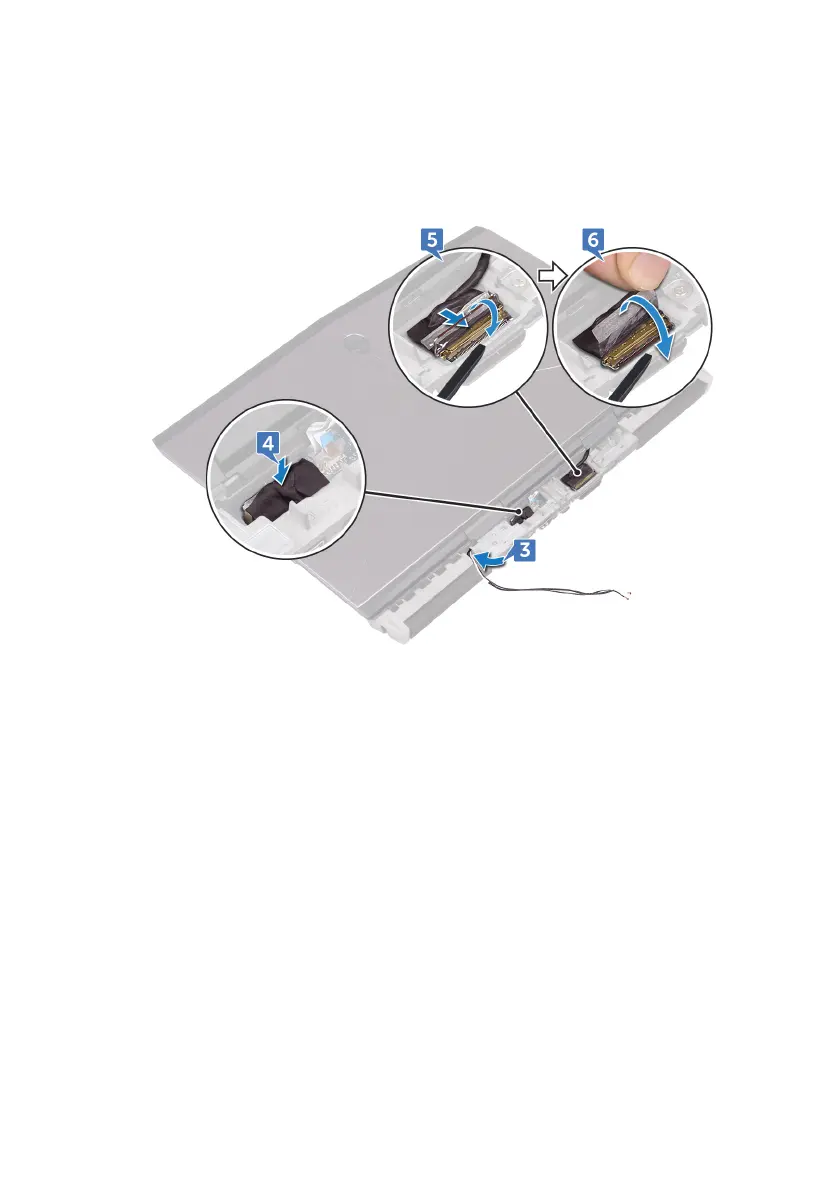

4 Connect the logo-board cable to the system board.

5 Slide the display cable into the connector on the system board and close the

latch to secure the cable.

6 Adhere the tape that secures the display cable to the system board.

7 Turn the computer over.

114
