Dell Alienware 15 R4 - Page 30

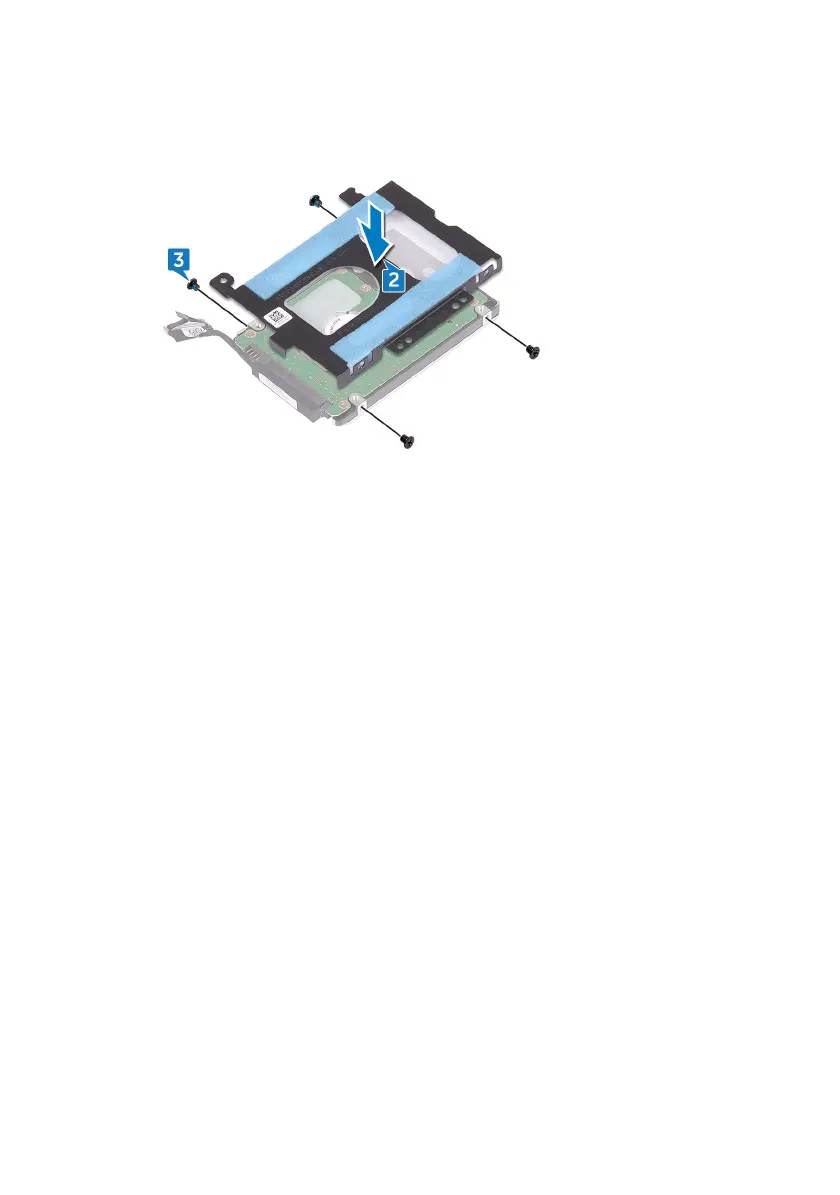

3 Replace the four screws (M3x3) that secure the hard-drive bracket to the
hard-drive assembly.
4 Align the screw holes on the hard-drive assembly with the screw holes on the
computer base.
5 Replace the three screws (M2.5x8) that secure the hard-drive assembly to the
computer base.
30
