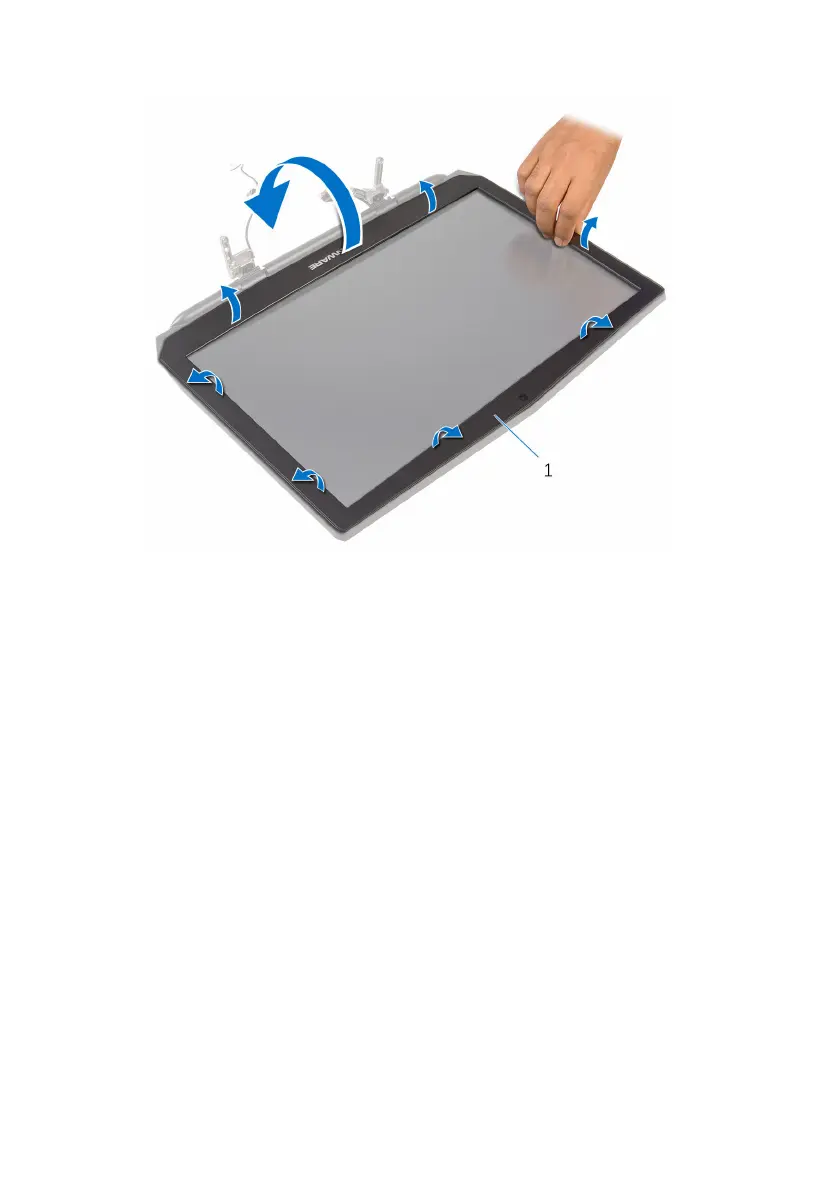

2 Carefully lift the display bezel and turn it over.

1 display bezel

3 Lift the latches and disconnect the display-board cables from the logo

board.

101
